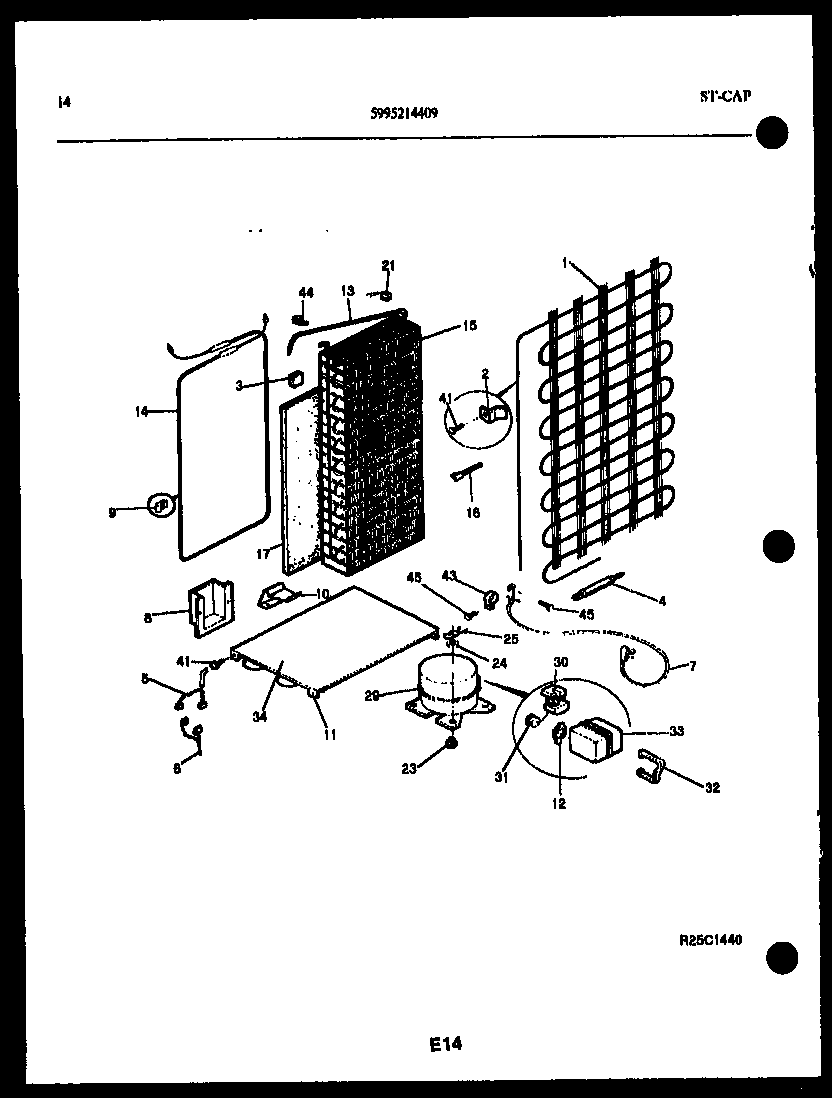

FGI220JN1D 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

FGI220JN1D 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FGI220JN1D 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*23060218843801 Frigidaire Refrigerator Screw
*23060WCI 5308009619
*23060WCI 5300189379
1WCI 5303007521
2BRACKET, MOUNTIN, CONDENSER, (4)
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3WCI 5308000828
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 5303015098
6WCI 5308009616
7CORD-ELECTRIC POWER
8WCI 5303001197
9WCI 5308002777
10WCI 5308002780
11WCI 5308002782
12CLIP-OVERLOAD
13WCI 5308017565
14WCI 5303007568
15WCI 5303916605
15ATUBE-INLET (NOT ILLUSTRATED)
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303001235
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
29COMPRESSOR-W/ELECTRICALS
30216594300 Frigidaire Refrigerator Starter
31WCI 5303210976
325303006412 Frigidaire Refrigerator Cover Mounting Strap
34WCI 5308017112
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
