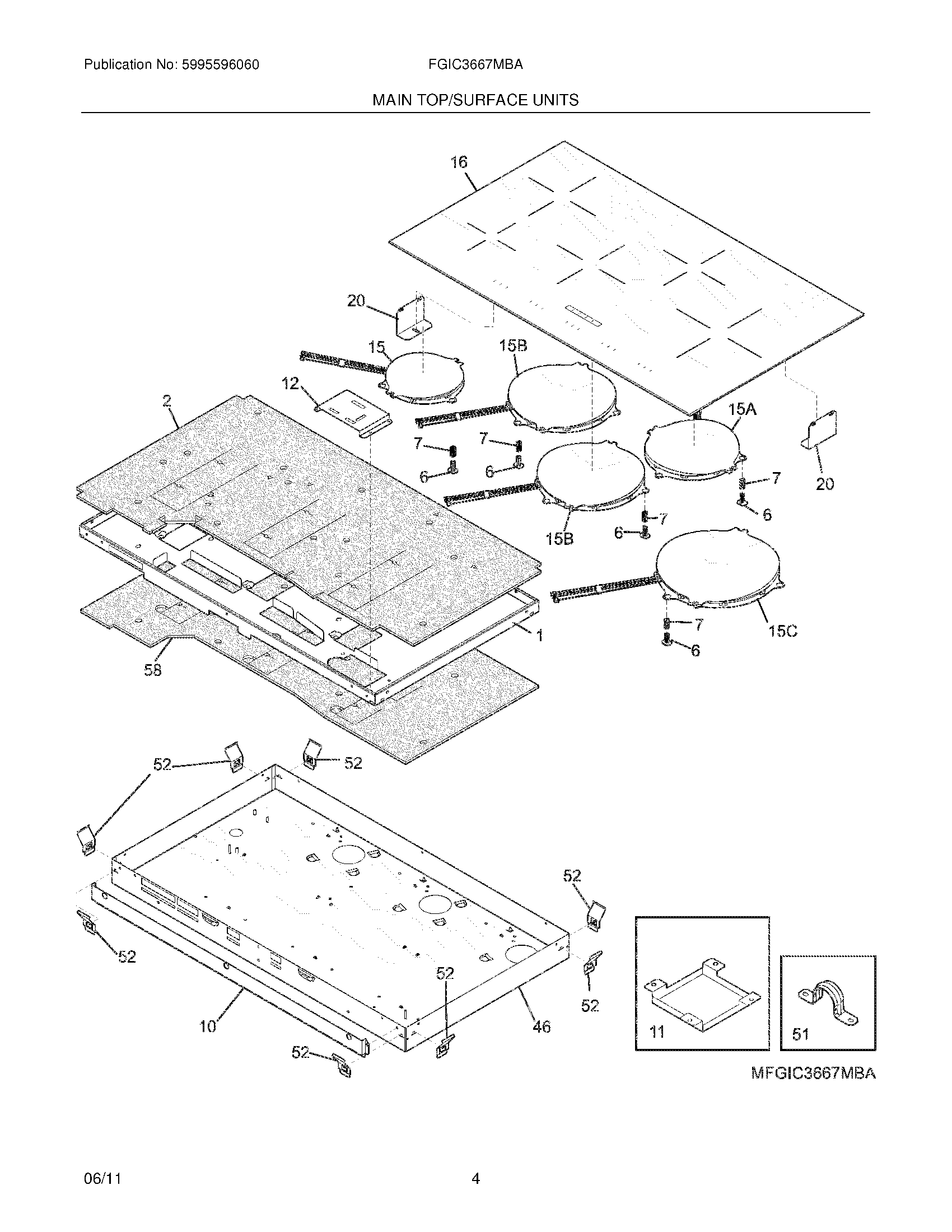

FGIC3667MBA 05 – MAINTOP/SURFACE UNITS

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NI73218-3010 Frigidaire Foam Tape
NI5304424462 Frigidaire Foam Tape
NINUT, KEPS, 8-32, (2)
NI5304462994 Frigidaire Oven Screw
NI5303307980 Frigidaire Oven Screw
NISCREW, 8 X 5/8, SPARK MODULE
NI5305511218 Frigidaire Ceramabryte C12 18O
1PANEL, MOUNTING
2INSULATION, CARRIER PANEL
6318405000 Frigidaire Oven Pin
7318534300 Frigidaire Spring
10DEFLECTOR, OUTER
11DEFLECTOR, AIR
12SHIELD, EMI
15318329241 Frigidaire Oven Element
15A318329242 Frigidaire Oven Element
15C318329244 Frigidaire Oven Element
15B318329243 Frigidaire Oven Heating Element
16MAIN TOP ASSY, GLASS/STEEL, BLACK, COMPLETE, W/CNTRL BOARD
20WCI 318121915
46WCI 318225458
51318389600 Frigidaire Bracket Assembly
52318560900 Frigidaire Oven Spacer
58INSULATION, SERVICE PANEL
