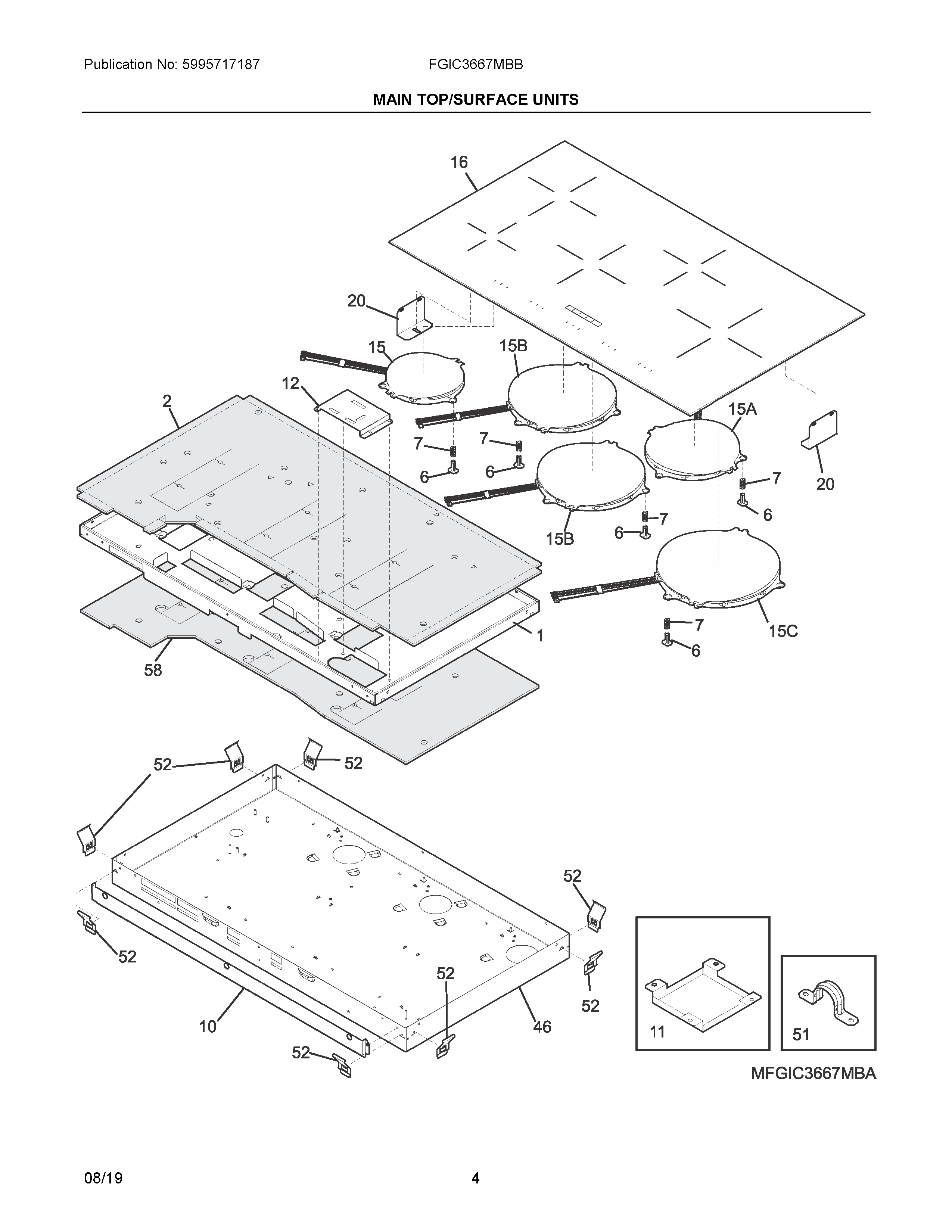

FGIC3667MBB 03 – MAIN TOP/SURFACE UNITS

Products

Position	Product
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	73218-3010 Frigidaire Foam Tape
NI	5304424462 Frigidaire Foam Tape
NI	NUT, KEPS, 8-32, (2)
NI	5304462994 Frigidaire Oven Screw
NI	5303307980 Frigidaire Oven Screw
NI	SCREW, 8 X 5/8, SPARK MODULE
NI	5305511218 Frigidaire Ceramabryte C12 18O
1	PANEL, MOUNTING
2	INSULATION, CARRIER PANEL
6	318405000 Frigidaire Oven Pin
7	318534300 Frigidaire Spring
10	DEFLECTOR, OUTER
11	DEFLECTOR, AIR
12	SHIELD, EMI
15	318329241 Frigidaire Oven Element
15A	318329242 Frigidaire Oven Element
15C	318329244 Frigidaire Oven Element
15B	318329243 Frigidaire Oven Heating Element
16	MAIN TOP ASSY, GLASS/STEEL, BLACK, COMPLETE, W/CNTRL BOARD
20	WCI 318121915
46	WCI 318225458
51	318389600 Frigidaire Bracket Assembly
52	318560900 Frigidaire Oven Spacer
58	INSULATION, SERVICE PANEL
