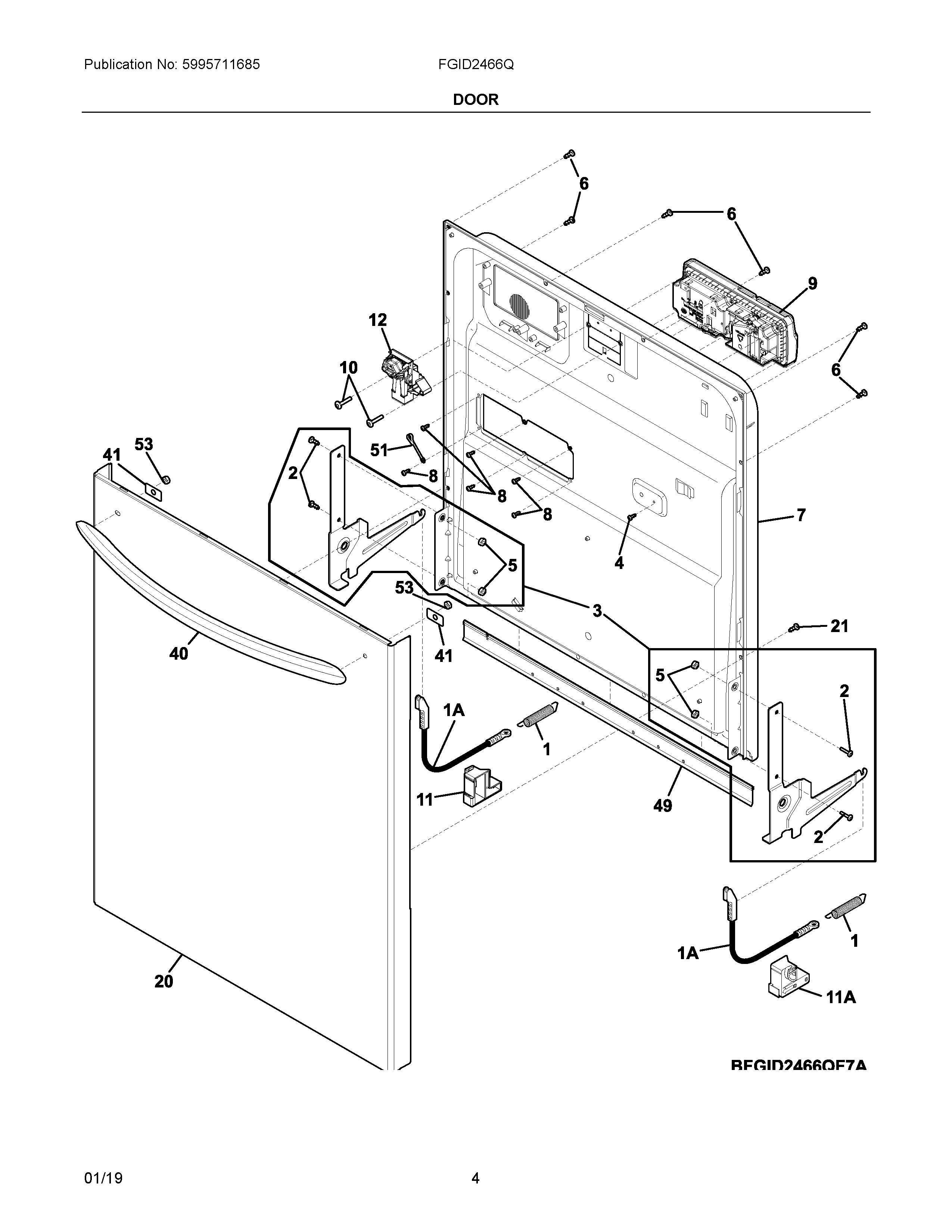

FGID2466QB7A 03 – DOOR

Products

Position	Product
NI	154686401 Frigidaire Dishwasher Bearing
NIA	5304525214 Frigidaire Dishwasher Shield
NI	INSULATION,DOOR
NI	154647101 Frigidaire Dishwasher Pin Hinge
1	154579101 Frigidaire Dishwasher Door Spring
1A	154756401 Frigidaire Hinge Cable
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	5304513274 Frigidaire Dishwasher Counterbalance Arm Left Right
4	808326801 Frigidaire Dishwasher Screw
5	5303013272 Frigidaire Oven Nut
6	154783101 Frigidaire Dishwasher Screw
7	5304520007 Frigidaire Dishwasher Liner Assembly
8	154294701 Frigidaire Dishwasher Screw
9	5304506521 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
11A	154579202 Frigidaire Dishwasher Pulley
11	154579201 Frigidaire Dishwasher Pulley
12	5304525218 Frigidaire Door Latch Assembly
20	807278502 Frigidaire Dishwasher Door Assembly
21	154754701 Frigidaire Dishwasher Screw
40	WCI 154724903
41	154760101 Frigidaire Dishwasher Bracket
49	5304500204 Frigidaire Gasket Bottom Door Seal
51	WCI 154320301
53	154425001 Frigidaire Dishwasher Nut
