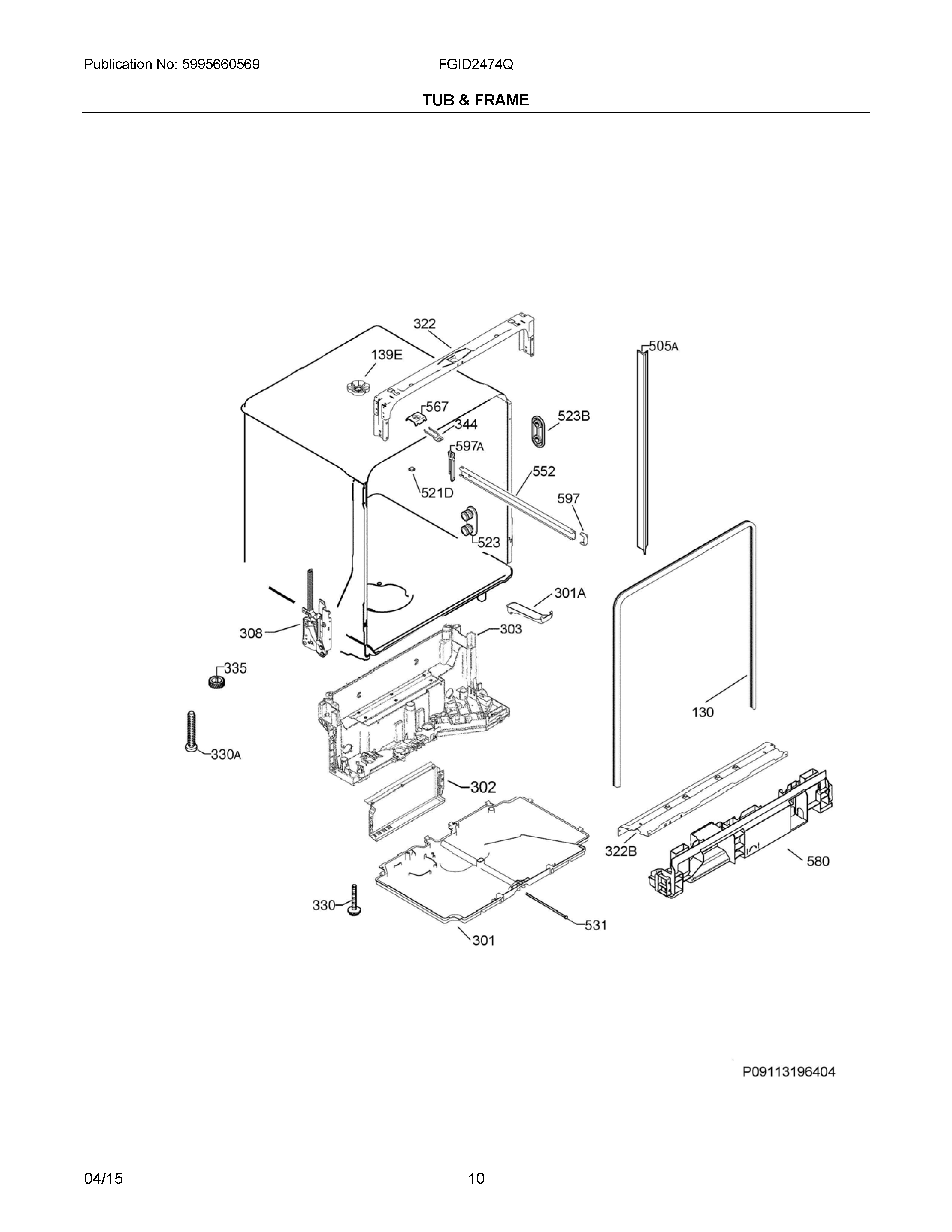

FGID2474QF4B 06 – TUB & FRAME

FGID2474QF4B 06 – TUB & FRAME

Written by

in

FGID2474QF4B 06 – TUB & FRAME

Products

PositionProduct
NI405531515 Frigidaire Dishwasher Mounting Kit
NI405530687 Frigidaire Screw
NI117427700 Frigidaire Dishwasher Clip
130117158011 Frigidaire Dishwasher Door Seal Gasket
139E807240301 Frigidaire Dishwasher Nut
301A405513837 Frigidaire Dishwasher OVERFlow Hose
301807104203 Frigidaire Dishwasher Tray
302A00075002 Frigidaire Dishwasher Cover
303WCI 807104103
308405517992 Frigidaire Dishwasher Hinge Assembly
322B117156109 Frigidaire Cross Piece
322A00166805 Frigidaire Dishwasher Crossbar
330A117363200 Frigidaire Dishwasher Foot
330117368700 Frigidaire Dishwasher Foot
335152714200 Frigidaire Dishwasher COG
344152234405 Frigidaire Dishwasher Latch
505A808470401 Frigidaire Dishwasher Trim
521D152657610 Frigidaire PLUG
523B152122010 Frigidaire Dishwasher Holder
523405526079 Frigidaire Dishwasher Roller Assembly
531A00021003 Frigidaire Dishwasher Screw
552A00212701 Frigidaire Dishwasher Rail
567152323603 Frigidaire Dishwasher Bracket
580WCI 807104305
597A646123406 Frigidaire Dishwasher Stop
597152047941 Frigidaire Dishwasher STOP
