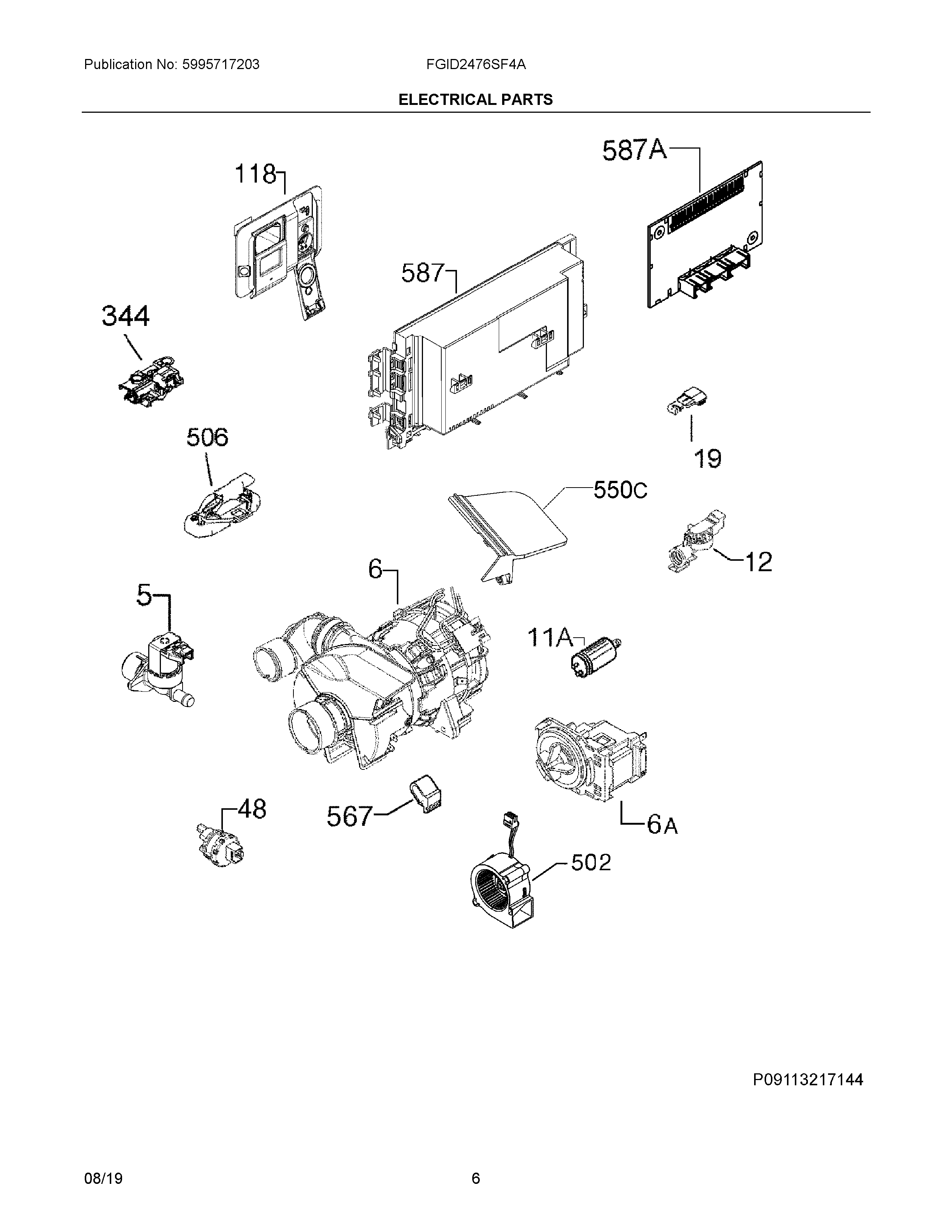

FGID2476SF4A 04 – ELECTRICAL PARTS

FGID2476SF4A 04 – ELECTRICAL PARTS

Written by

in

FGID2476SF4A 04 – ELECTRICAL PARTS

Products

PositionProduct
NIA00233006 Frigidaire Dishwasher Harness
NIA05193103 Frigidaire Dishwasher Harness
NI807556302 Frigidaire Dishwasher Harness
5807445905 Frigidaire Dishwasher Valve
6AA00044305 Frigidaire Dishwasher Drain Pump
65304514365 Frigidaire Dishwasher Water Pump
11AA00194401 Frigidaire Dishwasher Capacitor
12A00055408 Frigidaire Dishwasher Switch
19A00666009 Frigidaire Dishwasher Lamp
48A00040106 Frigidaire Dishwasher Sensor
118A00130341 Frigidaire Dishwasher Dispenser Assembly
344111315040 Frigidaire Dishwasher Door Lock
502A05660402 Frigidaire Dishwasher Assembly-Blower
506A00056506 Frigidaire Switch Assembly
550C808089001 Frigidaire Dishwasher Cover
567117193401 Frigidaire Dishwasher Buffer
587AA06115601 Frigidaire Dishwasher Control Board
5875304520661 Frigidaire Dishwasher Control Assembly
