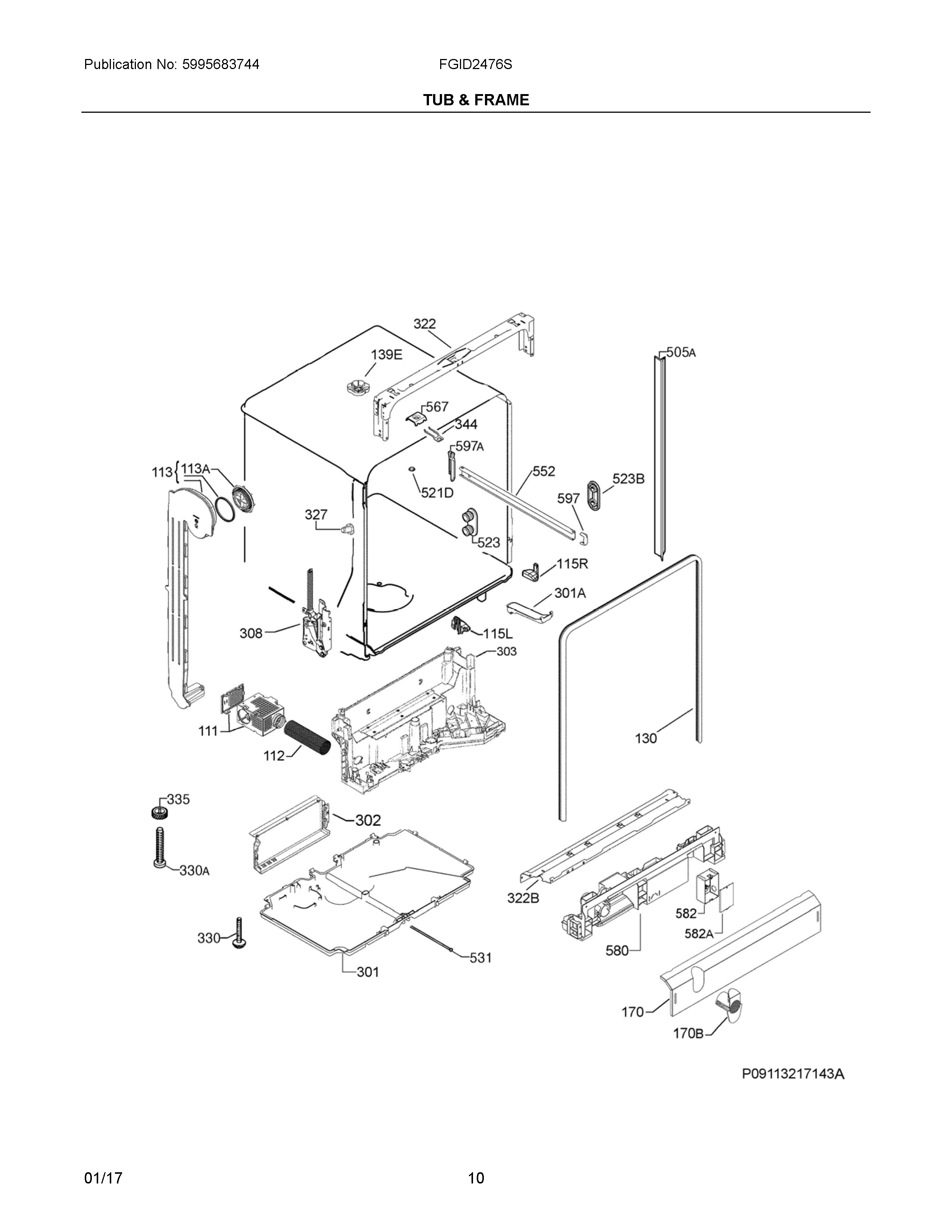

FGID2476SW0A 06 – TUB & FRAME

Products

Position	Product
NI	405530687 Frigidaire Screw
111	5304509259 Frigidaire Dishwasher Housing Assembly
112	WCI A05660503
113	405537600 Frigidaire Dishwasher Air Duct
113A	A06525801 Frigidaire Dishwasher Outlet
115L	BRIDGE, LOWER BASKET, LEFT
115R	BRIDGE, LOWER BASKET, RIGHT
130	117158011 Frigidaire Dishwasher Door Seal Gasket
139E	807240301 Frigidaire Dishwasher Nut
170	WCI 405538321
170B	WCI A05936002
301	807104203 Frigidaire Dishwasher Tray
301A	405513837 Frigidaire Dishwasher OVERFlow Hose
302	A00075002 Frigidaire Dishwasher Cover
303	A01868606 Frigidaire Dishwasher Base Assembly
308	405517992 Frigidaire Dishwasher Hinge Assembly
322B	117156109 Frigidaire Cross Piece
322	A00166801 Frigidaire Dishwasher Crossbar
327	117427700 Frigidaire Dishwasher Clip
330A	117363200 Frigidaire Dishwasher Foot
330	117368700 Frigidaire Dishwasher Foot
335	152714200 Frigidaire Dishwasher COG
344	152234405 Frigidaire Dishwasher Latch
505A	808470401 Frigidaire Dishwasher Trim
521D	152657610 Frigidaire PLUG
523B	152122010 Frigidaire Dishwasher Holder
523	405526079 Frigidaire Dishwasher Roller Assembly
531	A00021003 Frigidaire Dishwasher Screw
552	A00212701 Frigidaire Dishwasher Rail
567	152323603 Frigidaire Dishwasher Bracket
580	COVER, BOTTOM, FRONT
582A	A03337103 Frigidaire Dishwasher Cover Assembly
582	A03987801 Frigidaire Dishwasher Box
597A	646123406 Frigidaire Dishwasher Stop
597	152047941 Frigidaire Dishwasher STOP
