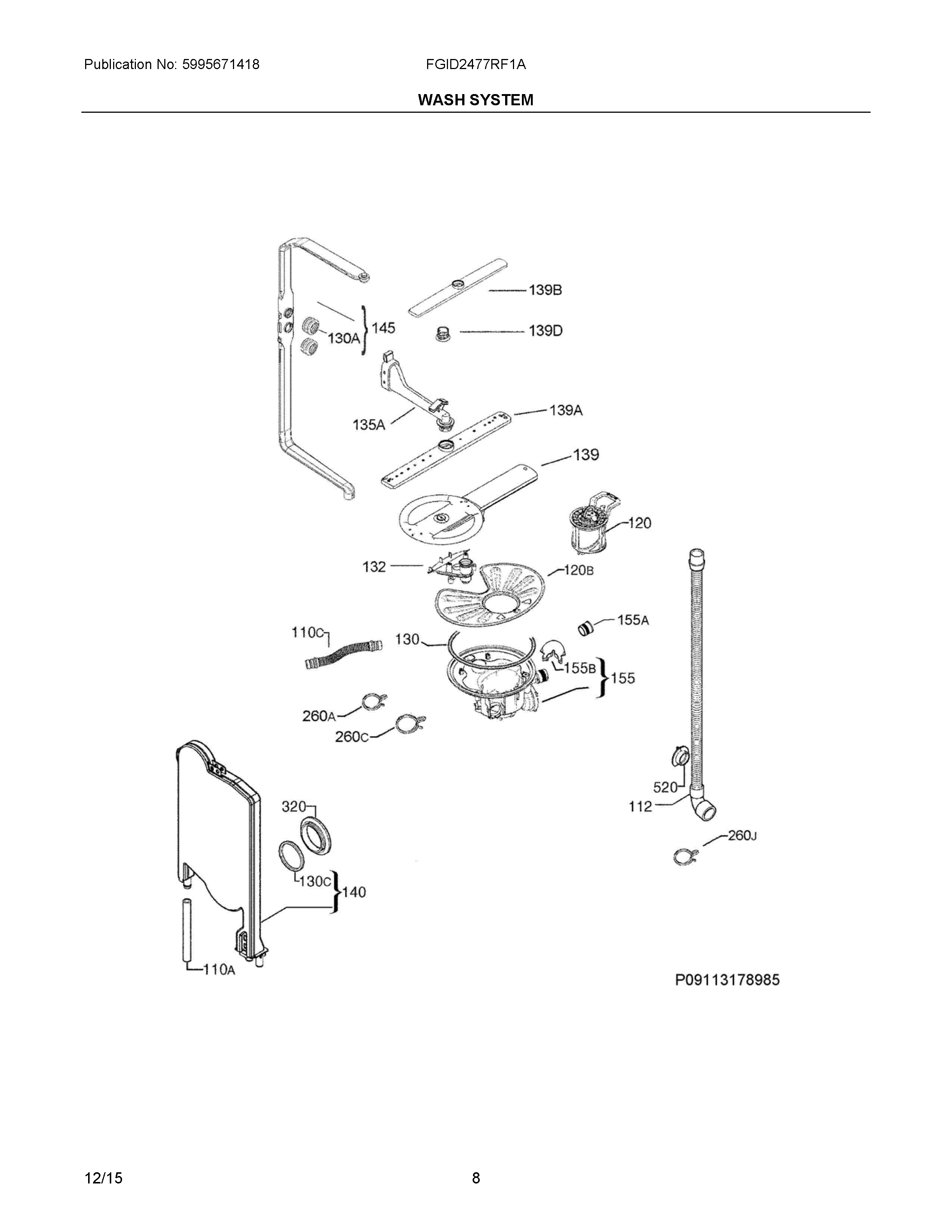

FGID2477RF1A 05 – WASH SYSTEM

Products

Position	Product
NI	SCREW, SUMP, 4 X 15, (4), & SPRAY ARM
110C	A00005903 Frigidaire Dishwasher Hose
110A	807526501 Frigidaire Dishwasher Tubing Assembly
112	807032601 Frigidaire Dishwasher Hose
120	A00201409 Frigidaire Dishwasher Drain Filter
120B	WCI 111920904
130	111918600 Frigidaire Dishwasher O-Ring
130A	A00045701 Frigidaire Dishwasher Seal
130C	WCI 5065923100
132	A11243702 Frigidaire Dishwasher Spray Arm
135A	A00060305 Frigidaire Dishwasher Duct Assembly
139	111920868 Frigidaire Lower Wash Arm
139A	808321102 Frigidaire Dishwasher Spray Arm
139D	807035801 Frigidaire Wash Arm Bearing
139B	807382106 Frigidaire Dishwasher Upper Spray Arm
140	WCI 117048176
145	A00023201 Frigidaire Dishwasher Spray Arm Manifold
155	A00049419 Frigidaire Dishwasher Sump Assembly
155B	111917701 Frigidaire Dishwasher Screen
155A	A00053601 Frigidaire Dishwasher Flapper
260J	807868901 Frigidaire Dishwasher Clamp
260C	807868903 Frigidaire Dishwasher Clamp
260A	807868902 Frigidaire Dishwasher Clamp
320	152627221 Frigidaire Dishwasher GRILL
520	807201901 Frigidaire Dishwasher Flange
