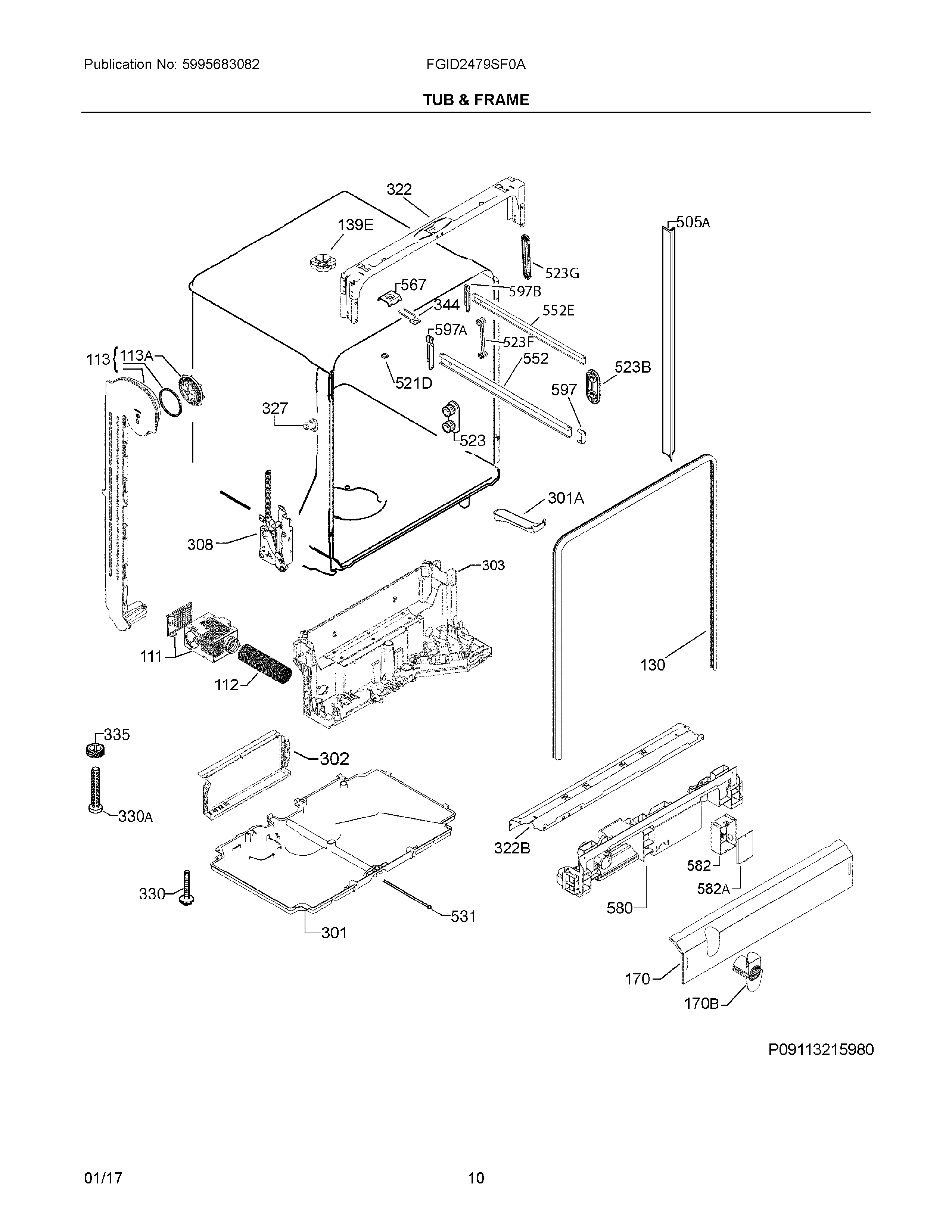

FGID2479SF0A 06 – TUB & FRAME

FGID2479SF0A 06 – TUB & FRAME

Written by

in

FGID2479SF0A 06 – TUB & FRAME

Products

PositionProduct
NI405531515 Frigidaire Dishwasher Mounting Kit
NI405530687 Frigidaire Screw
1115304509259 Frigidaire Dishwasher Housing Assembly
112HOSE, AIR CHANNEL
113AA06525801 Frigidaire Dishwasher Outlet
113405537600 Frigidaire Dishwasher Air Duct
130117158011 Frigidaire Dishwasher Door Seal Gasket
139E807240301 Frigidaire Dishwasher Nut
170405537597 Frigidaire Dishwasher Insulation Kit
170BA05936001 Frigidaire Dishwasher Outlet
301A405513837 Frigidaire Dishwasher OVERFlow Hose
301807104203 Frigidaire Dishwasher Tray
302A00075002 Frigidaire Dishwasher Cover
303A01868606 Frigidaire Dishwasher Base Assembly
308405517992 Frigidaire Dishwasher Hinge Assembly
322A00166801 Frigidaire Dishwasher Crossbar
322B117156109 Frigidaire Cross Piece
327117427700 Frigidaire Dishwasher Clip
330117368700 Frigidaire Dishwasher Foot
330A117363200 Frigidaire Dishwasher Foot
335152714200 Frigidaire Dishwasher COG
344152234405 Frigidaire Dishwasher Latch
505A808470401 Frigidaire Dishwasher Trim
521D152657610 Frigidaire PLUG
523B152122010 Frigidaire Dishwasher Holder
523GA00204701 Frigidaire Dishwasher Holder
523405526079 Frigidaire Dishwasher Roller Assembly
523FROLLER KIT, TUB, TOP LH-RH
531A00021003 Frigidaire Dishwasher Screw
552A00212701 Frigidaire Dishwasher Rail
552E807085002 Frigidaire Rail
567152323603 Frigidaire Dishwasher Bracket
580COVER, BOTTOM, FRONT
582AA03337103 Frigidaire Dishwasher Cover Assembly
582A03987801 Frigidaire Dishwasher Box
597A646123406 Frigidaire Dishwasher Stop
597152047941 Frigidaire Dishwasher STOP
597B807070701 Frigidaire Dishwasher Stop Assembly
