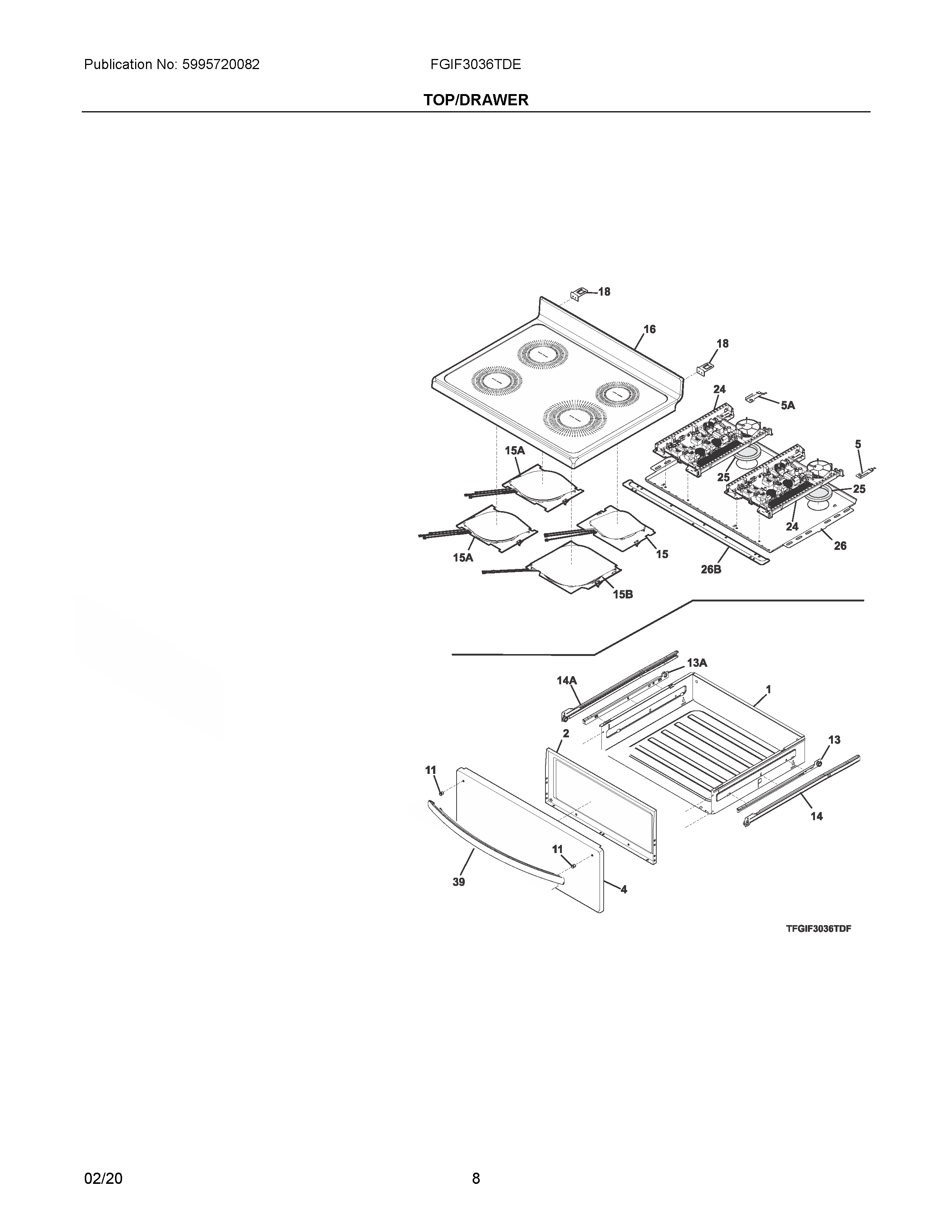

FGIF3036TDE 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI5304517540 Frigidaire Harness
NI5304517544 Frigidaire Oven Harness
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304516891 Frigidaire Oven Panel
5ABRACKET, COOKTOP, LH REAR
5BRACKET, COOKTOP, RH REAR
115304517906 Frigidaire Oven Bracket
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A5304517903 Frigidaire Oven Glide Drawer
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15B5304511268 Frigidaire Oven Induction Coil Surface Element Assembly
15A387404870 Frigidaire Range Element Assembly
15387404760 Frigidaire Range Element Assembly
165304511258 Frigidaire Smoothtop Assembly
18316580800 Frigidaire Hinge Bracket
245304531890 Frigidaire Assembly Generator
25SEALS, RING, FANS, (2)
26B316607600 Frigidaire Bracket
26PANEL, INDUCTION MTG.
39316554009 Frigidaire Oven Handle
605304414648 Frigidaire Oven Screw
