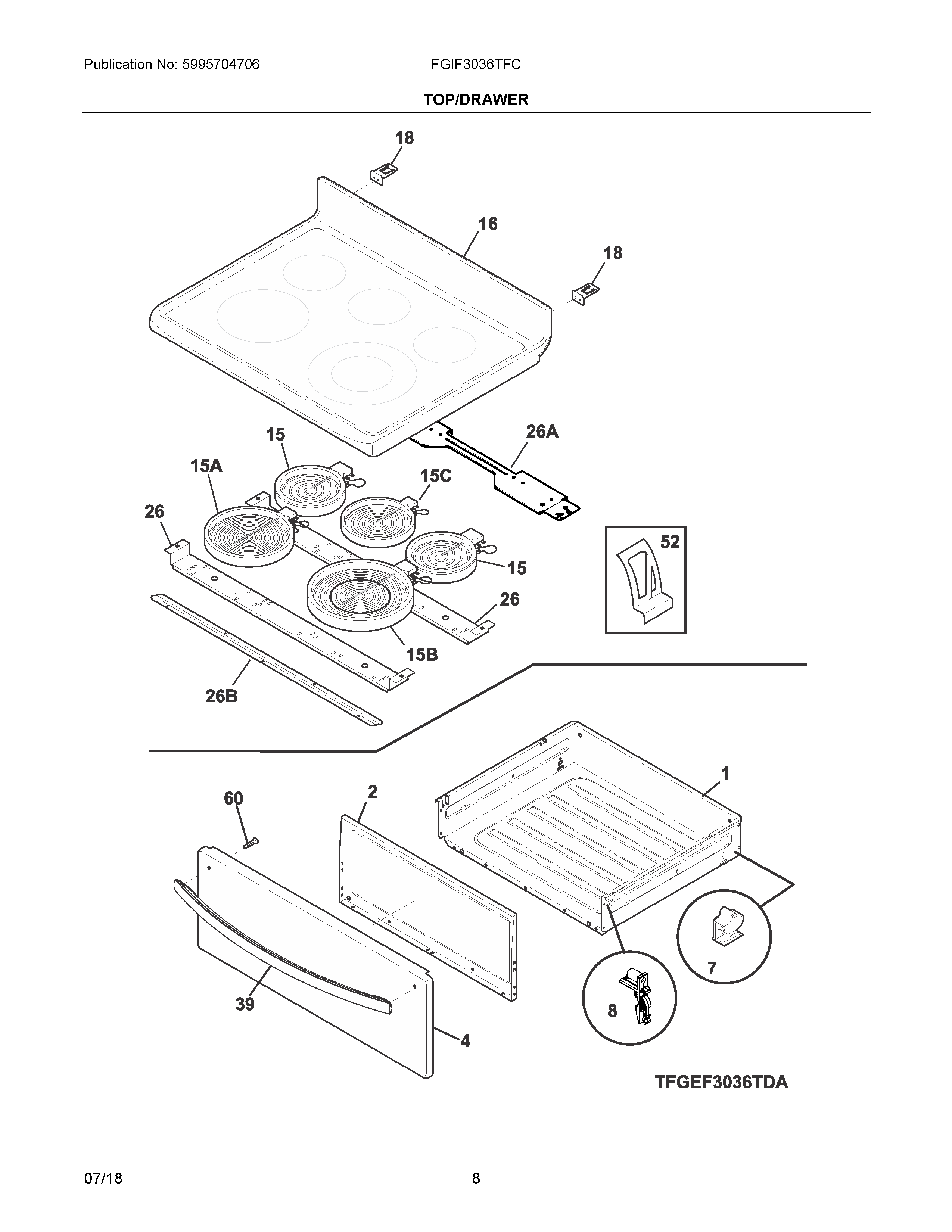

FGIF3036TFC 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	5304517540 Frigidaire Harness
NI	5304517544 Frigidaire Oven Harness
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304518011 Frigidaire Oven Panel
5A	BRACKET, COOKTOP, LH REAR
5	BRACKET, COOKTOP, RH REAR
7	316407402 Frigidaire Range Drawer Glide
8	807047202 Frigidaire Oven Glide
15B	5304511268 Frigidaire Oven Induction Coil Surface Element Assembly
15	387404760 Frigidaire Range Element Assembly
15A	387404870 Frigidaire Range Element Assembly
16	5304511258 Frigidaire Smoothtop Assembly
18	316580800 Frigidaire Hinge Bracket
24	5304531890 Frigidaire Assembly Generator
25	SEALS, RING, FANS, (2)
26B	316607600 Frigidaire Bracket
26	PANEL, INDUCTION MTG.
39	316554010 Frigidaire Stainless Steel Handle
60	5304414648 Frigidaire Oven Screw
