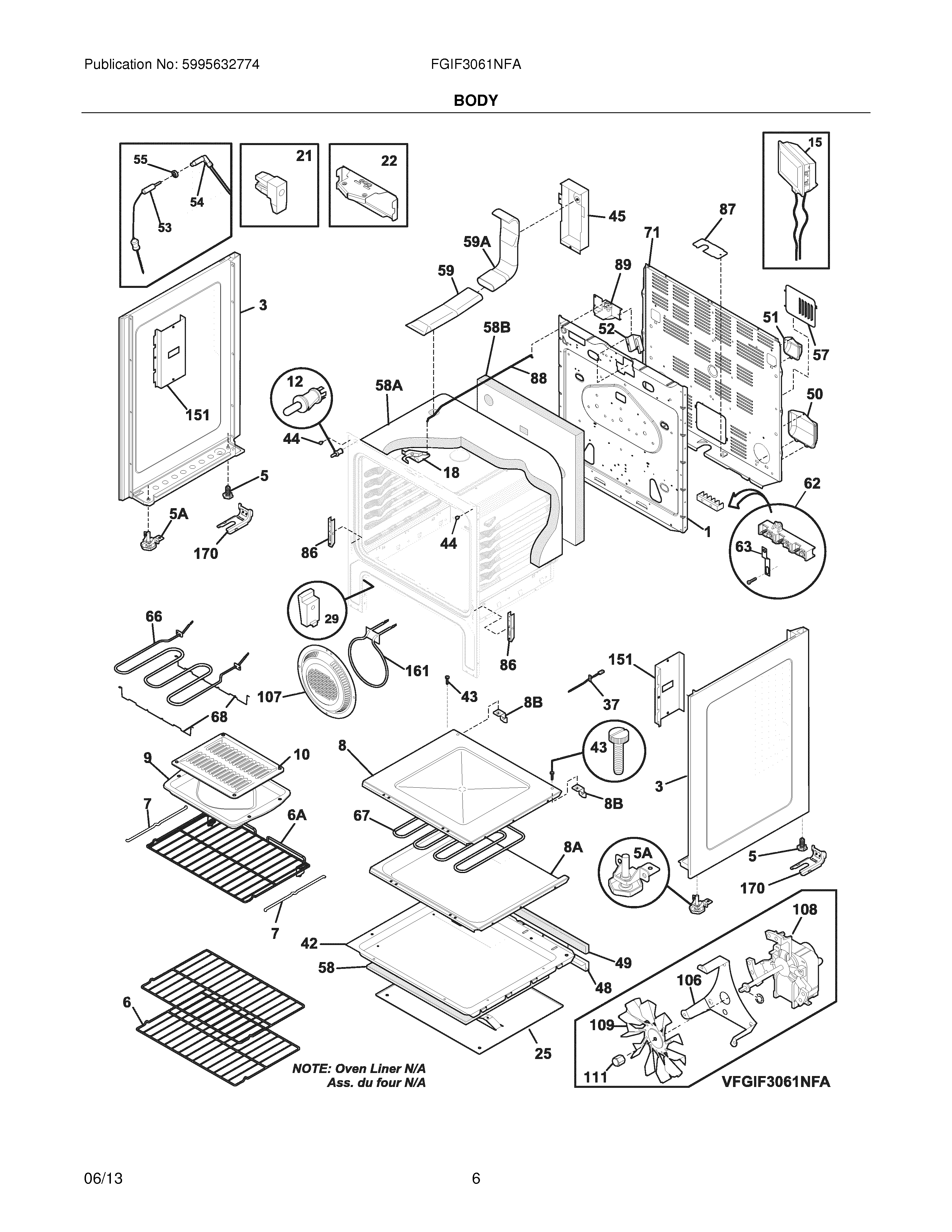

FGIF3061NFA 07 – BODY

FGIF3061NFA 07 – BODY

Written by

in

FGIF3061NFA 07 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316590239 Frigidaire Harness
NI316205500 Frigidaire Oven Nut
NI316418900 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316279600 Frigidaire Screw
NI316001017 Frigidaire Screw
NI316021105 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NI316542203 Frigidaire Insulator
1WCI 316502006
3316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316496201 Frigidaire Oven Rack
6A316577800 Frigidaire Oven Rack
7316546300 Frigidaire Coupler Link Arm
8B316506000 Frigidaire Oven Bracket
8316400601 Frigidaire Oven Range Bottom Panel
8ABASE, BAKE ELEMENT
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445500 Frigidaire Oven Switch
155304523863 Frigidaire Lamp Assembly
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
25316406200 Frigidaire Oven Shield
29807047102 Frigidaire Oven Front Drawer Glide
37316490000 Frigidaire Oven Range Temperature Sensor
42316407700 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
45316234100 Frigidaire Oven Shield
48WCI 316301600
49WCI 316301700
50WCI 316302600
51WCI 316302700
52WCI 316302000
53B316534100 Frigidaire Oven Washer
53B316247700 Frigidaire Oven Nut
53AWCI 316536900
535304504202 Frigidaire Red Meat Temperature Probe
57316457801 Frigidaire Oven Cover
58A316406602 Frigidaire Insulation
58BWCI 316301501
58316403802 Frigidaire Insulation
59A316208304 Frigidaire Oven Tube
59316208401 Frigidaire Oven Vent Tube
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66316430900 Frigidaire Oven Broil Element
67316307600 Frigidaire Oven Element
68316429100 Frigidaire Oven Support Bracket
71316302503 Frigidaire SHEILD
86316441300 Frigidaire Receptacle
87316081200 Frigidaire Oven Bracket
88316203500 Frigidaire Oven Rod
89MOTOR
106316404100 Frigidaire Oven Bracket
107316026701 Frigidaire Oven Cover Assembly
108316256100 Frigidaire Oven Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
151316404601 Frigidaire Oven Shield
161316211603 Frigidaire Oven Element
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170316116000 Frigidaire Screw
