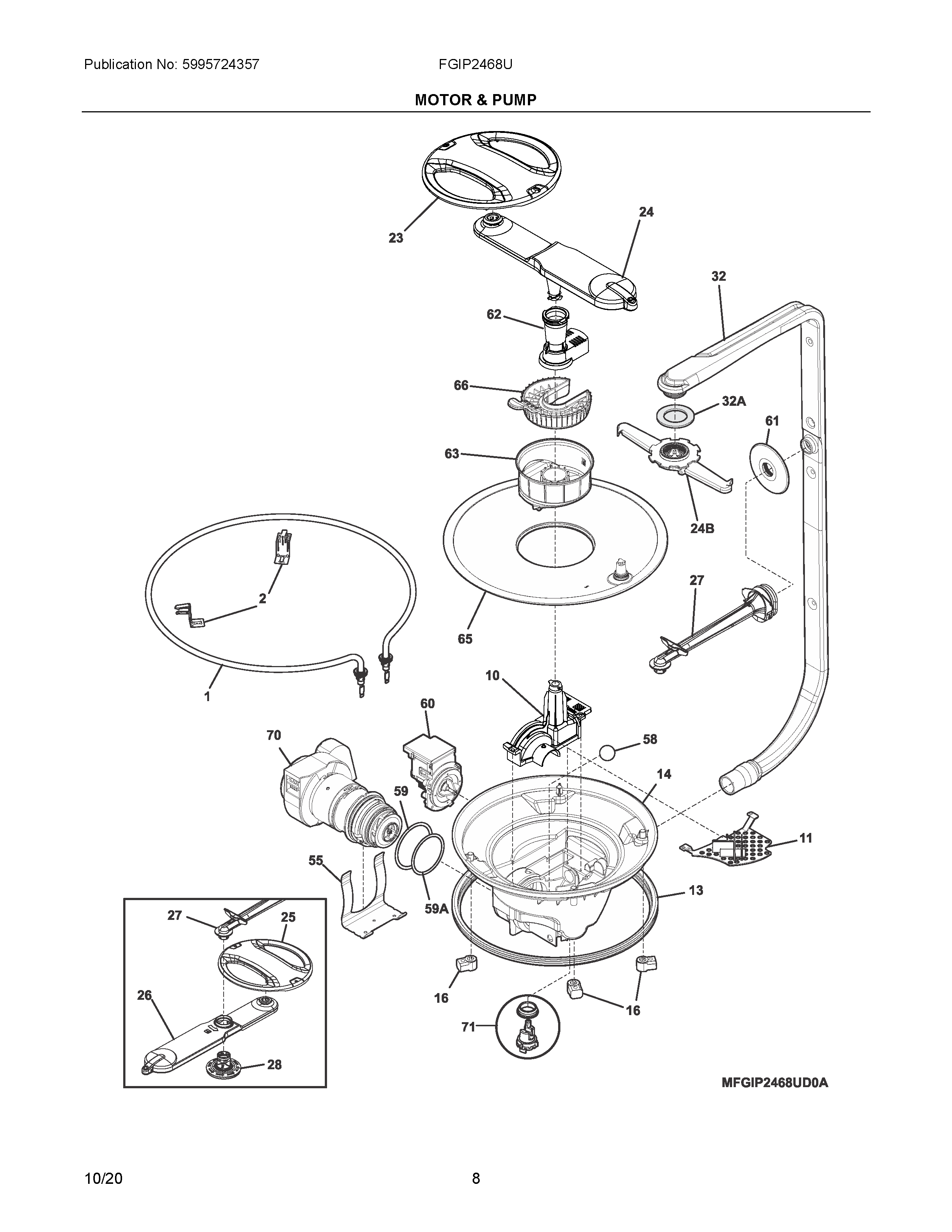

FGIP2468UF2A 05 – MOTOR & PUMP

FGIP2468UF2A 05 – MOTOR & PUMP

Written by

in

FGIP2468UF2A 05 – MOTOR & PUMP

Products

PositionProduct
NI154783101 Frigidaire Dishwasher Screw
NIB154491101 Frigidaire Dishwasher Screw
NIA154611101 Frigidaire Dishwasher Clamp
NIA154106202 Frigidaire Dishwasher Heater Nut
NIB154741501 Frigidaire Dishwasher Screw
NIA154754901 Frigidaire Dishwasher Screw
NIA154779601 Frigidaire Dishwasher Screw
NIA807048001 Frigidaire Dishwasher Check Valve
NIB154289801 Frigidaire Dishwasher Shield
1154825001 Frigidaire Dishwasher Round Heater Heating Element
2154465101 Frigidaire Dishwasher Heating Element Support Bracket
105304517590 Frigidaire Dishwasher Cover
11807111601 Frigidaire Sump Cover Assembly and Filter
13154246801 Frigidaire Dishwasher Primary Gasket
14154723801 Frigidaire Dishwasher SUMP Assembly
16154246502 Frigidaire Dishwasher Bracket
235304517982 Frigidaire Orbital Sprayer
245304517981 Frigidaire Lower Wash Arm
24B5304506516 Frigidaire Dishwasher Upper Spray Arm
255304517890 Frigidaire Center Wash Arm Assembly
265304517891 Frigidaire Assembly Center Wash Arm
275304517892 Frigidaire Dishwasher Manifold Assembly
285304517893 Frigidaire Nut
32A154406401 Frigidaire Delivery Tube Gasket
325304507087 Frigidaire Dishwasher Tube
555304534830 Frigidaire Dishwasher Bracket
58154246402 Frigidaire Dishwasher P-1 BALL
59A154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60A00126401 Frigidaire Dishwasher Drain Pump Assembly
615304506517 Frigidaire Dishwasher Grommet Assembly
625304532954 Frigidaire Dishwasher Support
635304506533 Frigidaire Dishwasher Filter Base
65154283005 Frigidaire Dishwasher Filter Assembly
665304532206 Frigidaire Trap
70154853801 Frigidaire Motor and Pump Assembly
71154762601 Frigidaire Dishwasher Turbidity Sensor
