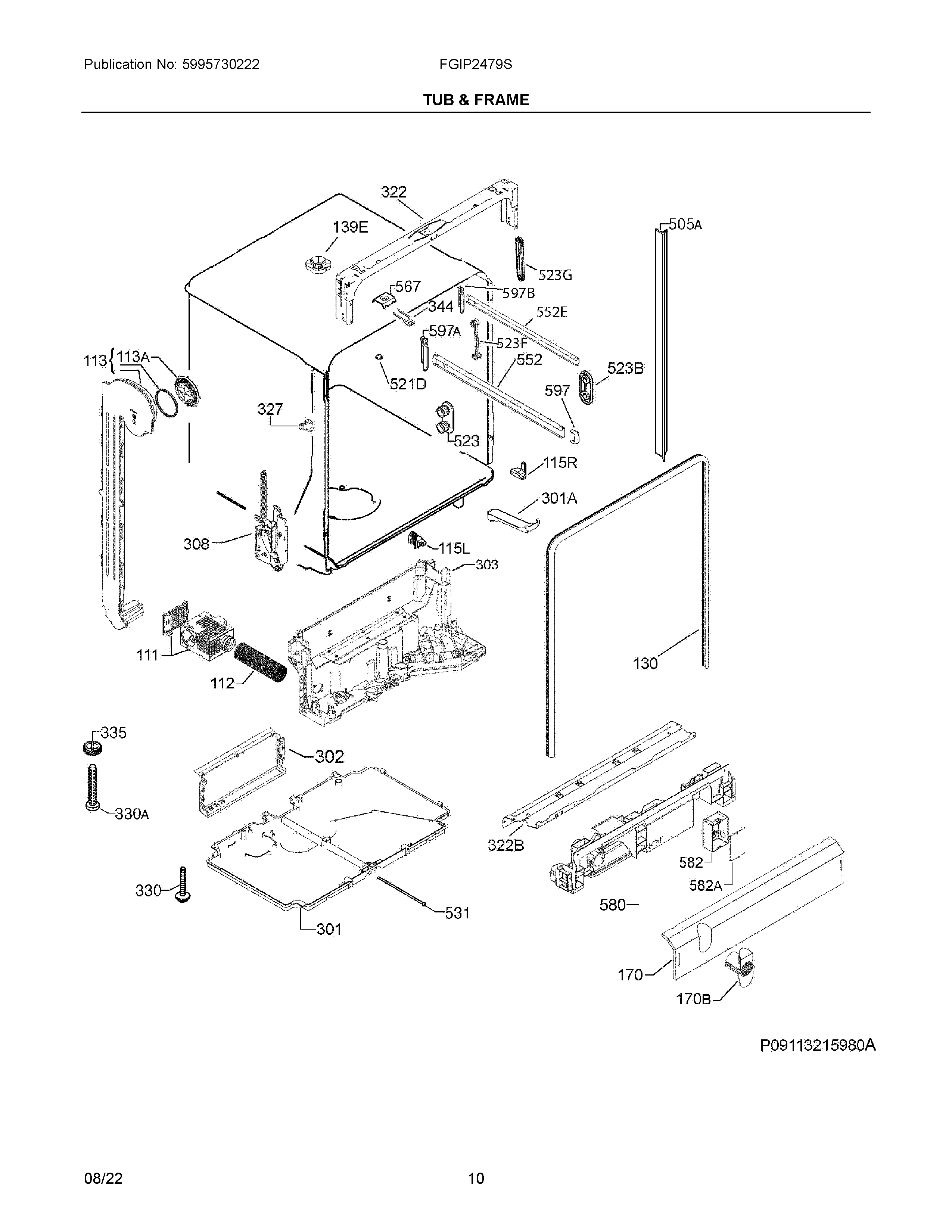

FGIP2479SF1A 06 – TUB & FRAME

FGIP2479SF1A 06 – TUB & FRAME

Products

PositionProduct
NISCREW
NI405546374 Frigidaire Screw Kit
NI405530687 Frigidaire Screw
NI405531515 Frigidaire Dishwasher Mounting Kit
1115304509259 Frigidaire Dishwasher Housing Assembly
112A05660505 Frigidaire Dishwasher Hose
113AA06525801 Frigidaire Dishwasher Outlet
113405537600 Frigidaire Dishwasher Air Duct
115RA11462602 Frigidaire Dishwasher Bridge
115LA11462601 Frigidaire Dishwasher Bridge
130117158011 Frigidaire Dishwasher Door Seal Gasket
139E807240301 Frigidaire Dishwasher Nut
170405537597 Frigidaire Dishwasher Insulation Kit
170BA05936001 Frigidaire Dishwasher Outlet
301AOVERFLOW HOSE KIT
301807104203 Frigidaire Dishwasher Tray
302A00075002 Frigidaire Dishwasher Cover
303A01868606 Frigidaire Dishwasher Base Assembly
308405539931 Frigidaire Dishwasher Hinge Assembly
322A00166805 Frigidaire Dishwasher Crossbar
322BCROSS PIECE, FRONT, BOTTOM
327117427700 Frigidaire Dishwasher Clip
330A117363200 Frigidaire Dishwasher Foot
330152661702 Frigidaire Dishwasher Foot
335152714200 Frigidaire Dishwasher COG
344152234405 Frigidaire Dishwasher Latch
505A808470401 Frigidaire Dishwasher Trim
521D152657610 Frigidaire PLUG
523405526079 Frigidaire Dishwasher Roller Assembly
523GA00204701 Frigidaire Dishwasher Holder
523B152122010 Frigidaire Dishwasher Holder
523F405540568 Frigidaire Dishwasher Wheel
531A00021003 Frigidaire Dishwasher Screw
552E807085002 Frigidaire Rail
552A00212701 Frigidaire Dishwasher Rail
567152323603 Frigidaire Dishwasher Bracket
580A04472907 Frigidaire Cover
582AA03337103 Frigidaire Dishwasher Cover Assembly
582A03987801 Frigidaire Dishwasher Box
597152047941 Frigidaire Dishwasher STOP
597A646123406 Frigidaire Dishwasher Stop
597B807070701 Frigidaire Dishwasher Stop Assembly
