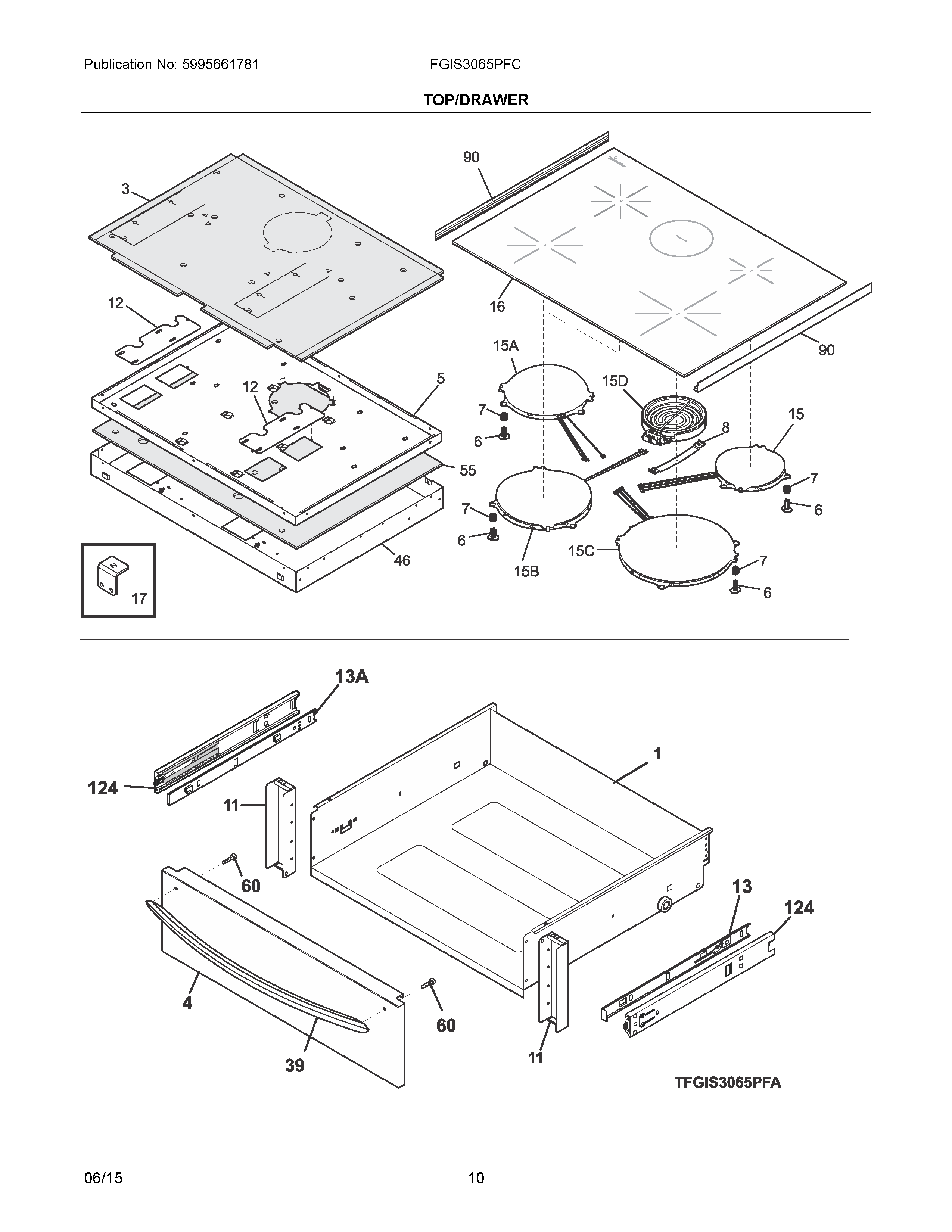

FGIS3065PFC 05 – TOP/DRAWER

FGIS3065PFC 05 – TOP/DRAWER

Written by

in

FGIS3065PFC 05 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NINUT, KEPS, 8-32, (2)
NIWCI 807616507
NI5303288565 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
1318107317 Frigidaire Oven Drawer
3WCI 808318402
4318298829 Frigidaire Oven Panel
5PANEL, MOUNTING
6318405000 Frigidaire Oven Pin
7318534300 Frigidaire Spring
8318122006 Frigidaire Small Element Mounting Spring
11WCI 318298600
12SHIELD, EMI
13AWCI 318259505
13WCI 318259504
15C318329244 Frigidaire Oven Element
15B318329243 Frigidaire Oven Heating Element
15DELEMENT,RADIANT,100W,WARMER
15A318329242 Frigidaire Oven Element
15318329241 Frigidaire Oven Element
16WCI 139033844
17BRACKET, TOP LATCH, (2)
39316554010 Frigidaire Stainless Steel Handle
46BOX, BURNER
55INSULATION, SERVICE PANEL
605304414648 Frigidaire Oven Screw
90WCI 318368001
124WCI 318330600
