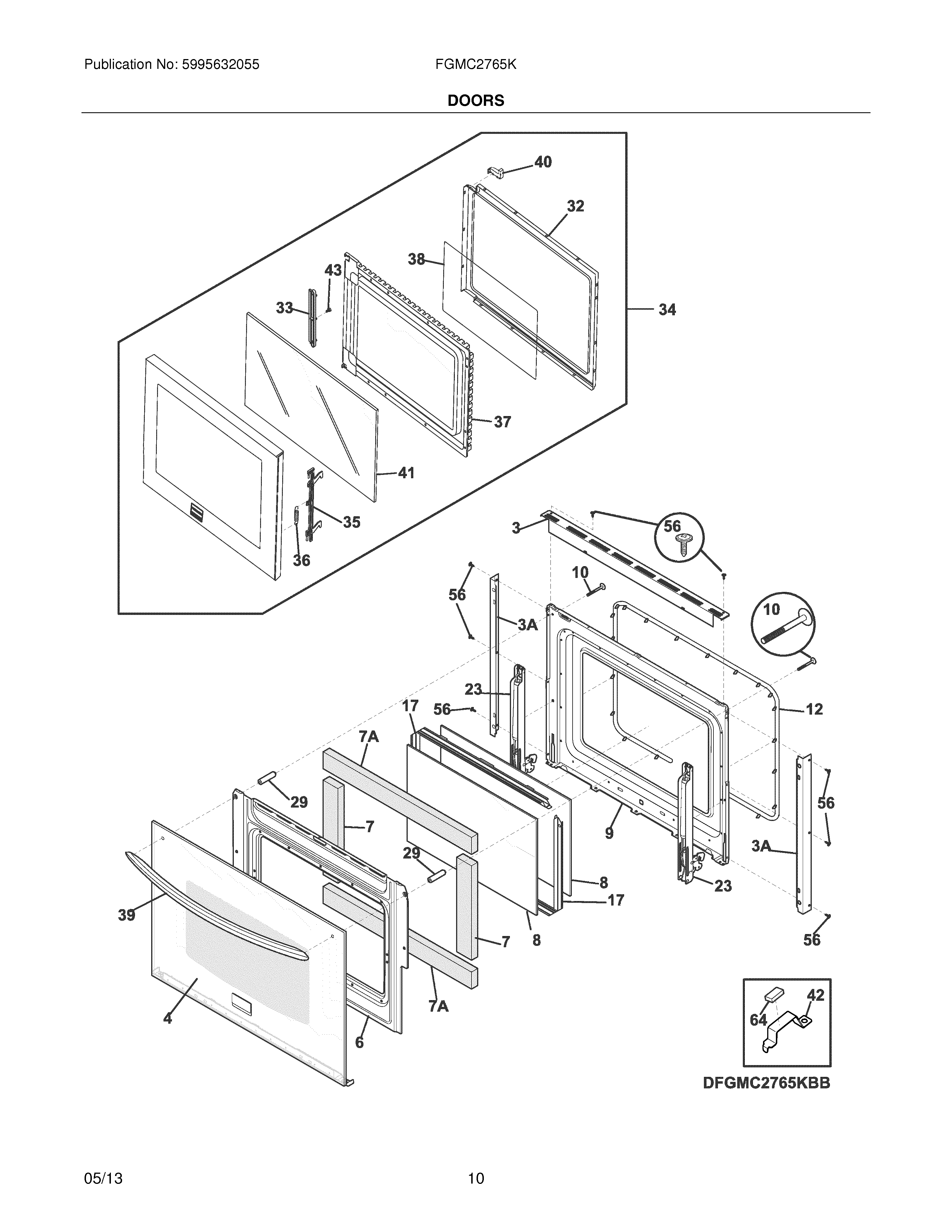

FGMC2765KBB 09 – DOORS

FGMC2765KBB 09 – DOORS

Written by

in

FGMC2765KBB 09 – DOORS

Products

PositionProduct
NI316418900 Frigidaire Oven Screw
3WCI 318260217
3AWCI 318260401
4WCI 318261327
6WCI 318260511
7318372017 Frigidaire Insulation
7A318372018 Frigidaire Insulation
8WCI 318212200
9WCI 318259672
10Screw,10-24 x 1.770 ,handle mtg
12WCI 318053137
17WCI 318264700
23WCI 318567108
29WCI 318014405
325304440861 Frigidaire Microwave CHOKE Cover
33WCI 5304440862
34DOOR ASSEMBLY, COMPLETE, BLACK, W/BADGE
355304441893 Frigidaire Microwave Latch
365304440316 Frigidaire Microwave Spring Assembly
375304440857 Frigidaire Microwave Panel
385304440860 Frigidaire Microwave Seal
39HANDLE ASSEMBLY, W/SPACER, BLACK
405304442145 Frigidaire Microwave Door STOP
41PANEL, DOOR GLASS, BLACK
42318382302 Frigidaire Bracket
435304452259 Frigidaire Screw
565304436875 Frigidaire Oven Screw
64318165800 Frigidaire Oven Door Glass Spacer with Screw
