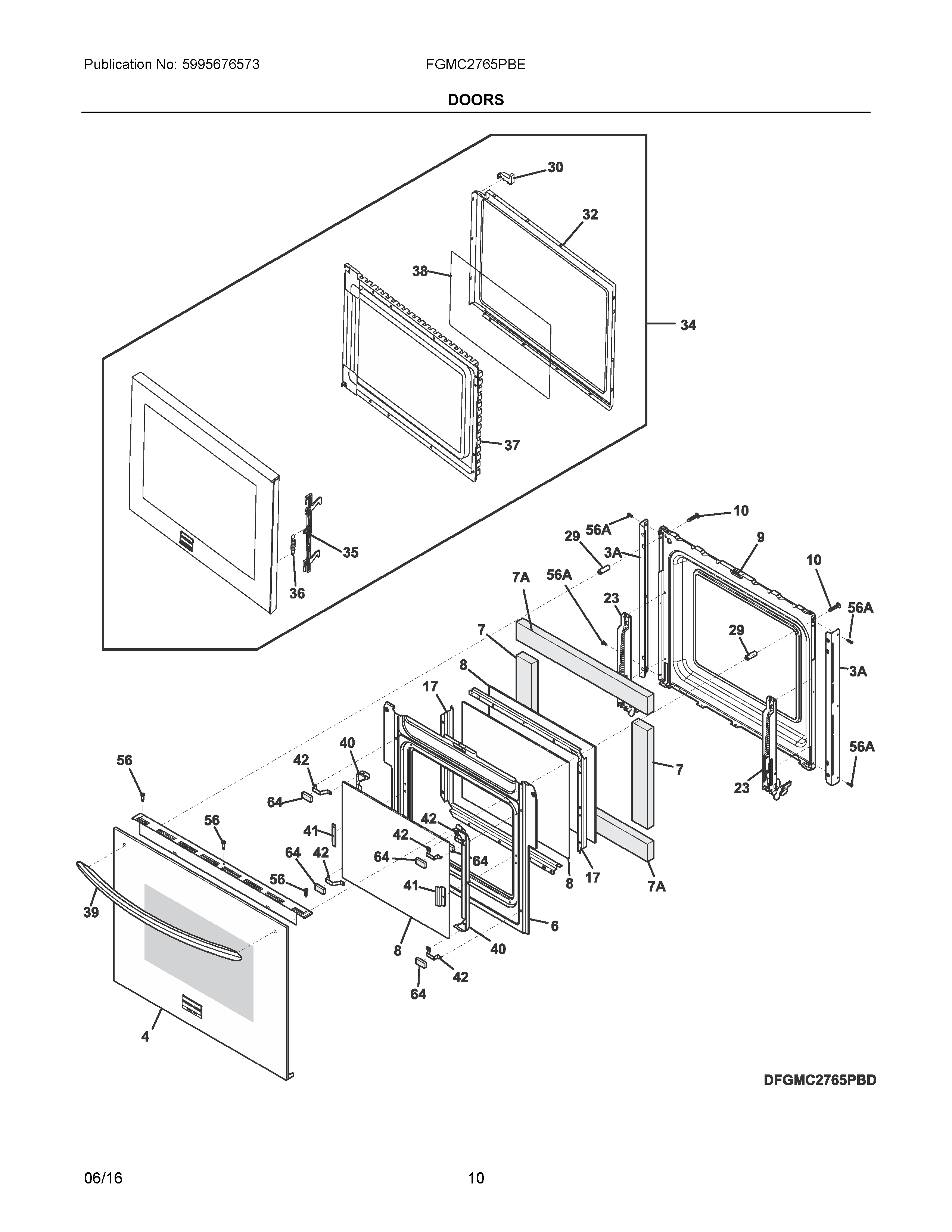

FGMC2765PBE 05 – DOORS

FGMC2765PBE 05 – DOORS

Written by

in

FGMC2765PBE 05 – DOORS

Products

PositionProduct
NIA316418900 Frigidaire Oven Screw
3A139014401 Frigidaire Oven Trim
3139023601 Frigidaire Trim
4DOOR ASSEMBLY, OUTER, GLASS, BLACK, W/TRIM & BADGE
6139014203 Frigidaire Oven Baffle
7318372017 Frigidaire Insulation
7A318372018 Frigidaire Insulation
8139085803 Frigidaire Glass
9139002905 Frigidaire Oven Liner
17318264735 Frigidaire Spacer
23316575917 Frigidaire Oven Hinge
29139023400 Frigidaire Oven Spacer
305304442145 Frigidaire Microwave Door STOP
325304440861 Frigidaire Microwave CHOKE Cover
34DOOR ASSEMBLY, COMPLETE, BLACK, W/BADGE
355304441893 Frigidaire Microwave Latch
365304440316 Frigidaire Microwave Spring Assembly
375304440857 Frigidaire Microwave Panel
385304440860 Frigidaire Microwave Seal
39HANDLE ASSEMBLY, W/SPACER, BLACK
40318242702 Frigidaire Oven Bracket Assembly
41318370602 Frigidaire Oven Bracket
42318382302 Frigidaire Bracket
56A5303324184 Frigidaire Wall Oven Range Screw
565304480396 Frigidaire Screw
64318165800 Frigidaire Oven Door Glass Spacer with Screw
