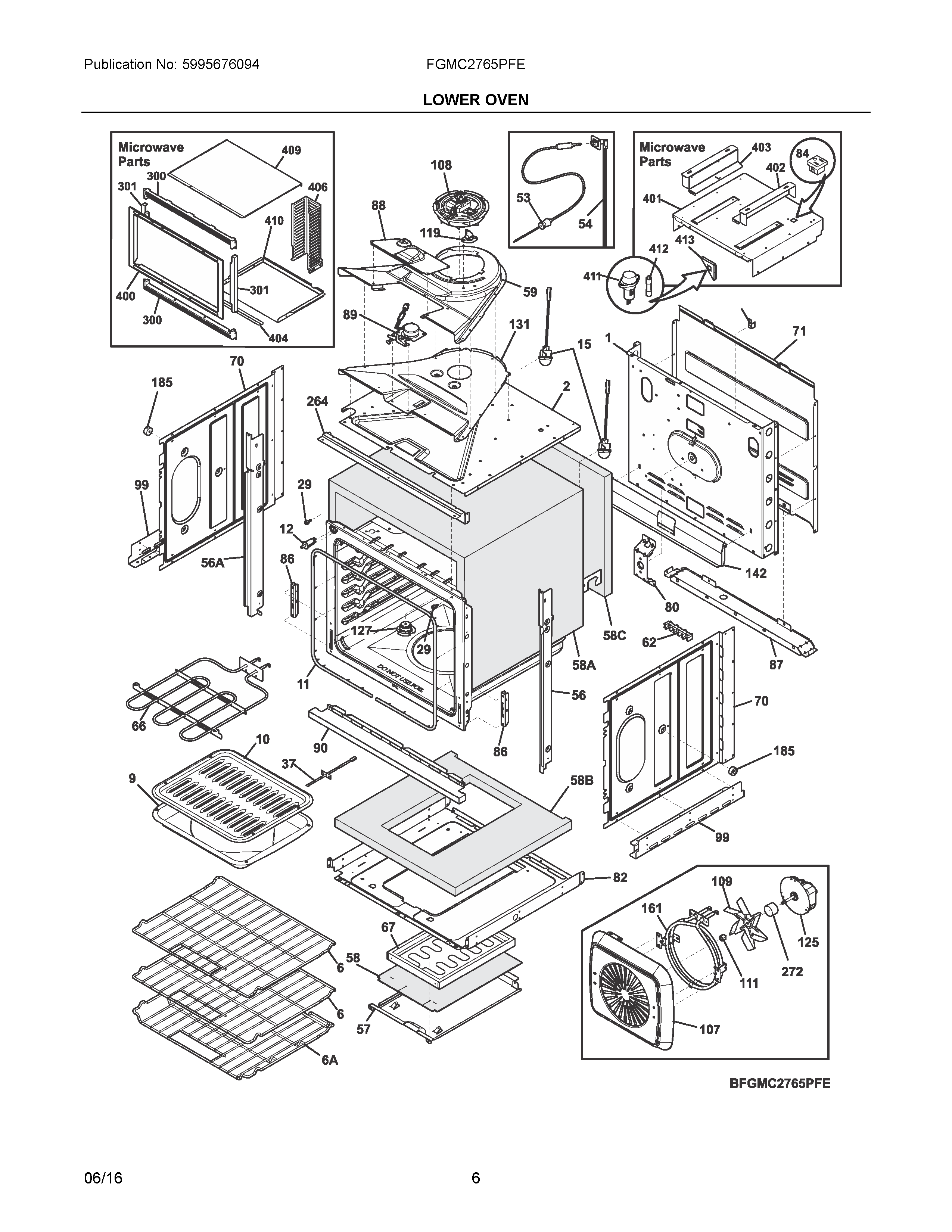

FGMC2765PFE 04 – LOWER OVEN

FGMC2765PFE 04 – LOWER OVEN

Written by

in

FGMC2765PFE 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIAWCI 318231870
NIAWCI 318579001
NI5304506955 Frigidaire Harness Assembly
NIA316418900 Frigidaire Oven Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIWCI 316533900
NI5304470882 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIB5303323130 Frigidaire Oven Screw
NI5304517285 Frigidaire Assembly Harness
NI5304490877 Frigidaire Oven Harness
NIA807597603 Frigidaire Oven Screw
NIB5303289910 Frigidaire Oven Screw
NI240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
NIB316021109 Frigidaire Oven Screw
NI5304453707 Frigidaire Oven Screw
NIA316205500 Frigidaire Oven Nut
NIA5304517368 Frigidaire Harness
NIA316001017 Frigidaire Screw
NIASCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
1139003805 Frigidaire Panel
2139027804 Frigidaire Shield
6A139012500 Frigidaire Oven Rack
65304514984 Frigidaire Rack
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545501 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304504202 Frigidaire Red Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
56318276352 Frigidaire Trim
56ATRIM, SIDE FILLER, BLACK, LH
57139021200 Frigidaire PANEL
58A139001701 Frigidaire INSULATION
58B139021501 Frigidaire Insulation
58C139021401 Frigidaire INSULATION
58139022100 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304523477 Frigidaire Element
67318902502 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139022000 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
82139003101 Frigidaire Shield
845304517286 Frigidaire Outlet Assembly
86318561100 Frigidaire Receptacle
87139021900 Frigidaire Bracket
885304506964 Frigidaire Oven Cover
89139021302 Frigidaire Oven Motor
90318259864 Frigidaire Oven Trim
99318256201 Frigidaire Oven Bracket
107139013903 Frigidaire Oven Vent Hood Cover
108318575612 Frigidaire Oven Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
125139008502 Frigidaire Oven Motor Assembly
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
142WCI 139021800
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
264139003501 Frigidaire Oven Trim Assembly
272139021700 Frigidaire Oven Tube
300WCI 318925001
301WCI 318925103
400WCI 318930303
401WCI 807051002
402WCI 5304505859
403WCI 5304505860
4045304505857 Frigidaire Oven Bracket
406WCI 318277201
409WCI 5304505861
410WCI 5304505858
412318647300 Frigidaire Microwave Fuse and Holder
413807874501 Frigidaire Microwave Gusset
