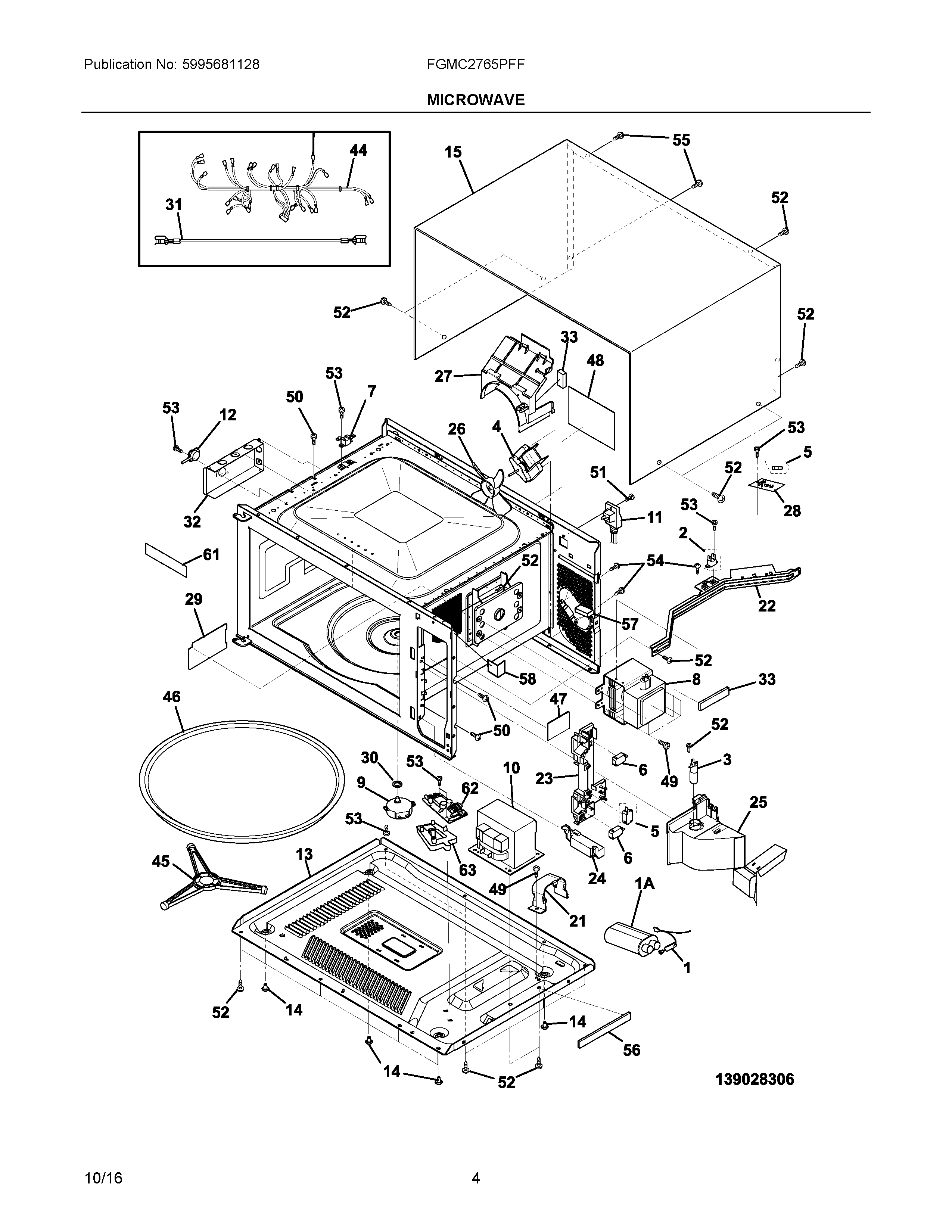

FGMC2765PFF 03 – MICROWAVEadmin2025-04-26T09:05:35+00:00FGMC2765PFF 03 – MICROWAVE
Products
| Position | Product |
|---|
| NI | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 1A | 5304487566 Frigidaire Microwave Capacitor |
| 1 | 5304493150 Frigidaire Microwave Assembly Rectifier |
| 2 | 5303319550 Frigidaire Microwave Fuse |
| 3 | 5304500304 Frigidaire Microwave Lamp Assembly with SO |
| 4 | 5304493152 Frigidaire Microwave Motor |
| 5 | 5303319559 Frigidaire Microwave Fuse and Switch Kit |
| 6 | 5304493153 Frigidaire Microwave Door Switch |
| 7 | 5304440780 Frigidaire Microwave Fuse |
| 8 | 5304521745 Frigidaire Microwave Magnetron |
| 9 | 5304448832 Frigidaire Microwave Motor |
| 10 | 5304473321 Frigidaire Microwave Transformer |
| 11 | 5304478937 Frigidaire Microwave Power Cord |
| 12 | 5304440785 Frigidaire Microwave Sensor |
| 13 | BASE, UNIT CHASSIS |
| 14 | 5304508428 Frigidaire Microwave Foot |
| 15 | CABINET, OUTER CASING, BLACK |
| 21 | 5304478941 Frigidaire Retainer |
| 22 | BRACKET, CHASSIS SUPPORT |
| 23 | 5304503439 Frigidaire Microwave Latch Hook |
| 24 | 5304485407 Frigidaire Microwave Door Release Assembly |
| 25 | DUCT, MAGNETRON |
| 26 | 5304493155 Frigidaire Microwave Fan Blade |
| 27 | DUCT, COOLING FAN |
| 28 | 5304507217 Frigidaire Microwave Filter |
| 29 | 5304462314 Frigidaire Microwave Waveguide Cover |
| 30 | 5304467718 Frigidaire Microwave Bushing |
| 31 | 5304493157 Frigidaire Wire |
| 32 | DUCT, HUMIDITY SENSOR |
| 33 | CUSHION |
| 44 | 5304507218 Frigidaire Microwave Wiring Harness |
| 45 | 5304467717 Frigidaire Microwave Glass Tray Support |
| 46 | 5304529482 Frigidaire Glass Tray Assembly |
| 47 | 5304467771 Frigidaire Microwave Label |
| 48 | 5304467770 Frigidaire Microwave Label |
| 49 | WCI 5303319636 |
| 50 | 5303319641 Frigidaire Screw |
| 51 | 5304462315 Frigidaire Microwave Screw |
| 52 | 5304451553 Frigidaire Microwave Screw |
| 53 | 5304453725 Frigidaire Screw |
| 54 | 5304450253 Frigidaire Microwave Screw |
| 55 | 5304440873 Frigidaire Screw |
| 56 | CUSHION, BASE PLATE |
| 57 | CUSHION, FAN MOTOR |
| 58 | CUSHION, CAVITY, CONTROL PANEL |
| 61 | LABEL |
| 62 | 5304507220 Frigidaire Microwave Power Unit |
| 63 | 5304507222 Frigidaire Holder |
