FGMC2765PFH 03 – MICROWAVE

FGMC2765PFH 03 – MICROWAVE

Written by

in

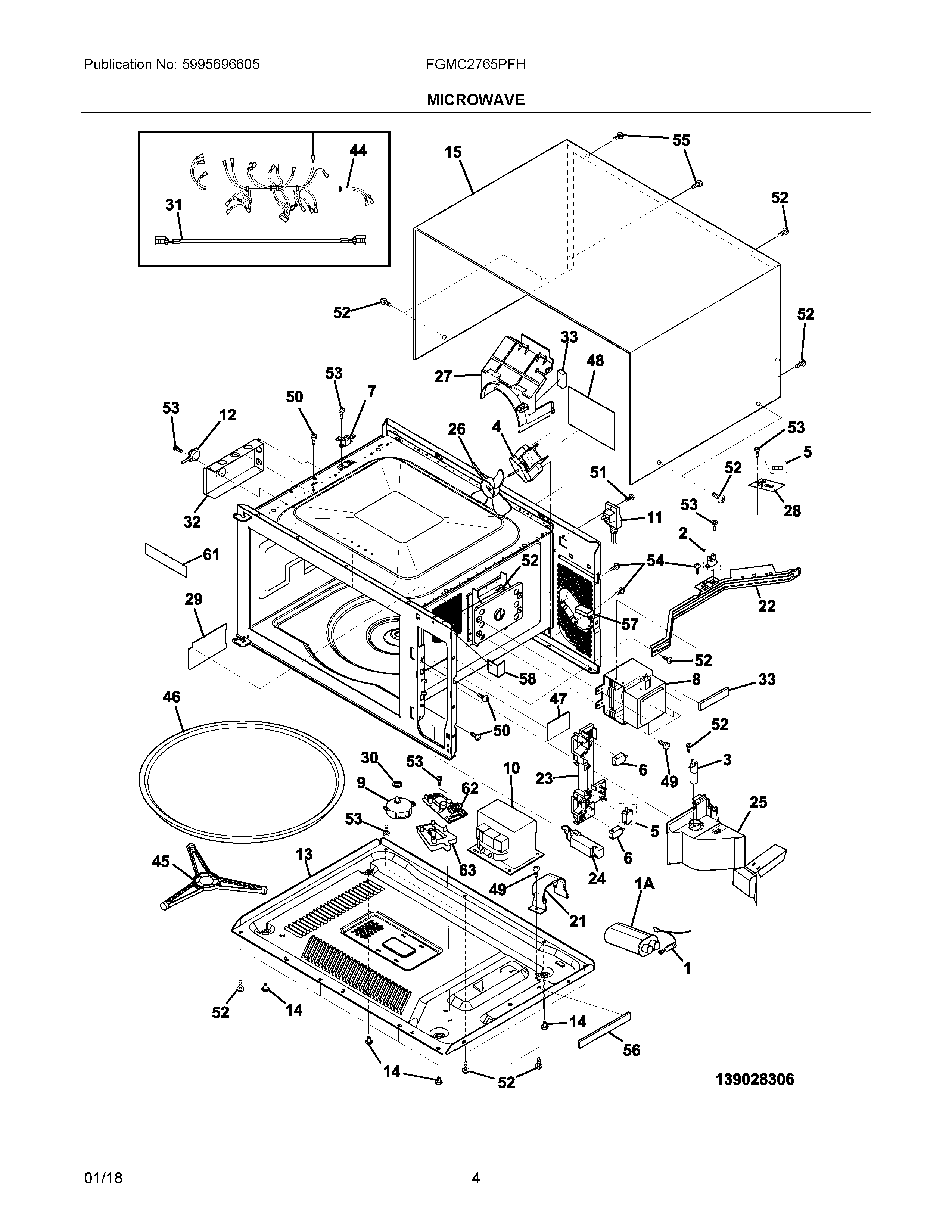

FGMC2765PFH 03 – MICROWAVE

Products

PositionProduct
NI240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
1A5304487566 Frigidaire Microwave Capacitor
15304493150 Frigidaire Microwave Assembly Rectifier
25303319550 Frigidaire Microwave Fuse
35304500304 Frigidaire Microwave Lamp Assembly with SO
45304493152 Frigidaire Microwave Motor
55303319559 Frigidaire Microwave Fuse and Switch Kit
65304493153 Frigidaire Microwave Door Switch
75304440780 Frigidaire Microwave Fuse
85304521745 Frigidaire Microwave Magnetron
95304448832 Frigidaire Microwave Motor
105304473321 Frigidaire Microwave Transformer
115304478937 Frigidaire Microwave Power Cord
125304440785 Frigidaire Microwave Sensor
13BASE, UNIT CHASSIS
145304508428 Frigidaire Microwave Foot
15CABINET, OUTER CASING, BLACK
215304478941 Frigidaire Retainer
22BRACKET, CHASSIS SUPPORT
235304503439 Frigidaire Microwave Latch Hook
245304485407 Frigidaire Microwave Door Release Assembly
25DUCT, MAGNETRON
265304493155 Frigidaire Microwave Fan Blade
27DUCT, COOLING FAN
285304507217 Frigidaire Microwave Filter
295304462314 Frigidaire Microwave Waveguide Cover
305304467718 Frigidaire Microwave Bushing
315304493157 Frigidaire Wire
32DUCT, HUMIDITY SENSOR
33CUSHION
445304507218 Frigidaire Microwave Wiring Harness
455304467717 Frigidaire Microwave Glass Tray Support
465304529482 Frigidaire Glass Tray Assembly
475304467771 Frigidaire Microwave Label
485304467770 Frigidaire Microwave Label
49WCI 5303319636
505303319641 Frigidaire Screw
515304462315 Frigidaire Microwave Screw
525304451553 Frigidaire Microwave Screw
535304453725 Frigidaire Screw
545304450253 Frigidaire Microwave Screw
555304440873 Frigidaire Screw
56CUSHION, BASE PLATE
57CUSHION, FAN MOTOR
58CUSHION, CAVITY, CONTROL PANEL
61LABEL
625304507220 Frigidaire Microwave Power Unit
635304507222 Frigidaire Holder
