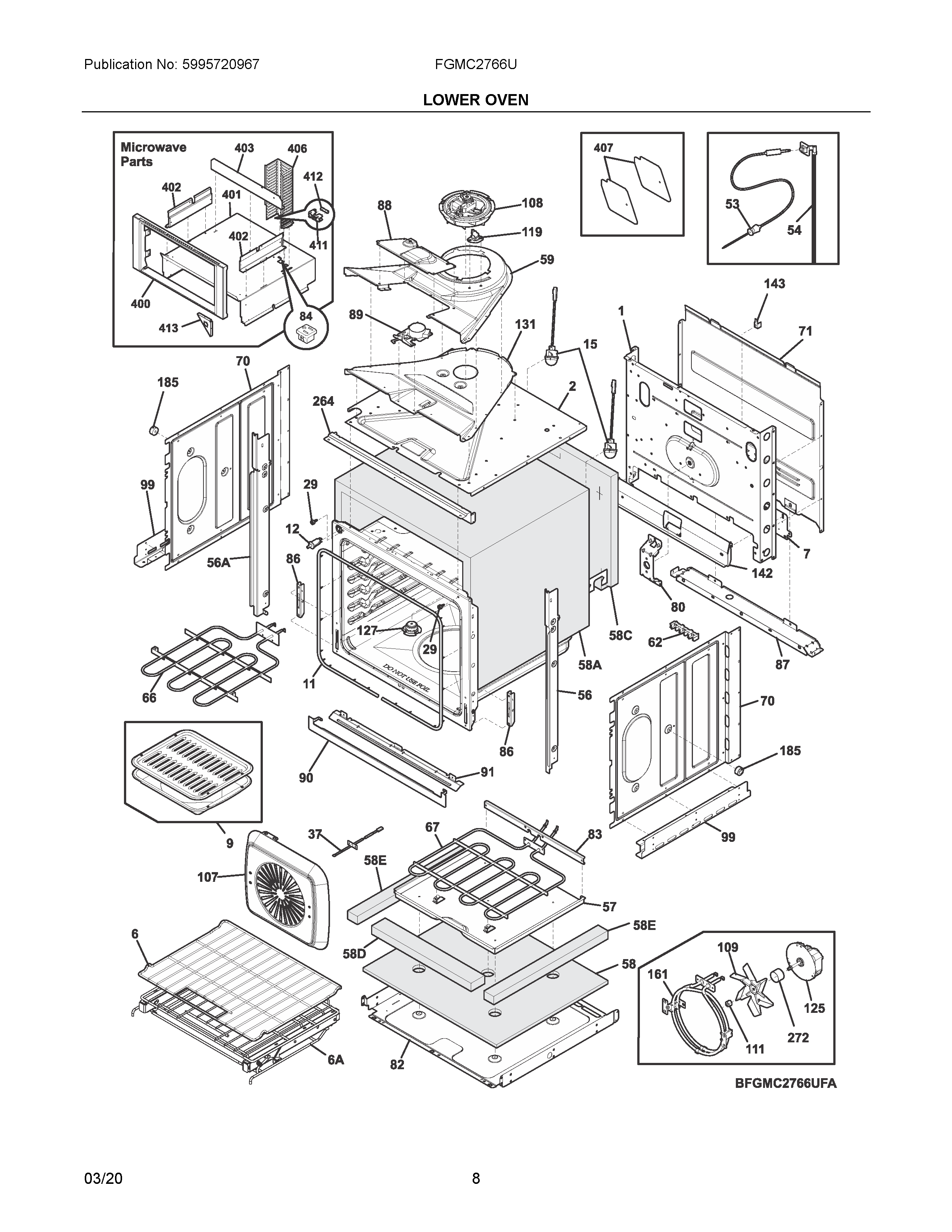

FGMC2766UDC 04 – LOWER OVEN

FGMC2766UDC 04 – LOWER OVEN

Written by

in

FGMC2766UDC 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA807597603 Frigidaire Oven Screw
NI5304514905 Frigidaire Harness
NIA5304516521 Frigidaire Harness
NI5304506984 Frigidaire Harness Assembly
NIA316418900 Frigidaire Oven Screw
NI5304470882 Frigidaire Oven Screw
NIB5304514916 Frigidaire Harness
NIA316001017 Frigidaire Screw
NIB5303289910 Frigidaire Oven Screw
NIA316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIA316205500 Frigidaire Oven Nut
NI5304514908 Frigidaire Harness
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
15304506958 Frigidaire Panel
2139027804 Frigidaire Shield
6A5304518865 Frigidaire Rack Assembly
65304514984 Frigidaire Rack
7PANEL, SERVICE, MAIN BACK
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
11807545501 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
56A318903760 Frigidaire Trim
56318903759 Frigidaire Trim
575304506949 Frigidaire Box
58D5304506965 Frigidaire Insulation
58A139001701 Frigidaire INSULATION
585304506952 Frigidaire Insulation
58E5304506966 Frigidaire Insulation
58C5304506954 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304514924 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139022000 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
825304506947 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
845304516519 Frigidaire Assembly Outlet
86318561100 Frigidaire Receptacle
87139021900 Frigidaire Bracket
885304506964 Frigidaire Oven Cover
895304528835 Frigidaire Motor
905304516509 Frigidaire Trim
915304514963 Frigidaire Oven Divider
99318256201 Frigidaire Oven Bracket
107139013903 Frigidaire Oven Vent Hood Cover
108318575612 Frigidaire Oven Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
125139008504 Frigidaire Oven Motor
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
142WCI 5304506953
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
264139003501 Frigidaire Oven Trim Assembly
272139021700 Frigidaire Oven Tube
4005304516499 Frigidaire Frame Assembly
401PLATE, MW SUPPORT
402WCI 5304516494
403WCI 5304516493
4065304516503 Frigidaire Cover
407WCI 5304518871
4115304516517 Frigidaire Receptacle
4125304518868 Frigidaire Oven Fuse
413807874501 Frigidaire Microwave Gusset
