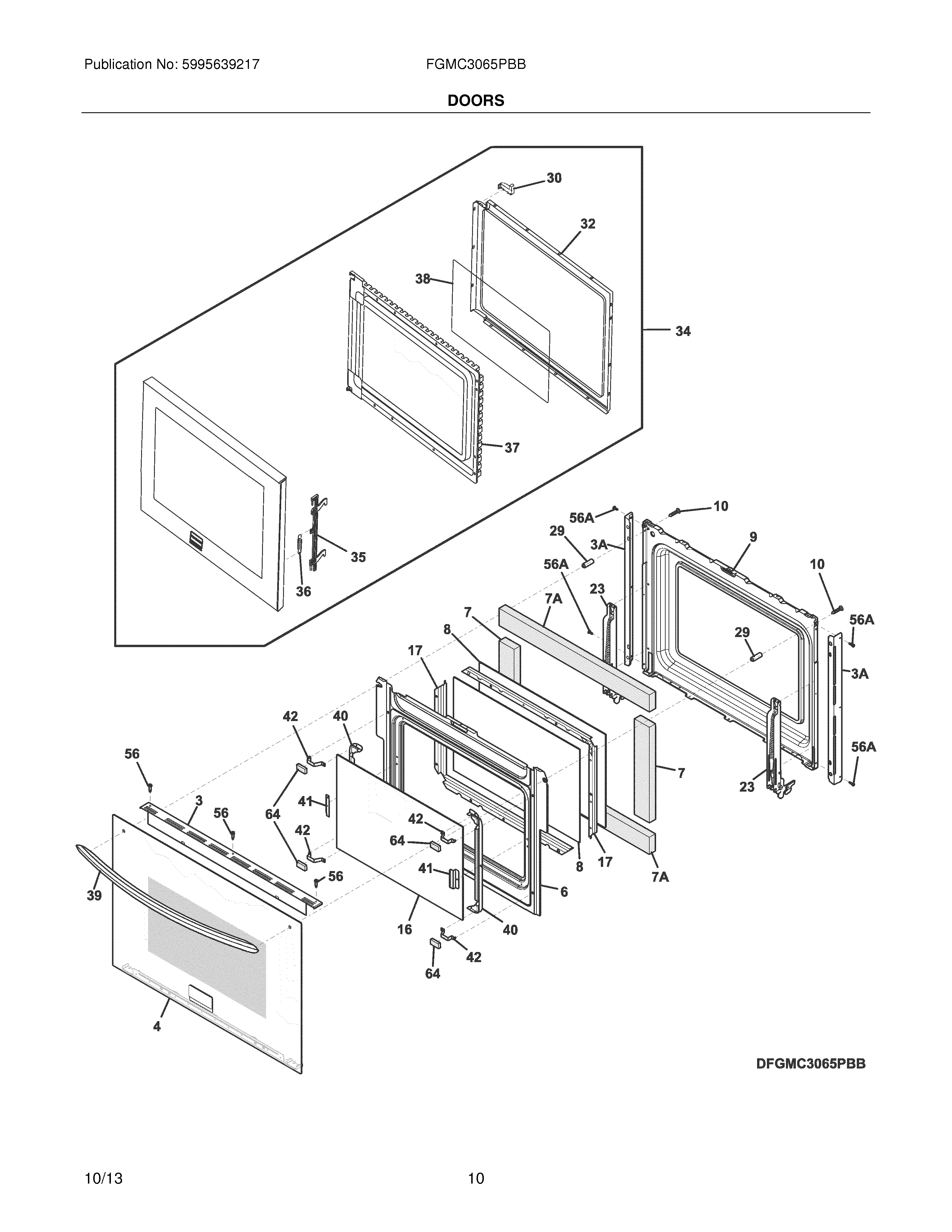

FGMC3065PBB 09 – DOORS

Products

Position	Product
NI	316418900 Frigidaire Oven Screw
NI	316021132 Frigidaire Screw
3	139023301 Frigidaire Oven Trim
3A	139014401 Frigidaire Oven Trim
4	DOOR ASSEMBLY, OUTER, BLACK, W/TRIM & BADGE
6	139006905 Frigidaire Oven Baffle
7A	318372016 Frigidaire Insulation
7	318372017 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	139000405 Frigidaire Liner
10	SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
16	316446401 Frigidaire Oven Glass
17	318264731 Frigidaire Oven Spacer
23	316575912 Frigidaire Lime Green Oven Door Hinge
29	139023400 Frigidaire Oven Spacer
30	5304442145 Frigidaire Microwave Door STOP
32	5304440861 Frigidaire Microwave CHOKE Cover
34	DOOR ASSEMBLY, COMPLETE, BLACK, W/BADGE
35	5304441893 Frigidaire Microwave Latch
36	5304440316 Frigidaire Microwave Spring Assembly
37	5304440857 Frigidaire Microwave Panel
38	5304440860 Frigidaire Microwave Seal
39	WCI 318927401
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
56A	5303324184 Frigidaire Wall Oven Range Screw
56	316021109 Frigidaire Oven Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
