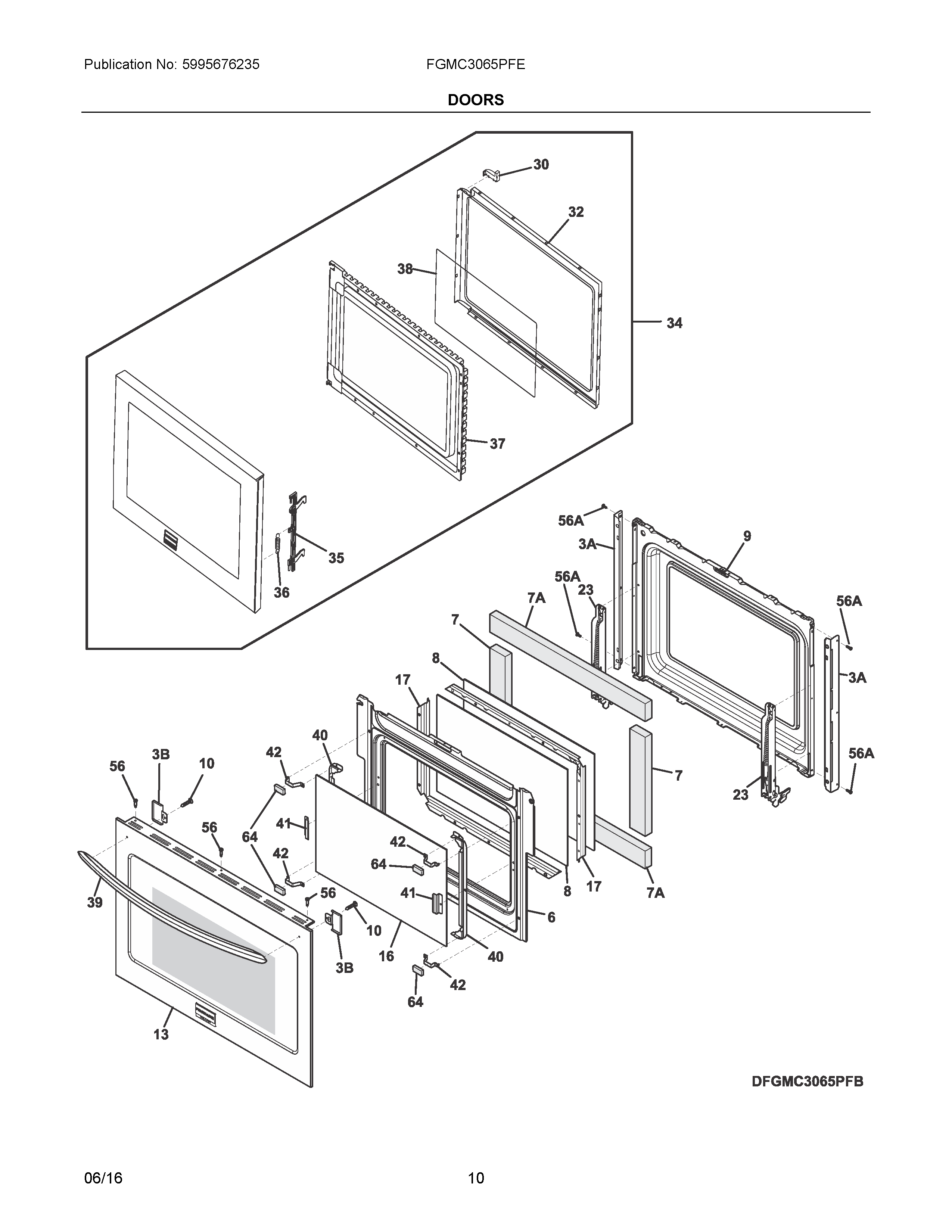

FGMC3065PFE 05 – DOORS

Products

Position	Product
NIA	316418900 Frigidaire Oven Screw
3A	139014401 Frigidaire Oven Trim
3B	WCI 318262111
6	139006905 Frigidaire Oven Baffle
7	318372017 Frigidaire Insulation
7A	318372016 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	139000411 Frigidaire Oven Liner
10	5304414648 Frigidaire Oven Screw
13	5304515669 Frigidaire Door Assembly
16	316446401 Frigidaire Oven Glass
17	318264731 Frigidaire Oven Spacer
23	316575915 Frigidaire Oven Hinge
30	5304442145 Frigidaire Microwave Door STOP
32	5304440861 Frigidaire Microwave CHOKE Cover
34	5304493449 Frigidaire Microwave Door Assembly
35	5304441893 Frigidaire Microwave Latch
36	5304440316 Frigidaire Microwave Spring Assembly
37	5304440857 Frigidaire Microwave Panel
38	5304440860 Frigidaire Microwave Seal
39	316554010 Frigidaire Stainless Steel Handle
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
56A	5303324184 Frigidaire Wall Oven Range Screw
56	5304480396 Frigidaire Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
