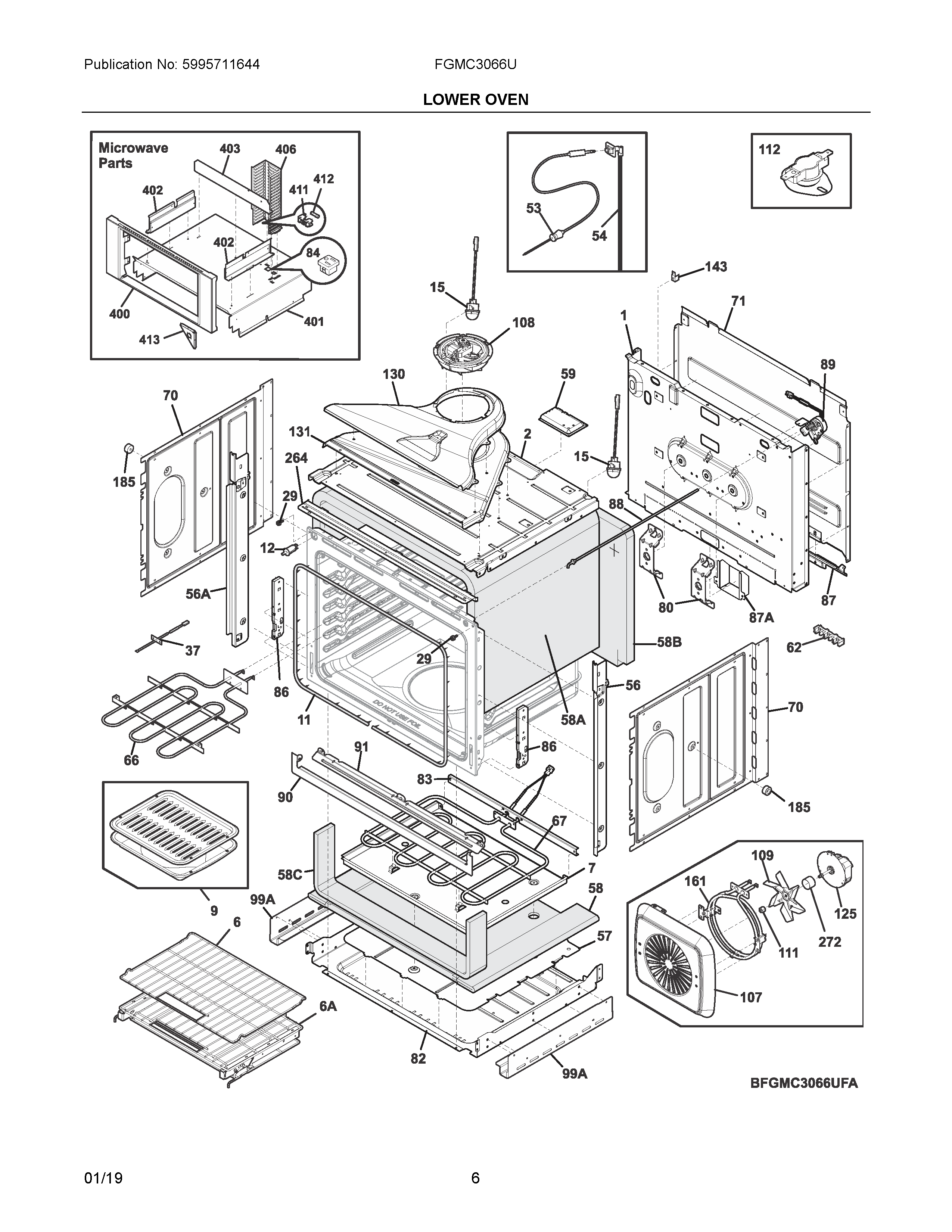

FGMC3066UDA 04 – LOWER OVEN

FGMC3066UDA 04 – LOWER OVEN

Written by

in

FGMC3066UDA 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NIA5304516521 Frigidaire Harness
NI807597603 Frigidaire Oven Screw
NI5304516502 Frigidaire Oven Harness
NI5304514911 Frigidaire Oven Harness
NI5304514908 Frigidaire Harness
NI5304470882 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIAWCI 318579001
NI5304506984 Frigidaire Harness Assembly
NI5303289910 Frigidaire Oven Screw
NIB5303311164 Frigidaire Oven Spring
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NI5303324184 Frigidaire Wall Oven Range Screw
NIA316001017 Frigidaire Screw
NIA318167300 Frigidaire Clip
1139035302 Frigidaire Panel
2808651302 Frigidaire Shield
65304514983 Frigidaire Oven Rack
6A5304518864 Frigidaire Rack Assembly
7BOX, BAKE ELEMENT
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
11139036701 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
565304521620 Frigidaire Trim
56A5304521622 Frigidaire Trim
575304521752 Frigidaire Shield
58B808905101 Frigidaire Insulation
58C807887503 Frigidaire Insulation
58808816501 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
59808931401 Frigidaire Vent Box Assembly
625304409888 Frigidaire Oven Terminal Block with Hardware
665304514924 Frigidaire Element
675304516286 Frigidaire Oven Heating Element
70139000601 Frigidaire Oven Shield
71808650302 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304522581 Frigidaire Shield
835304520860 Frigidaire Shield
845304516520 Frigidaire Assembly Outlet
86139026900 Frigidaire Receptacle
875304520557 Frigidaire Bracket
87A5304520866 Frigidaire Shield
88808721601 Frigidaire Rod
895304528925 Frigidaire Motor Assembly
905304514923 Frigidaire Oven Trim
915304518870 Frigidaire Oven Air Diverter Assembly
99A5304514974 Frigidaire Support
107139013903 Frigidaire Oven Vent Hood Cover
1085304528825 Frigidaire Assembly Motor Fan
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
112THERMOSTAT,SAFETY,125C
125139008504 Frigidaire Oven Motor
130808651606 Frigidaire Duct
131808651702 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
2645304500596 Frigidaire Trim
272139021700 Frigidaire Oven Tube
4005304516501 Frigidaire Frame Assembly
401PLATE, MW SUPPORT
402WCI 5304516494
403WCI 5304516493
4065304516503 Frigidaire Cover
4115304516517 Frigidaire Receptacle
4125304518868 Frigidaire Oven Fuse
413807874501 Frigidaire Microwave Gusset
