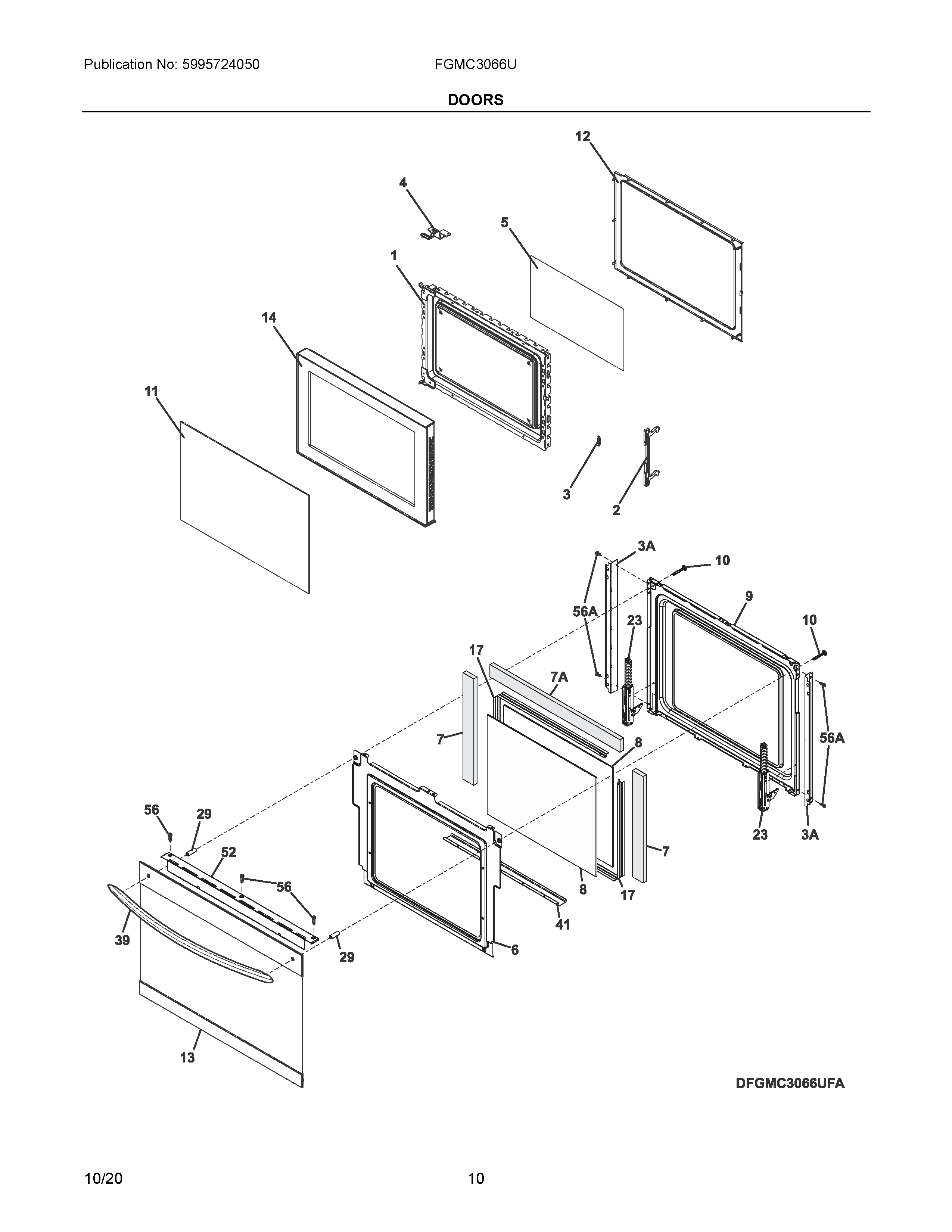

FGMC3066UDB 05 – DOORS

Products

Position	Product
NI	316021109 Frigidaire Oven Screw
NIA	316418900 Frigidaire Oven Screw
1	5304520033 Frigidaire Microwave Frame Assembly
2	5304519330 Frigidaire Microwave Latch Assembly
3	5304520034 Frigidaire Microwave Spring
3A	5304520787 Frigidaire Trim
4	5304519333 Frigidaire Microwave Hinge
5	5304520036 Frigidaire Microwave Film
6	808474502 Frigidaire Shield
7	807887502 Frigidaire Insulation
7A	5304505925 Frigidaire Insulation
8	316502502 Frigidaire Oven Glass
9	LINER, OVEN DOOR, BLACK
10	SCREW, TRUSS HEAD, 10 24X1.980
11	5304520037 Frigidaire Microwave Glass
12	5304520035 Frigidaire Microwave Gasket
13	5304514956 Frigidaire Door Assembly
14	5304520038 Frigidaire Microwave Panel
17	5304503172 Frigidaire Door Glass Spacer
23	139010300 Frigidaire Hinge
29	808296701 Frigidaire Oven Spacer
39	316554009 Frigidaire Oven Handle
41	SUPPORT, GLASS
52	5304520856 Frigidaire Trim
56	5303324184 Frigidaire Wall Oven Range Screw
