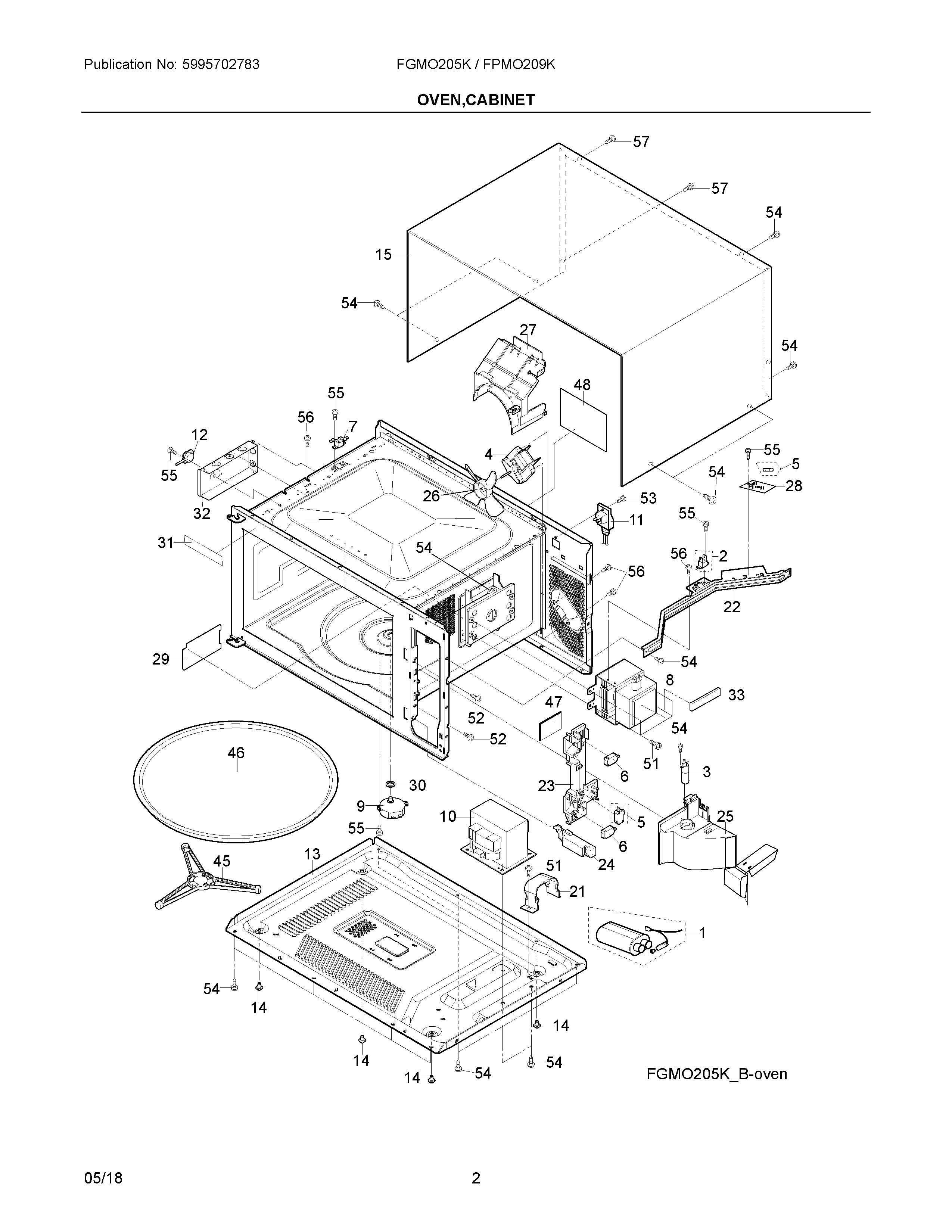

FGMO205KBB 02 – OVEN, CABINET

Products

Position	Product
1	5304478954 Frigidaire Microwave Capacitor
2	5303319550 Frigidaire Microwave Fuse
3	5304500304 Frigidaire Microwave Lamp Assembly with SO
4	5304493152 Frigidaire Microwave Motor
5	5304479020 Frigidaire Microwave Switch
6	5304493153 Frigidaire Microwave Door Switch
7	5304440780 Frigidaire Microwave Fuse
8	5304521745 Frigidaire Microwave Magnetron
9	5304448832 Frigidaire Microwave Motor
10	5304479021 Frigidaire Microwave Transformer
11	5304440784 Frigidaire Microwave Power Cord
12	5304440785 Frigidaire Microwave Sensor
13	BASE, UNIT CHASSIS
14	FOOT, CABINET SUPPORT
15	CABINET, OUTER CASING, BLACK
21	5304478941 Frigidaire Retainer
22	BRACKET, CHASSIS SUPPORT
23	5304503439 Frigidaire Microwave Latch Hook
24	5304485407 Frigidaire Microwave Door Release Assembly
25	DUCT, MAGNETRON
26	WCI 5304467720
27	WCI 5304478945
28	5304492543 Frigidaire Microwave Electronic Noise Filter
29	5304462314 Frigidaire Microwave Waveguide Cover
30	5304467718 Frigidaire Microwave Bushing
31	LABEL
32	DUCT, HUMIDITY SENSOR
33	CUSHION
45	5304467717 Frigidaire Microwave Glass Tray Support
46	5304529482 Frigidaire Glass Tray Assembly
47	5304467771 Frigidaire Microwave Label
48	5304467770 Frigidaire Microwave Label
51	5304467780 Frigidaire Microwave Screw
52	5303319641 Frigidaire Screw
53	5304462315 Frigidaire Microwave Screw
54	5304467777 Frigidaire Microwave Screw
54	5304502863 Frigidaire Microwave Screw
55	5304451550 Frigidaire Screw
56	5304450253 Frigidaire Microwave Screw
57	5304440873 Frigidaire Screw
