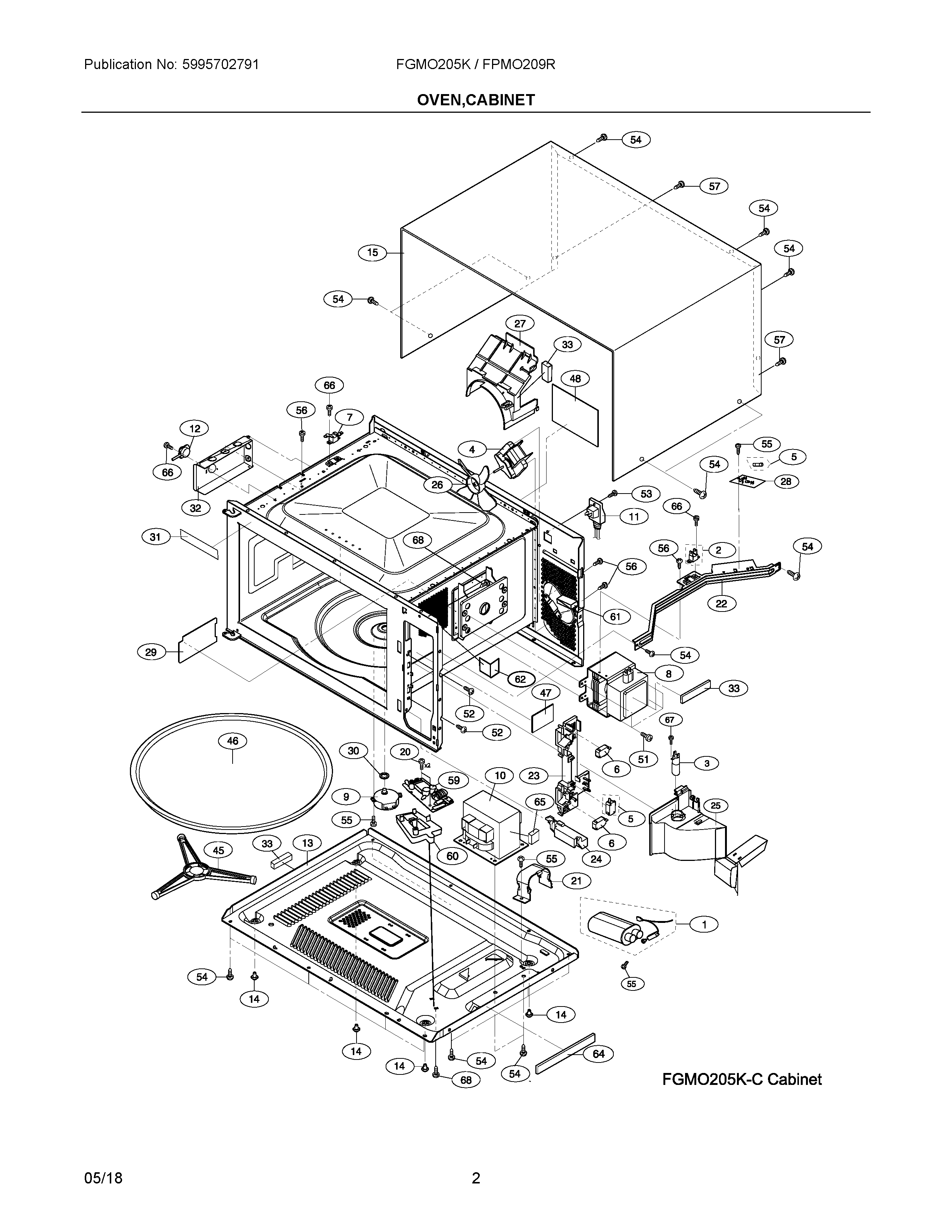

FGMO205KBC 02 – OVEN, CABINET

FGMO205KBC 02 – OVEN, CABINET

Written by

in

FGMO205KBC 02 – OVEN, CABINET

Products

PositionProduct
15304478954 Frigidaire Microwave Capacitor
25303319550 Frigidaire Microwave Fuse
35304500304 Frigidaire Microwave Lamp Assembly with SO
45304493152 Frigidaire Microwave Motor
55304479020 Frigidaire Microwave Switch
65304493153 Frigidaire Microwave Door Switch
75304440780 Frigidaire Microwave Fuse
85304521745 Frigidaire Microwave Magnetron
95304440021 Frigidaire Microwave Oven Turntable Drive Motor
105304479021 Frigidaire Microwave Transformer
115304440784 Frigidaire Microwave Power Cord
125304440785 Frigidaire Microwave Sensor
13BASE, UNIT CHASSIS
14FOOT, CABINET SUPPORT
15CABINET, OUTER CASING, BLACK
205304456930 Frigidaire Microwave Screw
215304478941 Frigidaire Retainer
22BRACKET, CHASSIS SUPPORT
235304503439 Frigidaire Microwave Latch Hook
245304485407 Frigidaire Microwave Door Release Assembly
25DUCT, MAGNETRON
265304493155 Frigidaire Microwave Fan Blade
27DUCT, COOLING FAN
285304507217 Frigidaire Microwave Filter
295304462314 Frigidaire Microwave Waveguide Cover
305304467718 Frigidaire Microwave Bushing
31LABEL, MENU
32DUCT, HUMIDITY SENSOR
33CUSHION
455304467717 Frigidaire Microwave Glass Tray Support
465304529482 Frigidaire Glass Tray Assembly
475304467771 Frigidaire Microwave Label
485304467770 Frigidaire Microwave Label
515304467780 Frigidaire Microwave Screw
525303319641 Frigidaire Screw
535304462315 Frigidaire Microwave Screw
545304467777 Frigidaire Microwave Screw
545304502863 Frigidaire Microwave Screw
555304451550 Frigidaire Screw
565304450253 Frigidaire Microwave Screw
575304440873 Frigidaire Screw
595304507220 Frigidaire Microwave Power Unit
605304507222 Frigidaire Holder
61CUSHION, FAN MOTOR
62CUSHION, CAVITY, CONTROL PANEL
64CUSHION, BASE PLATE
65WCI 5304503485
66WCI 5304467781
67SCREW, 4 MM X 10 MM, WHITE
685304505546 Frigidaire Screw
