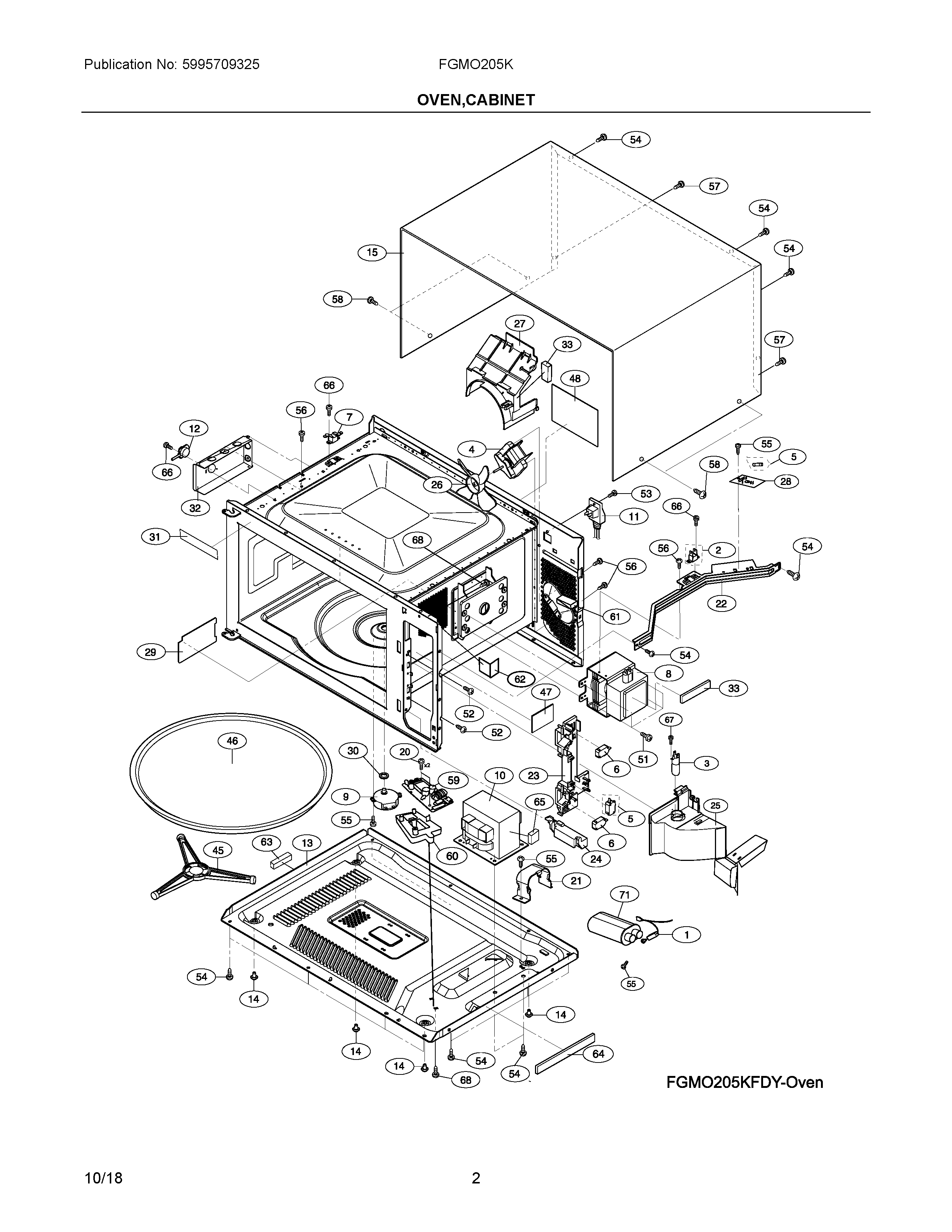

FGMO205KFDY 02 – OVEN,CABINETadmin2025-04-26T09:06:13+00:00FGMO205KFDY 02 – OVEN,CABINET
Products
| Position | Product |
|---|
| 1 | 5304493150 Frigidaire Microwave Assembly Rectifier |
| 2 | 5303319550 Frigidaire Microwave Fuse |
| 3 | 5304500304 Frigidaire Microwave Lamp Assembly with SO |
| 4 | 5304493152 Frigidaire Microwave Motor |
| 5 | 5304479020 Frigidaire Microwave Switch |
| 6 | 5304493153 Frigidaire Microwave Door Switch |
| 7 | 5304440780 Frigidaire Microwave Fuse |
| 8 | 5304521745 Frigidaire Microwave Magnetron |
| 9 | 5304440021 Frigidaire Microwave Oven Turntable Drive Motor |
| 10 | 5304479021 Frigidaire Microwave Transformer |
| 11 | 5304440784 Frigidaire Microwave Power Cord |
| 12 | 5304516266 Frigidaire Assembly-Sensor |
| 13 | BASE, UNIT CHASSIS |
| 14 | FOOT, CABINET SUPPORT |
| 15 | CABINET, OUTER CASING, BLACK |
| 20 | 5304456930 Frigidaire Microwave Screw |
| 21 | 5304478941 Frigidaire Retainer |
| 22 | BRACKET, CHASSIS SUPPORT |
| 23 | 5304503439 Frigidaire Microwave Latch Hook |
| 24 | 5304485407 Frigidaire Microwave Door Release Assembly |
| 25 | DUCT, MAGNETRON |
| 26 | 5304493155 Frigidaire Microwave Fan Blade |
| 27 | DUCT, COOLING FAN |
| 28 | 5304507217 Frigidaire Microwave Filter |
| 29 | 5304462314 Frigidaire Microwave Waveguide Cover |
| 30 | 5304467718 Frigidaire Microwave Bushing |
| 31 | LABEL |
| 32 | DUCT, HUMIDITY SENSOR |
| 33 | 5304493207 Frigidaire Cushion |
| 45 | 5304467717 Frigidaire Microwave Glass Tray Support |
| 46 | 5304529482 Frigidaire Glass Tray Assembly |
| 47 | 5304467771 Frigidaire Microwave Label |
| 48 | 5304467770 Frigidaire Microwave Label |
| 51 | 5304467780 Frigidaire Microwave Screw |
| 52 | 5303319641 Frigidaire Screw |
| 53 | 5304462315 Frigidaire Microwave Screw |
| 54 | 5304502863 Frigidaire Microwave Screw |
| 55 | 5304451550 Frigidaire Screw |
| 56 | 5304450253 Frigidaire Microwave Screw |
| 57 | 5304440873 Frigidaire Screw |
| 58 | 5304467777 Frigidaire Microwave Screw |
| 59 | 5304507220 Frigidaire Microwave Power Unit |
| 60 | 5304507222 Frigidaire Holder |
| 61 | CUSHION, FAN MOTOR |
| 62 | CUSHION, CAVITY, CONTROL PANEL |
| 63 | CUSHION |
| 64 | CUSHION, BASE PLATE |
| 65 | WCI 5304503485 |
| 66 | WCI 5304467781 |
| 67 | SCREW, 4 MM X 10 MM, WHITE |
| 68 | 5304505546 Frigidaire Screw |
| 71 | 5304487566 Frigidaire Microwave Capacitor |
