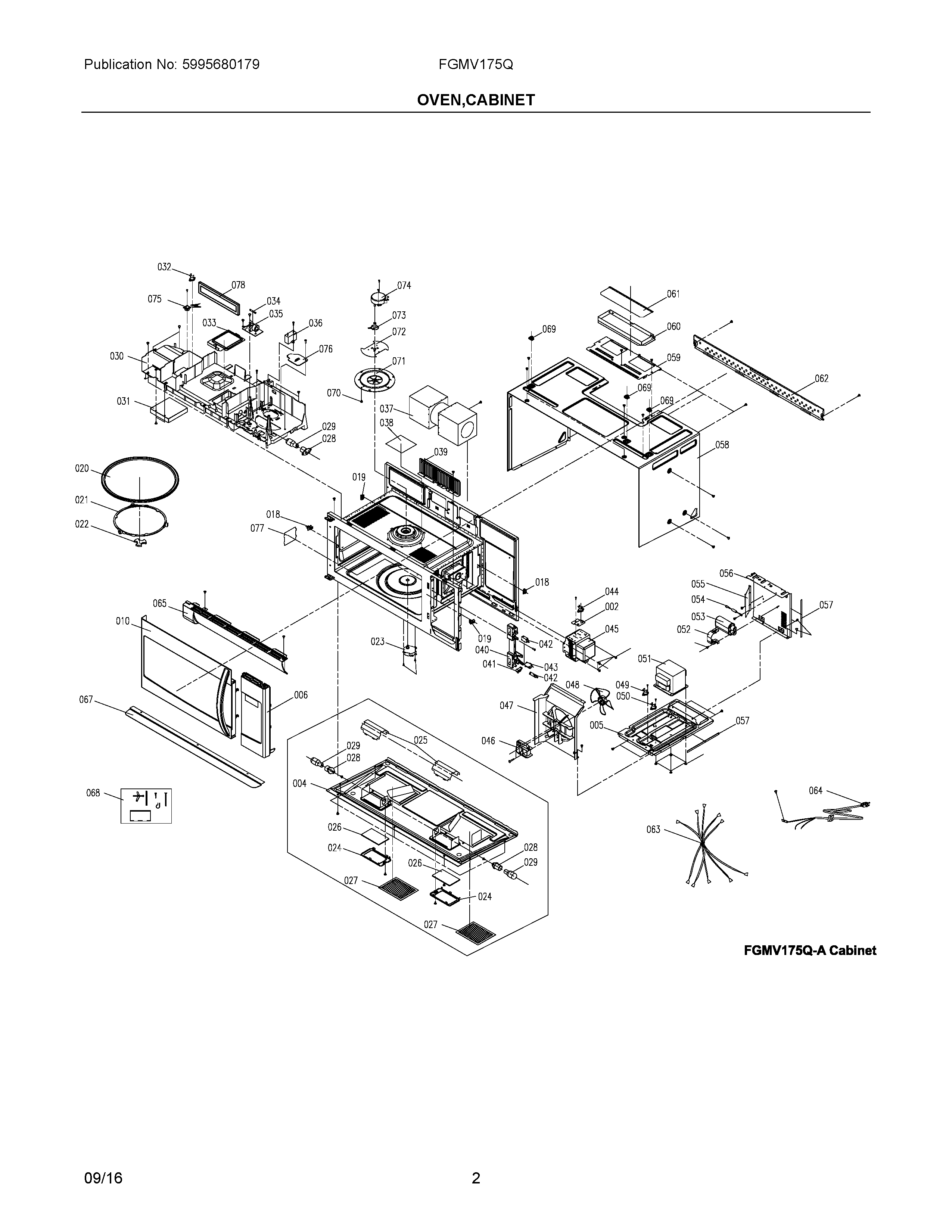

FGMV175QFA 02 – OVEN, CABINET

FGMV175QFA 02 – OVEN, CABINET

Written by

in

FGMV175QFA 02 – OVEN, CABINET

Products

Position	Product
NI	5304499876 Frigidaire Microwave Screw Kit
2	WCI 5304472439
4	WCI 5304481486
5	WCI 5304464063
6	5304494845 Frigidaire Microwave Assembly Control
10	DOOR ASSEMBLY,STAINLESS
18	5304509642 Frigidaire Microwave Support Assembly
19	5304509643 Frigidaire Microwave Support Bracket
20	5304509621 Frigidaire Microwave Glass Tray
21	5304509438 Frigidaire Microwave Support Glass Tray
22	5304509622 Frigidaire Microwave Drive Coupling Glass Tray
23	5304509440 Frigidaire Microwave Motor
24	5304481505 Frigidaire Microwave Frame
25	WCI 5304464104
26	5304464103 Frigidaire Microwave Lens
27	5304509444 Frigidaire Microwave Filter
28	5304464091 Frigidaire Microwave Lamp Holder
29	5304461116 Frigidaire Microwave Light Bulb
30	WCI 5304491638
31	WCI 5304472452
32	5304509449 Frigidaire Microwave Thermostat
33	WCI 5304464111
34	5304509451 Frigidaire Microwave Fuse
35	5304509452 Frigidaire Microwave Filter
36	CAPACITOR, START
37	5304491613 Frigidaire Microwave Motor
38	WCI 5304491557
39	WCI 5304464256
40	LATCH HOOK
41	5304509458 Frigidaire Microwave Lever Assembly
42	SWITCH
43	5304509459 Frigidaire Microwave Micro Switch
44	5304509469 Frigidaire Microwave Thermostat
45	5304519335 Frigidaire Microwave Magnetron
46	5304464118 Frigidaire Microwave Motor
47	WCI 5304478920
48	5304509473 Frigidaire Microwave Fan Blade
49	5304509474 Frigidaire Microwave High Limit Thermostat
50	5304509475 Frigidaire Microwave Thermostat
51	5304515184 Frigidaire Microwave Transformer
52	WCI 5304491616
53	5304509478 Frigidaire Microwave Capacitor
54	5304509479 Frigidaire Microwave Diode
55	WCI 5304472454
56	WCI 5304472451
57	5304491603 Frigidaire Cushion
58	WCI 5304472455
59	WCI 5304472453
60	5304509485 Frigidaire Microwave Vent Damper
61	5304509486 Frigidaire Microwave Vent Damper
62	5304509487 Frigidaire Microwave Mounting Bracket
63	WCI 5304494122
64	5304512501 Frigidaire Power Cord
65	5304481506 Frigidaire Microwave Grille
67	Shield,heat ,base plate
68	5304503192 Frigidaire Microwave Mounting Kit
69	5304509436 Frigidaire Microwave Mounting Nut Kit
70	5304509625 Frigidaire Microwave Pin
71	WCI 5304491558
72	5304509649 Frigidaire Microwave Blade Fan
73	5304509650 Frigidaire Microwave Shaft Assembly
74	5304488389 Frigidaire Microwave Motor
75	5304509652 Frigidaire Microwave Sensor
76	WCI 5304491640
77	5304509435 Frigidaire Microwave Waveguide Cover
78	FILTER, CHARCOAL, 2" X 10"
