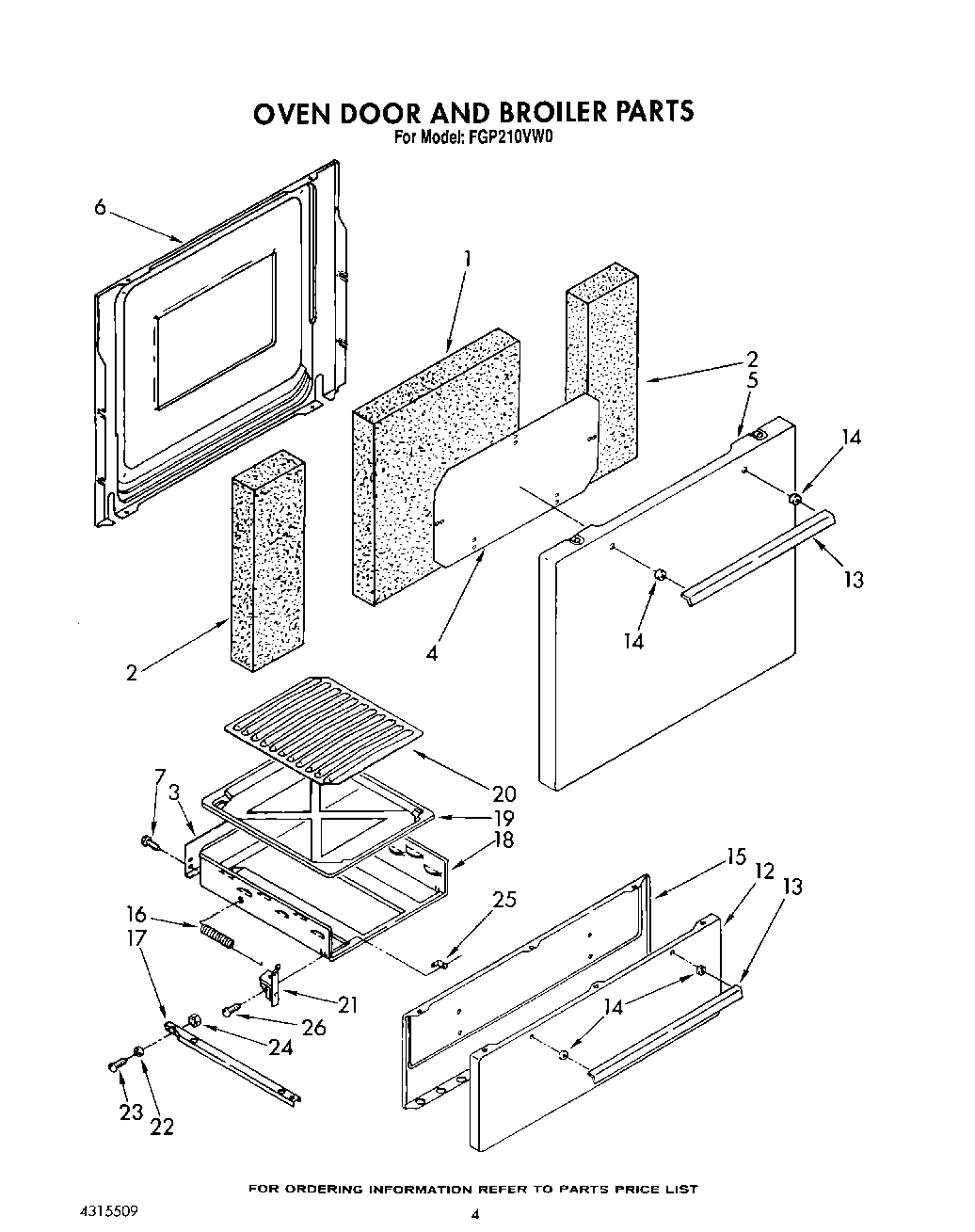

FGP210VL0 03 – OVEN DOOR AND BROILER

Products

Position	Product
1	Insulation
2	Insulation
3	Backer, Carriage
4	Baffle
5	Panel, Door (Almond)
5	Panel, Door (White)
6	Liner, Door
7	Screws (3)
12	Panel, Broiler (White)
12	Panel, Broiler (Almond)
13	Handle, Broiler Door
13	Screw, 10-12 X 5/8 (2)
13	Washer (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Upper (2)
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	W10080180 Whirlpool Nut
21	Hinge, Door (R.H.)
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door (L.H.)
22	Roller (2)
23	Pin, Roller (2)
25	Plate (2)
26	Screw (2)
