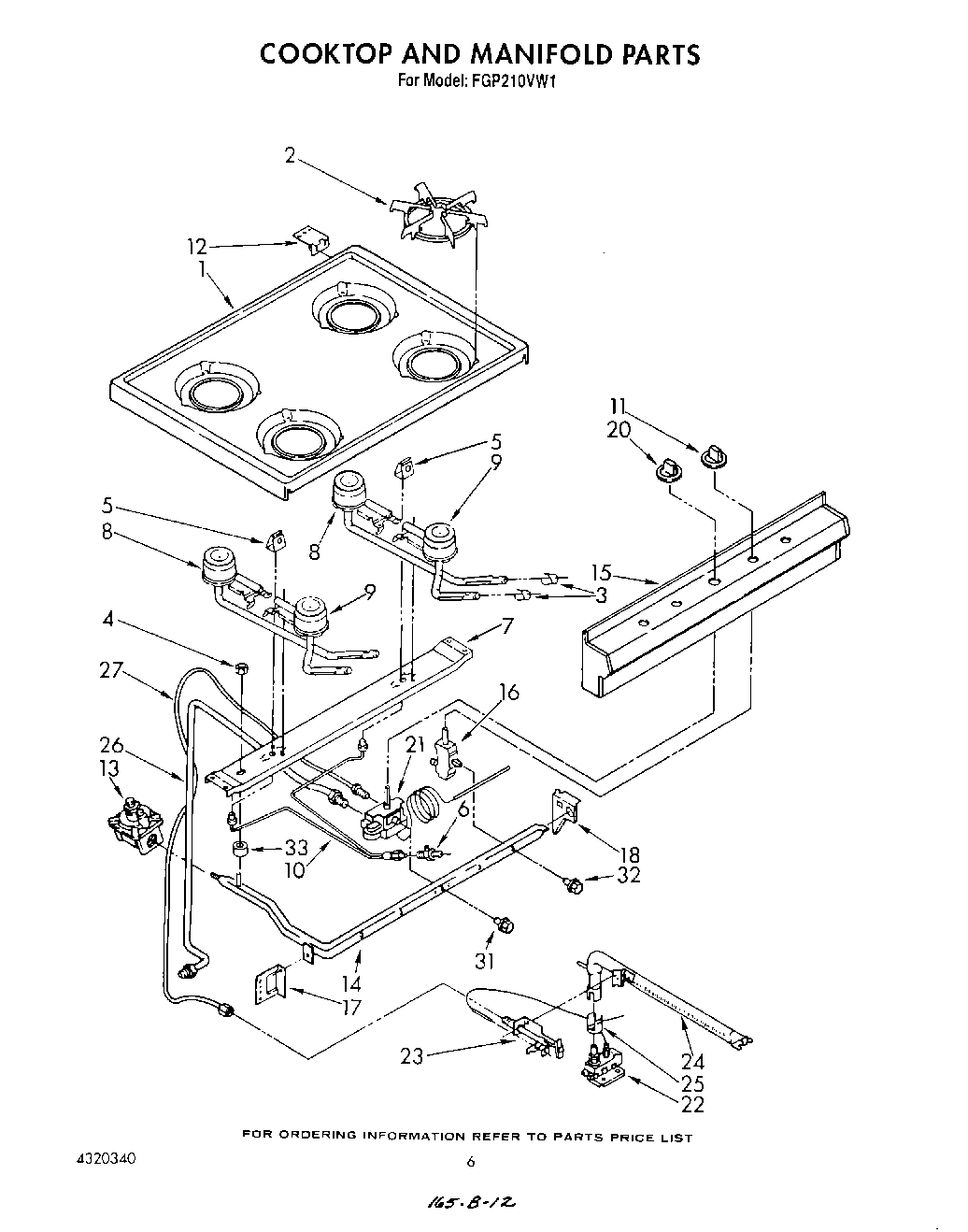

FGP210VW1 05 – COOKTOP AND MANIFOLD , LITERATURE A

Products

Position	Product
	Guide, Use & Care
	Instuctions, Installation
	List, Repair Parts
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
10	Tubing, Pilot
11	Knob, Gas Valve
12	SCREW
12	Speed Clip (4)
12	Hinge, Maintop (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 32)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
31	Bolt, Thermostat Mounting (2)
32	Bolt, Valve Mounting
33	Spacer, Manifold
33	FOIL, ALUMINUM OVEN (18“ X 25 )
33	WPW10208653 Whirlpool Insulation
