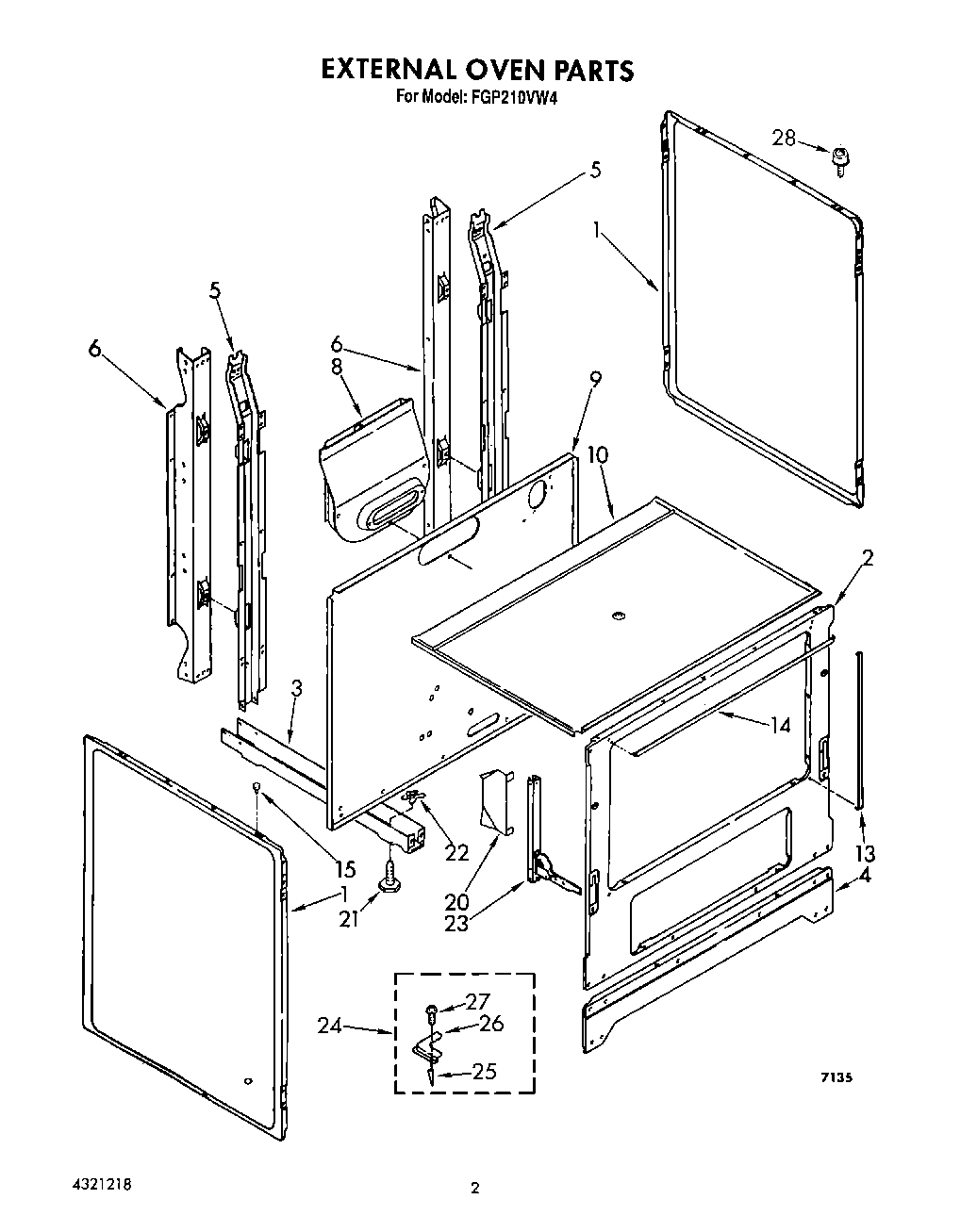

FGP210VW4 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
8	Flue, Box
8	SCREW
9	Panel, Rear
10	WP308685 Whirlpool Microwave Screw
10	Burner Box
13	Seal, Door (2) (Side)
13	Seal, Door (2) (Side)
14	Seal, Door (Top) (Light Gray)
14	Seal, Door (Top) (Charcoal Gray)
15	Bumper, Cooktop (2)
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Hinge, Door (2)
24	Anti Tip Kit
25	Anchor (2)
26	Bracket
27	Screw
28	Stud Screw (2)
28	Locator stud (2)
