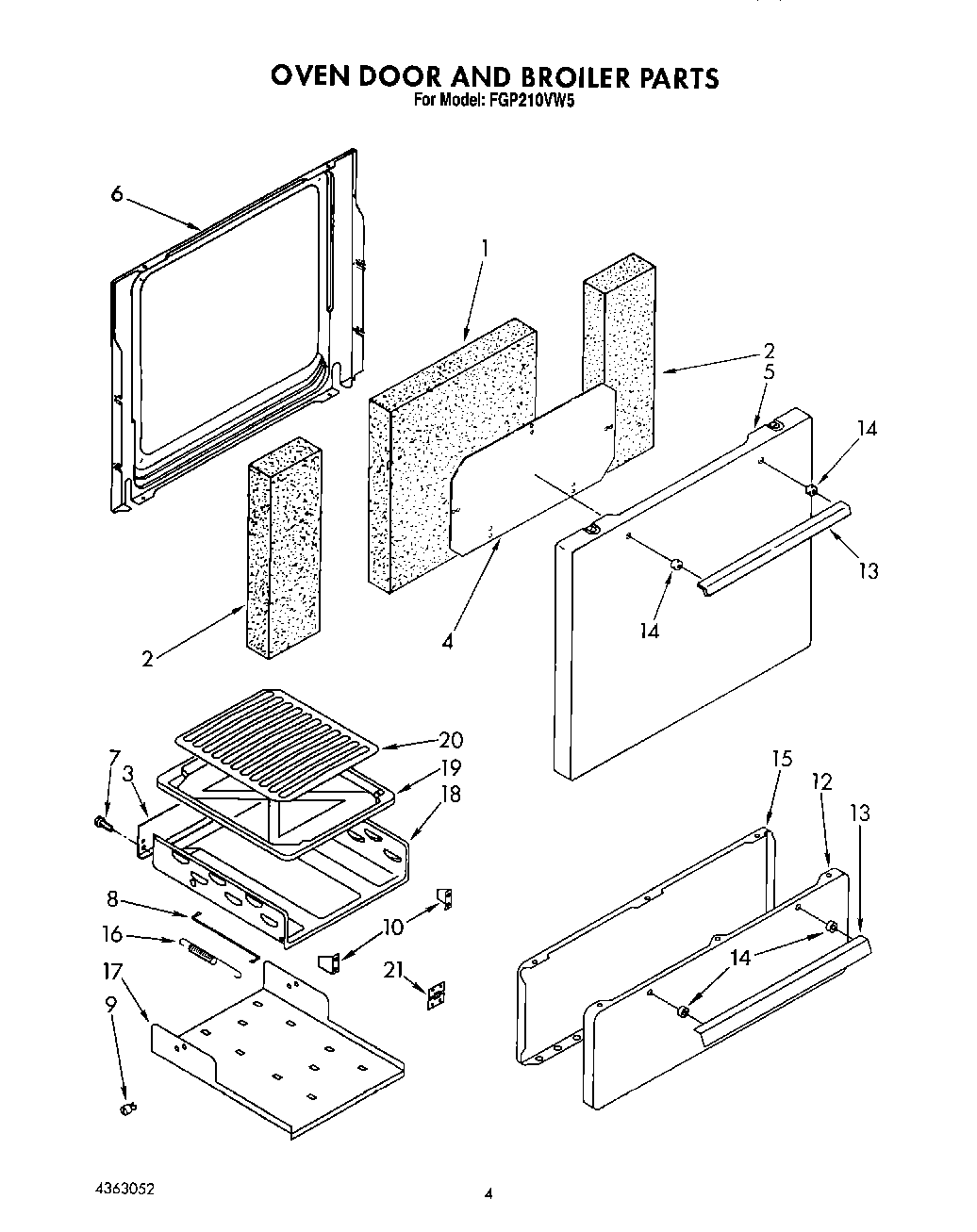

FGP210VW5 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Insulation
2	Insulation
3	Backer, Carriage
4	Baffle
5	Panel, Oven Door (White)
5	Panel, Door (Almond)
6	Liner, Door
7	Screws (3)
8	Rod, Push-Pull
9	W10709871 Whirlpool Drawer Glide
10	Bracket
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
12	Screw, 10-12 x 1/2 (4)
13	Handle, Broiler Door
13	Washer (2)
13	Screw, 10-12 X 5/8 (2)
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Carriage Broiler
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	WP308685 Whirlpool Microwave Screw
21	Hinge, Door
