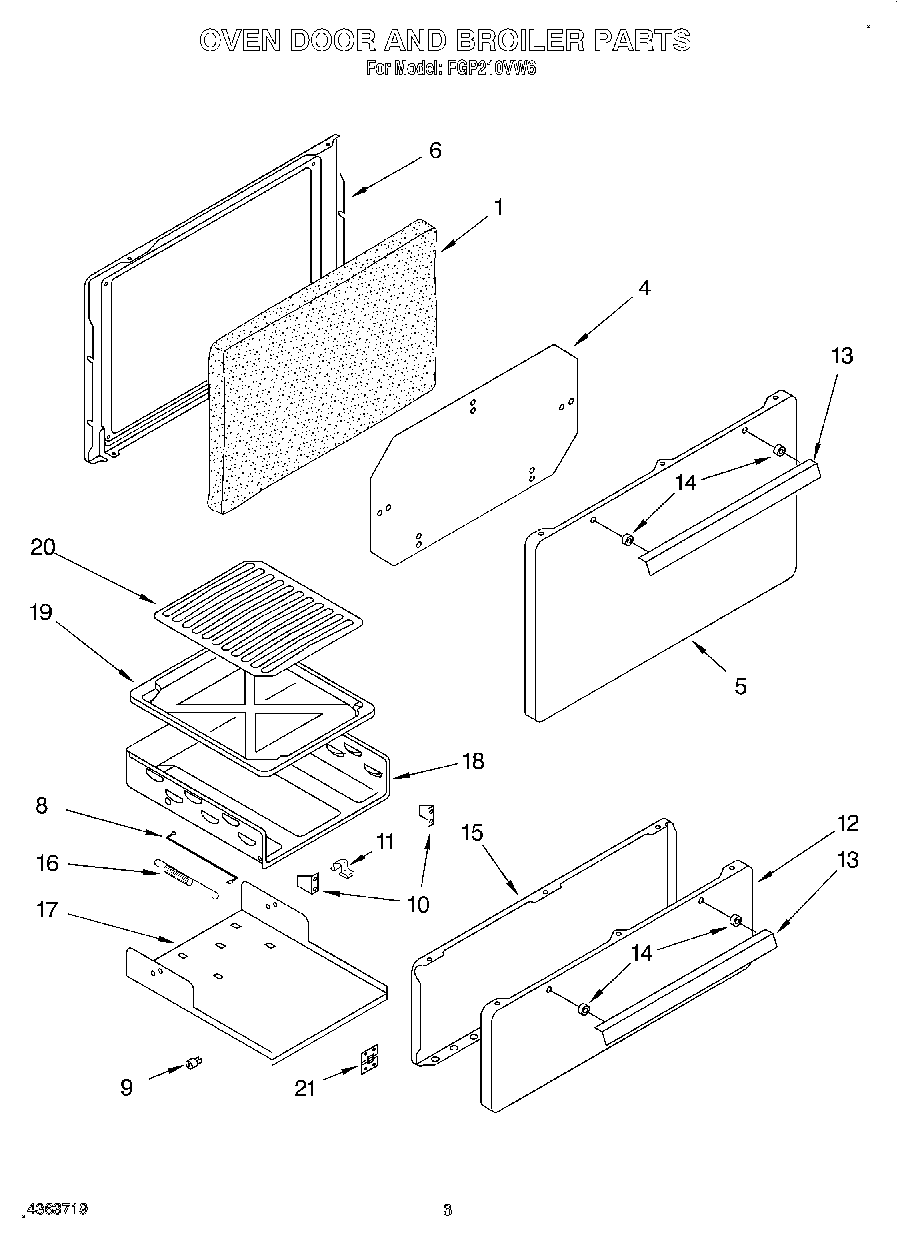

FGP210VW6 02 – OVEN DOOR AND BROILER

Products

PositionProduct
1Insulation
4Baffle
5Panel, Door (White)
5Frame
5Panel, Door (Almond)
6Liner, Door
8Rod, Push-Pull
9W10709871 Whirlpool Drawer Glide
10Bracket
11Clip, Broiler
12Panel, Broiler (White)
12Panel, Broiler (Almond)
12Screw, 10-12 x 1/2 (4)
13Screw, 10-12 X 5/8 (2)
13Panel, Broiler (Screw)
13Handle, Broiler Door
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Carriage Broiler
18Carriage, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21WP308685 Whirlpool Microwave Screw
21Hinge, Door
