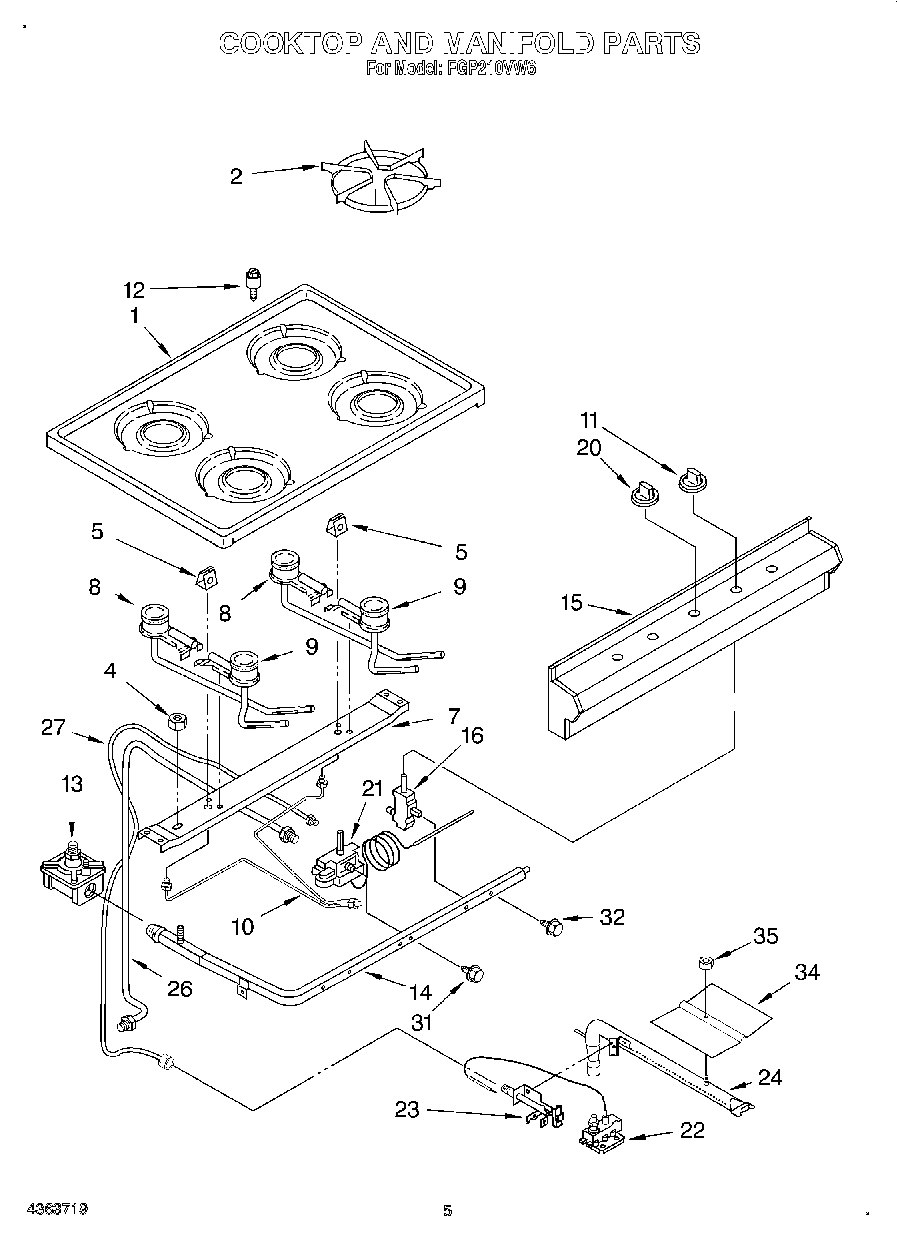

FGP210VW6 03 – COOKTOP AND MANIFOLDadmin2025-04-26T08:40:02+00:00FGP210VW6 03 – COOKTOP AND MANIFOLD
Products
| Position | Product |
|---|
| 1 | Cooktop (White) |
| 1 | Cooktop (Almond) |
| 2 | Grate (4) |
| 4 | Nut, Hex |
| 5 | Cover, Pilot (2) |
| 7 | Support, Burner |
| 8 | Burner, Rear (2) |
| 9 | Screw |
| 9 | Burner, Front (2) |
| 10 | Tubing, Pilot |
| 11 | Knob, Gas Valve |
| 12 | Speed Clip (4) |
| 12 | Locator Stud (2) |
| 13 | Regulator, Pressure |
| 14 | Manifold |
| 15 | Panel, Manifold |
| 16 | Valve, 90~ (4) (Includes Ill. No. 33) |
| 20 | Knob, Thermostat |
| 21 | Thermostat (Includes Ill. No. 32) |
| 22 | Valve, Safety |
| 23 | Pilot |
| 24 | Screw |
| 24 | Burner, Oven |
| 26 | Tubing 3/8`` (Thermostat To Safety Valve) |
| 27 | Tubing 3/16`` (Thermostat To Pilot) |
| 31 | Bolt, Thermostat Mounting (2) |
| 32 | Bolt, Valve Mounting |
| 34 | Spreader, Flame |
| 35 | W10080180 Whirlpool Nut |
