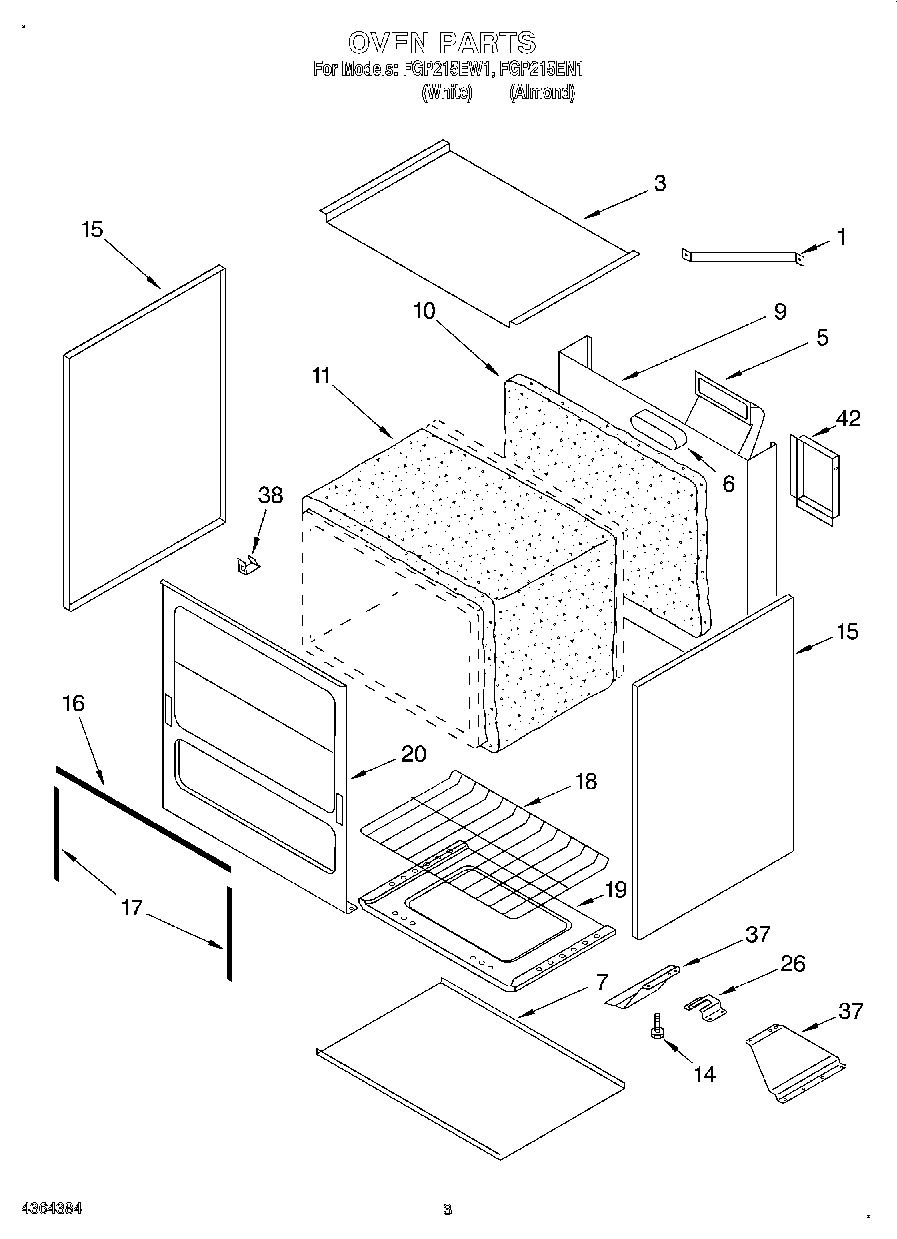

FGP215EN1 02 – OVEN, LIT/OPTIONAL

FGP215EN1 02 – OVEN, LIT/OPTIONAL

Written by

in

FGP215EN1 02 – OVEN, LIT/OPTIONAL

Products

PositionProduct
Literature (Use & Care Guide)
1Brace, Back
3Bottom, Burner Box
5Flue Box
6Ring, Flue Box
7Bottom, Main
9Main Back
10Insulation, Back
11Insulation, Wrap
14LEG, LEVELER
15Panel, Side (Almond)
15Panel, Side (White)
16Gasket, Oven Door Side
17Gasket, Oven Side
18Rack, Oven
19Bottom, Oven
20Frame, Front
268190785 Whirlpool Oven Bracket
37Support, Side (Right)
37Support, Side (Left)
38CLIP, THERMOBULB
42Harness, Wire (Red Jumper)
42Harness, Wire (Black Jumper)
42Strain Relief
42Wire Bushing
42Power Cord
42Box, Power
42Thermostat Wire
