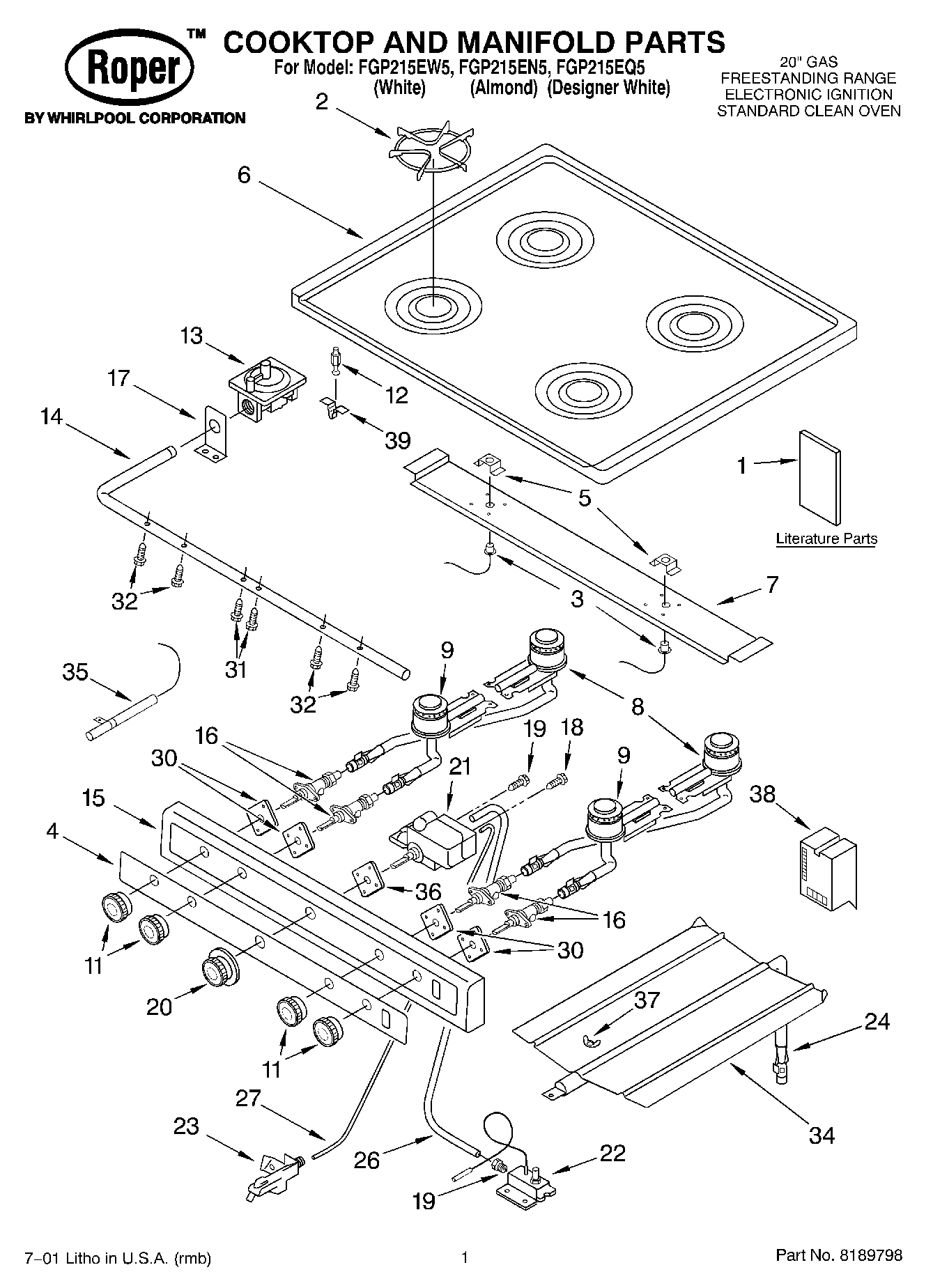

FGP215EN5 01 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
1	Literature (Use & Care Guide)
1	Wiring Diagram
2	Grate (4)
3	Ignitor, Surface (Right)
3	Electrode, Burner
4	Overlay, Manifold (Black)
4	Overlay, Manifold (White)
5	Screw, 8-18 x 3/8
5	Cover, Pilot
6	Cooktop (Almond)
6	Cooktop (White)
7	Support, Burner
8	Burner, Top Rear
9	Burner, Top Front
11	Knob, Burner (Black)
11	Knob, Burner (White)
12	Strike Pin W/Nut
13	Pressure Regulator
14	Pipe, Manifold
15	Panel, Manifold (Includes No.4) (Black)
15	Panel, Manifold (Includes No.4) (White)
16	Valve, Burner (Includes No.32)
17	Support, Manifold
18	Loxit Fitting 3/16
19	Loxit Fitting 3/8``
20	Knob, Thermostat (Black)
20	Knob, Thermostat (White)
21	Thermostat, Oven (Includes No. 31)
22	Screw, 10-12 x 1/2
22	Valve, Safety
23	Pilot, Oven Burner
24	Burner, Oven
24	Screw, 10-24 x 5/8
26	Tubing, Oven 3/8`` O.D.
27	Tubing, Pilot 3/16`` O.D.
30	Switch, Valve
31	Bolt, Thermostat
32	Bolt, Valve Mtg.
34	Flame Spreader
35	Screw, 6-32 x 1/4
35	Electrode, Oven
36	Switch, Thermostat
37	Wingnut
38	Spark Module
39	CATCH, STRIKEPIN
