FGP215EQ6 02 – OVEN

FGP215EQ6 02 – OVEN

Written by

in

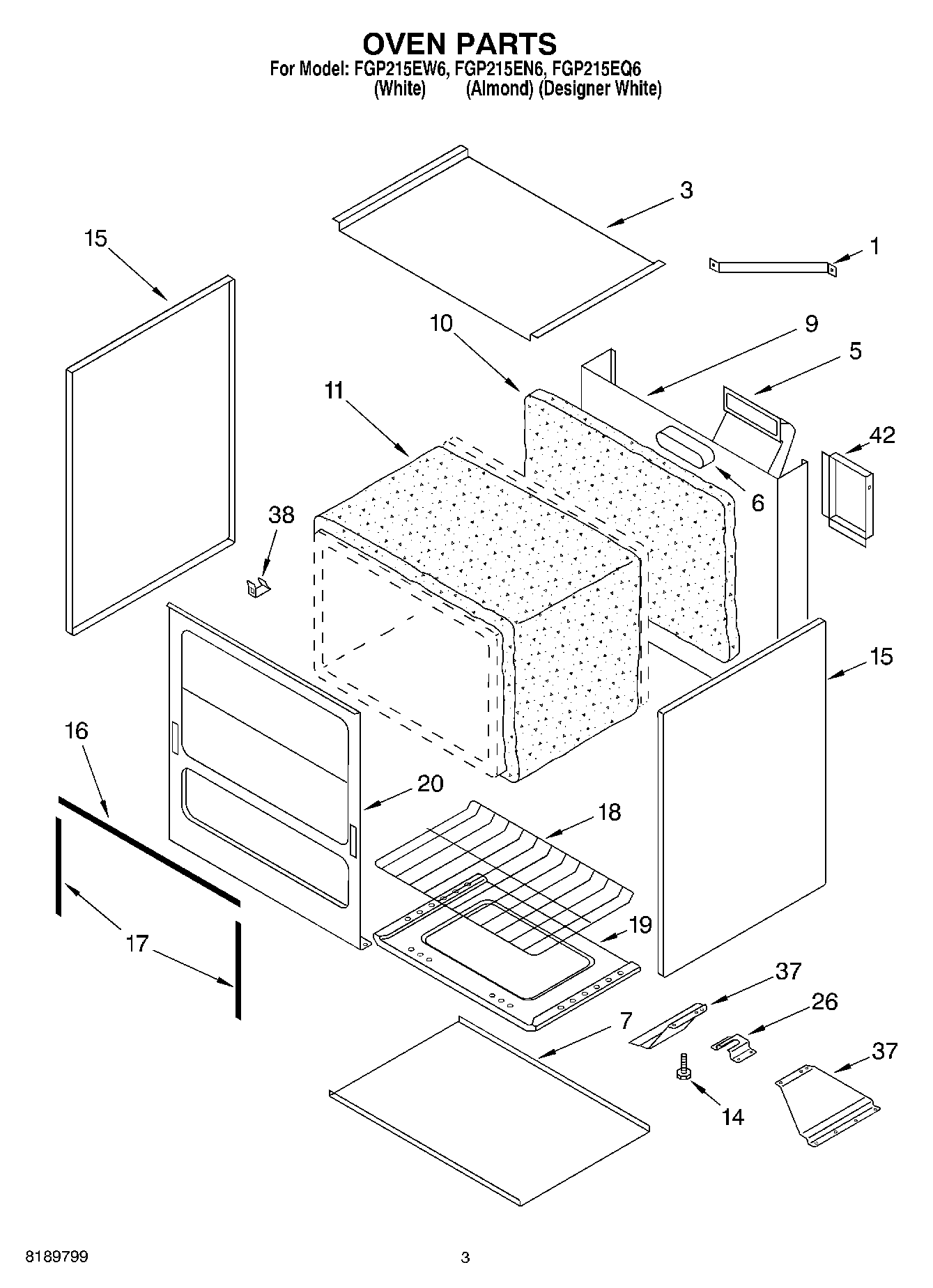

FGP215EQ6 02 – OVEN

Products

PositionProduct
1Brace, Back
3Bottom, Burner Box
5Flue Box
6Ring, Flue Box
7Bottom, Main
9Main Back
10Insulation, Back
11Insulation, Wrap
14LEG, LEVELER
15Panel, Side (White)
16Gasket, Oven Door Side
17Gasket, Oven Side
18Rack, Oven
19Bottom, Oven
20Frame, Front
268190785 Whirlpool Oven Bracket
37Support, Side (Left)
37Support, Side (Right)
38CLIP, THERMOBULB
42Box, Power
42Strain Relief
42Wire Bushing
42Power Cord
42Thermostat Wire
