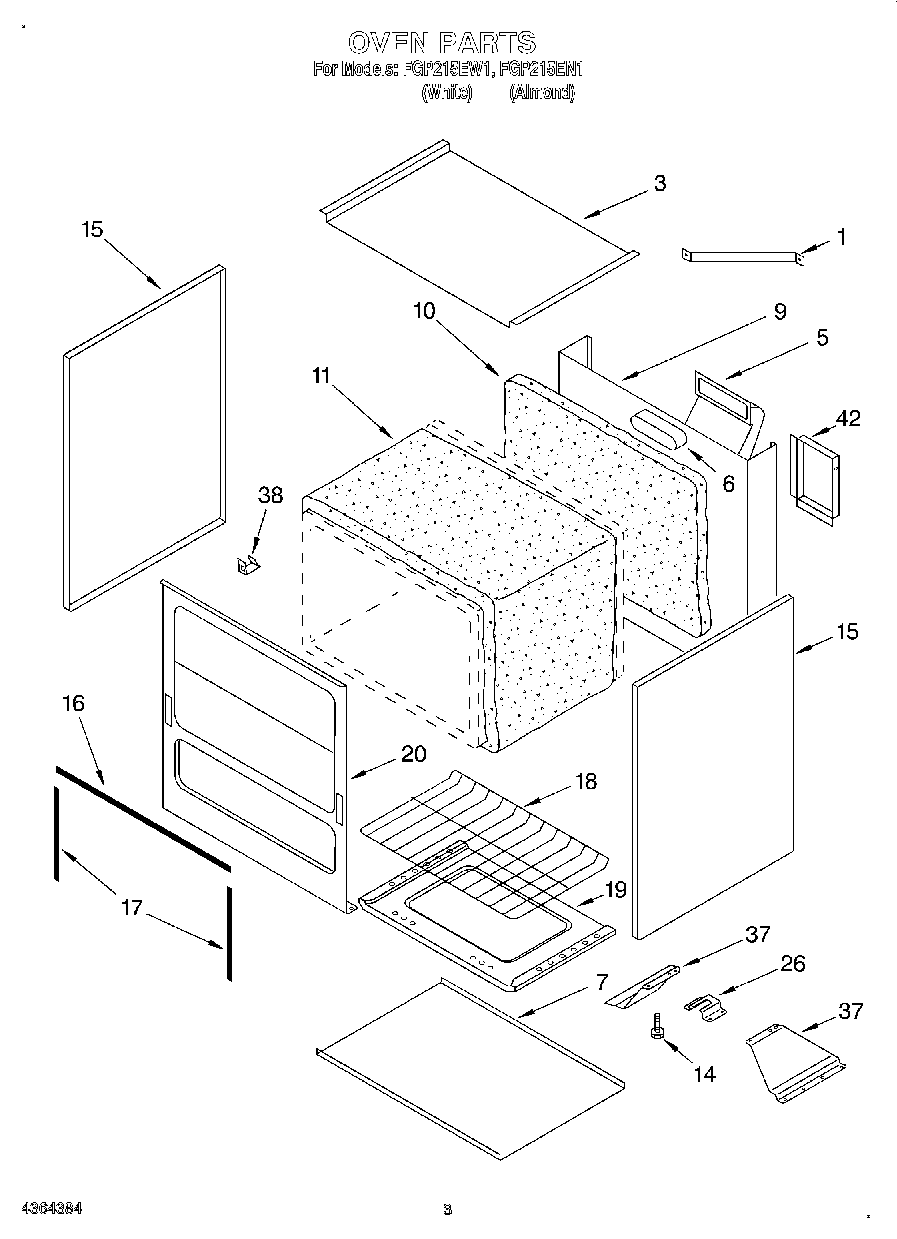

FGP215EW1 02 – OVEN, LIT/OPTIONALadmin2025-04-26T08:40:27+00:00FGP215EW1 02 – OVEN, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Literature (Use & Care Guide) |
| 1 | Brace, Back |
| 3 | Bottom, Burner Box |
| 5 | Flue Box |
| 6 | Ring, Flue Box |
| 7 | Bottom, Main |
| 9 | Main Back |
| 10 | Insulation, Back |
| 11 | Insulation, Wrap |
| 14 | LEG, LEVELER |
| 15 | Panel, Side (Almond) |
| 15 | Panel, Side (White) |
| 16 | Gasket, Oven Door Side |
| 17 | Gasket, Oven Side |
| 18 | Rack, Oven |
| 19 | Bottom, Oven |
| 20 | Frame, Front |
| 26 | 8190785 Whirlpool Oven Bracket |
| 37 | Support, Side (Right) |
| 37 | Support, Side (Left) |
| 38 | CLIP, THERMOBULB |
| 42 | Harness, Wire (Red Jumper) |
| 42 | Harness, Wire (Black Jumper) |
| 42 | Strain Relief |
| 42 | Wire Bushing |
| 42 | Power Cord |
| 42 | Box, Power |
| 42 | Thermostat Wire |
