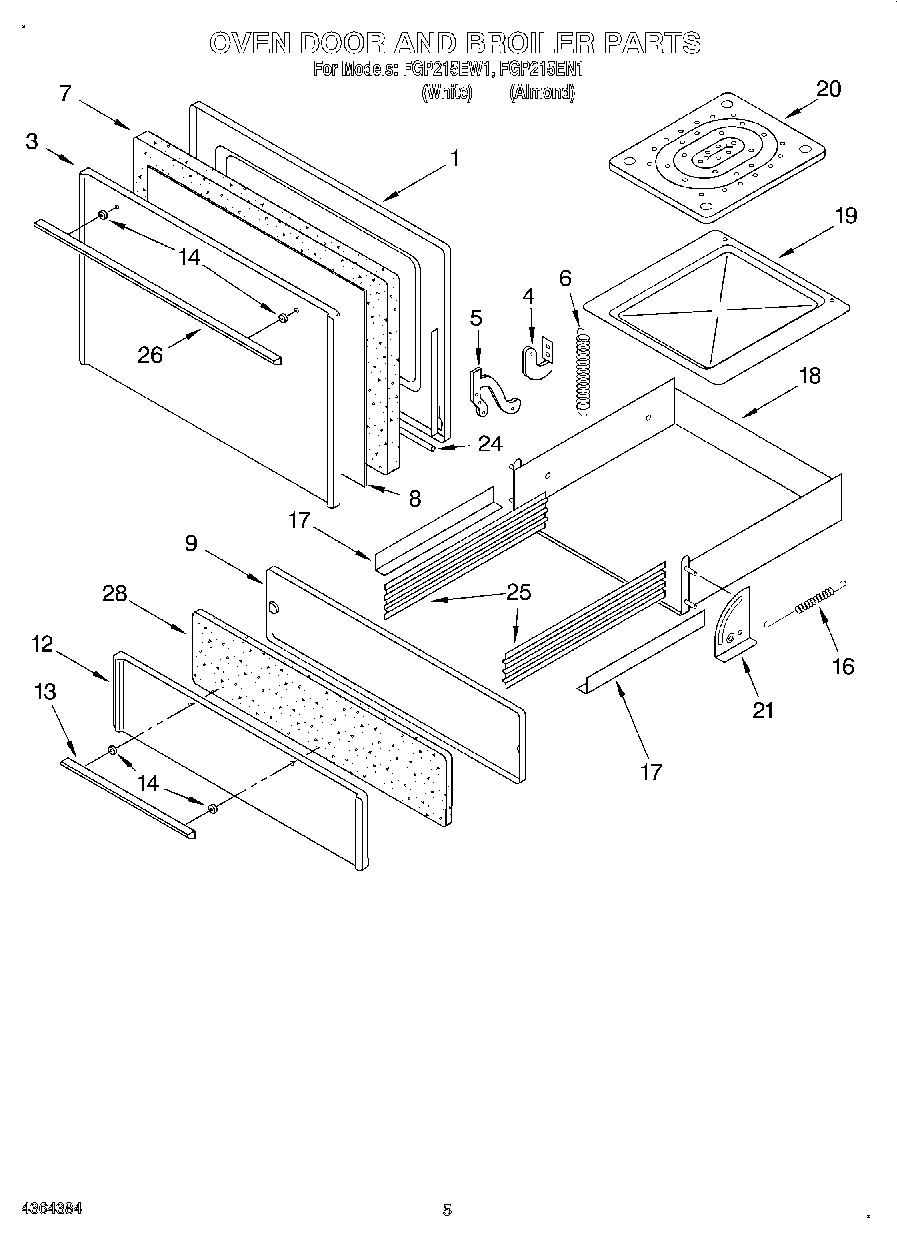

FGP215EW1 03 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
3	Panel, Oven Door (Almond)
3	Panel, Oven Door (White)
4	Bearing, Hinge (Right)
4	Bearing, Hinge (Left)
5	Hinge, Door (Left)
5	Hinge, Door (Right)
6	Spring, Door
7	Insulation, Door
8	Panel, Inner Door
9	Liner, Broiler Drawer
12	Panel, Broiler Door (White)
12	Panel, Broiler Door (Almond)
13	Handle, Drawer
14	Spacer, Handle
14	Screw, 10-24 x 3/8
16	Spring, Broiler
17	Broiler Drawer Runner (Left)
17	Broiler Drawer Runner (Right)
18	Liner, Broiler
19	Pan, Broiler
20	Grill, Broiler
21	WP488130 Whirlpool Air Conditioner Nut
21	Hinge, Broiler (Screw, 10-24 x 3/8)
21	Hinge, Broiler (Right)
21	Hinge, Broiler (Left)
24	Rod, Oven Door
25	Glide, Broiler Pan
26	Handle, Oven Door
28	Insulation, Broiler Drawer
