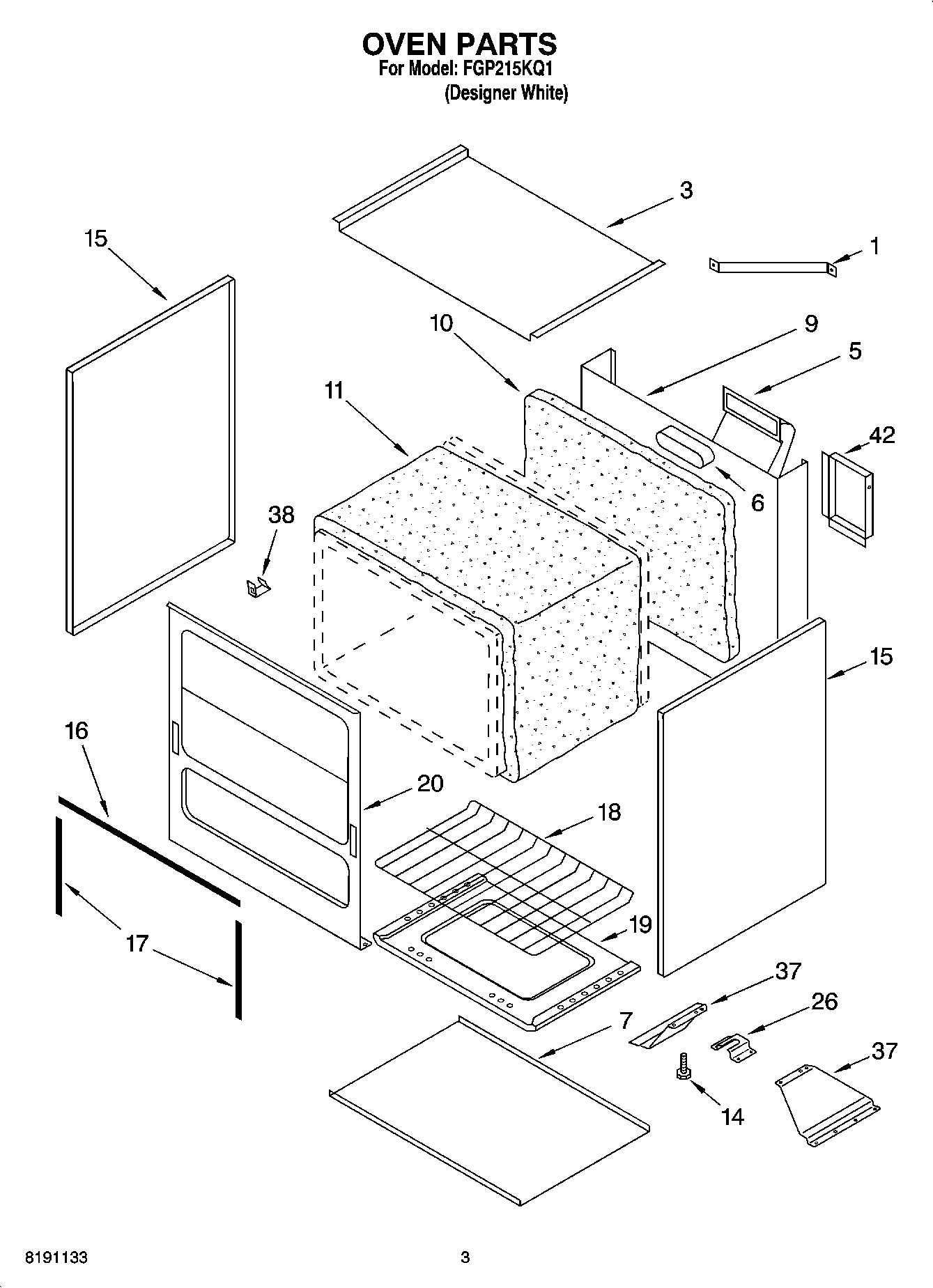

FGP215KQ1 02 – OVEN PARTS

Products

Position	Product
1	Brace, Back
3	Bottom, Burner Box
5	Flue Box
6	Ring, Flue Box
7	Bottom, Main
9	Main Back
10	Insulation, Back
11	Insulation, Wrap
14	LEG, LEVELER
15	Panel, Side (White)
16	Gasket, Oven Door Side
17	Gasket, Oven Side
18	Rack, Oven
19	Bottom, Oven
20	Frame, Front
26	8190785 Whirlpool Oven Bracket
37	Support, Side (Left)
37	Support, Side (Right)
38	CLIP, THERMOBULB
42	Thermostat Wire
42	Box, Power
42	Strain Relief
42	Wire Bushing
42	Power Cord
42	Following Parts Not Illustrated
