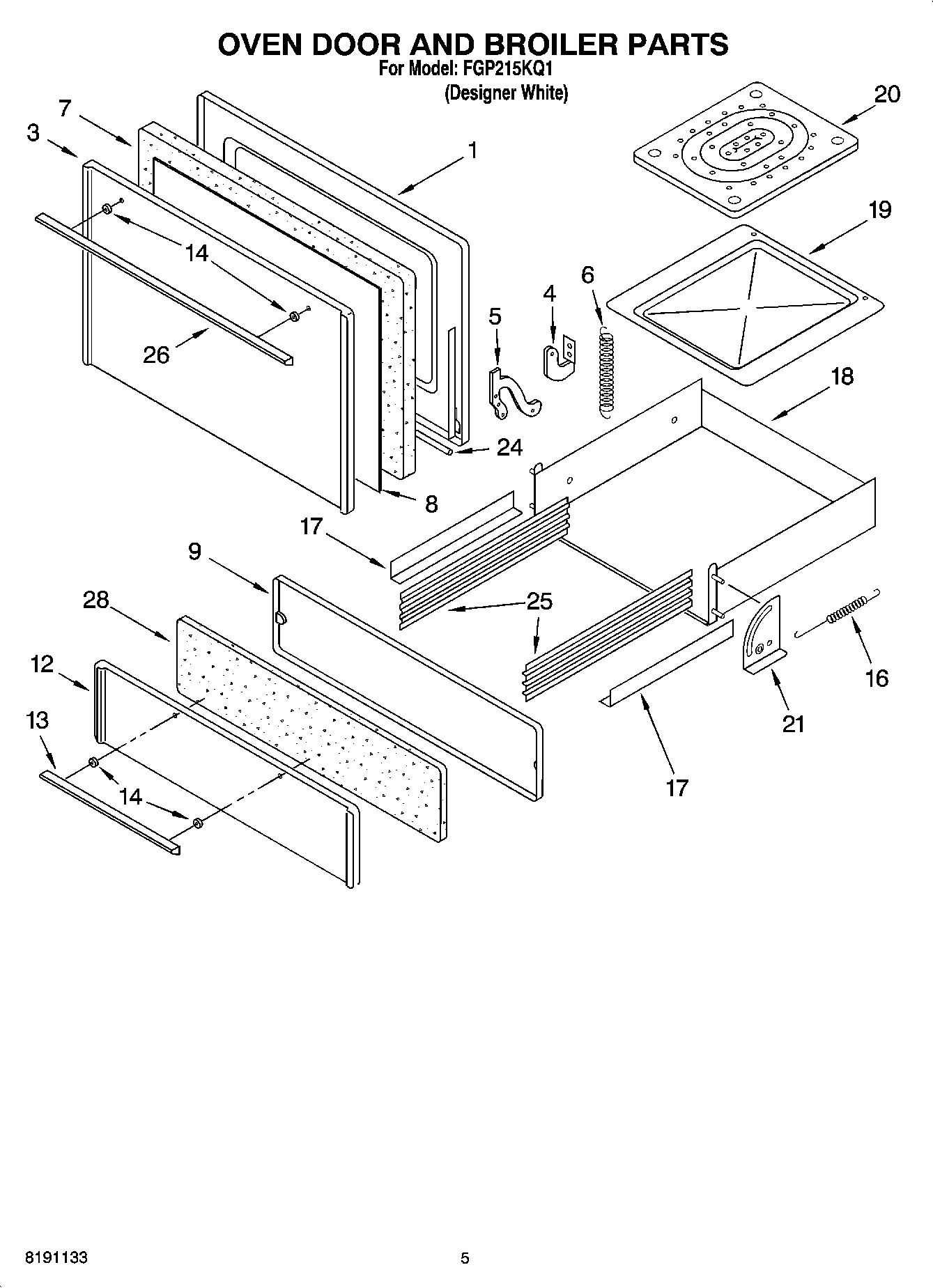

FGP215KQ1 03 – OVEN DOOR AND BROILER PARTS

FGP215KQ1 03 – OVEN DOOR AND BROILER PARTS

Written by

in

FGP215KQ1 03 – OVEN DOOR AND BROILER PARTS

Products

PositionProduct
1Liner, Door
3Panel, Oven Door (White)
4Bearing, Hinge (Right)
4Bearing, Hinge (Left)
5Hinge, Door (Left)
5Hinge, Door (Right)
6Spring, Door
7Insulation, Door
8Panel, Inner Door
9Liner, Broiler Drawer
12Panel, Broiler Door (White)
13White
14Spacer, Handle
14Screw, 10-24 x 3/8
16Spring, Broiler
17Broiler Drawer Runner (Left)
17Broiler Drawer Runner (Right)
18Liner, Broiler
19Pan, Broiler
20Grill, Broiler
21WP488130 Whirlpool Air Conditioner Nut
21Hinge, Broiler (Screw, 10-24 x 3/8)
21Hinge, Broiler (Right)
21Hinge, Broiler (Left)
24Rod, Oven Door
25Glide, Broiler Pan
26Handle, Oven Door
28Insulation, Broiler Drawer
