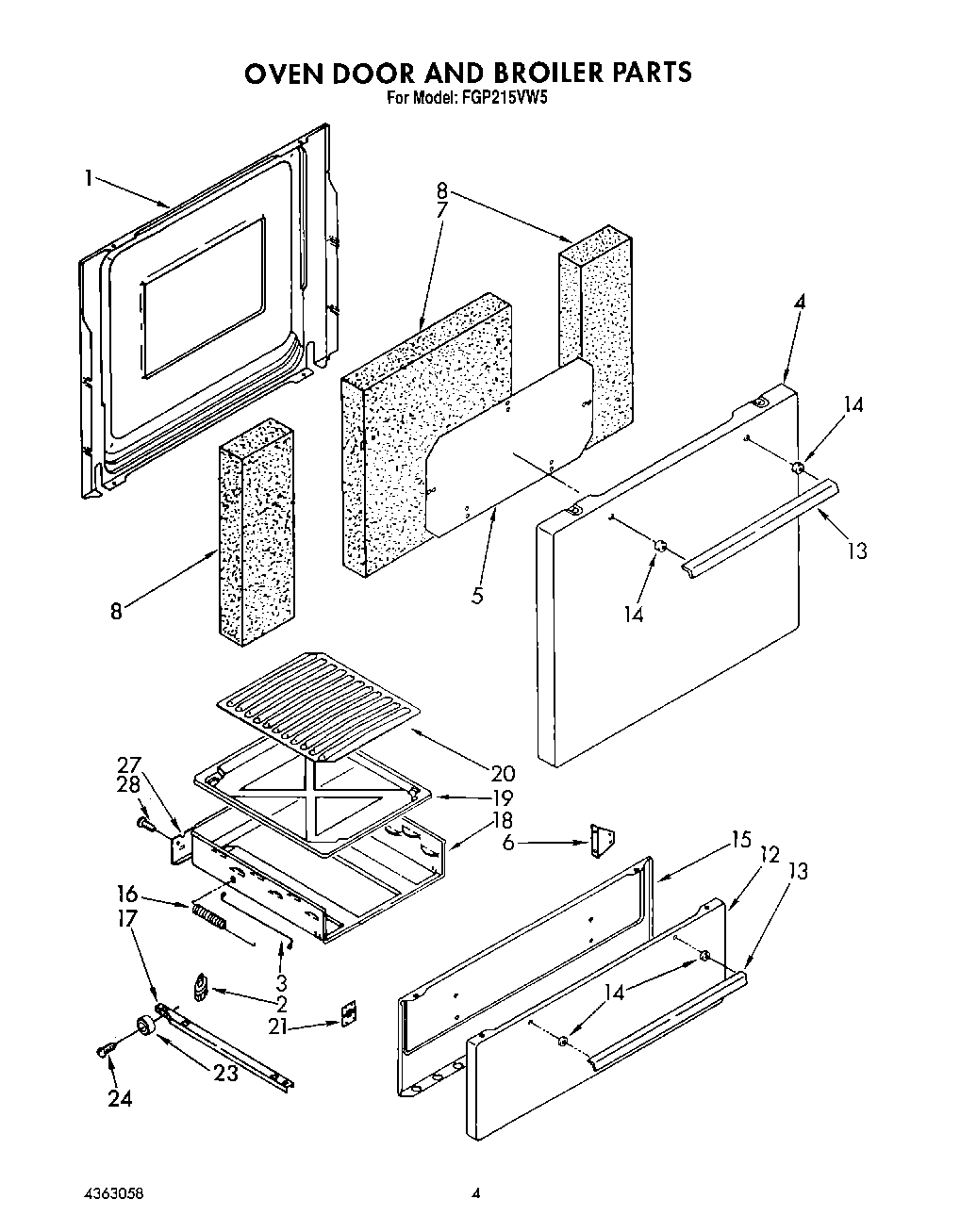

FGP215VL5 03 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
2	W10709871 Whirlpool Drawer Glide
3	Rod, Push-Pull
4	Panel, Oven Door (White)
4	Panel, Door (Almond)
5	SCREW
5	Baffle
6	Bracket
7	Insulation
8	Insulation
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Screw, 10-12 x 1/2 (4)
13	Washer (2)
13	Handle, Broiler Door
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Broiler (Right Hand)
17	Track, Broiler (Left Hand)
18	Carriage Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
21	W10080180 Whirlpool Nut
21	WP308685 Whirlpool Microwave Screw
23	Roller (2)
24	Roller Pin (2)
27	Backer, Carriage
28	Screws (3)
