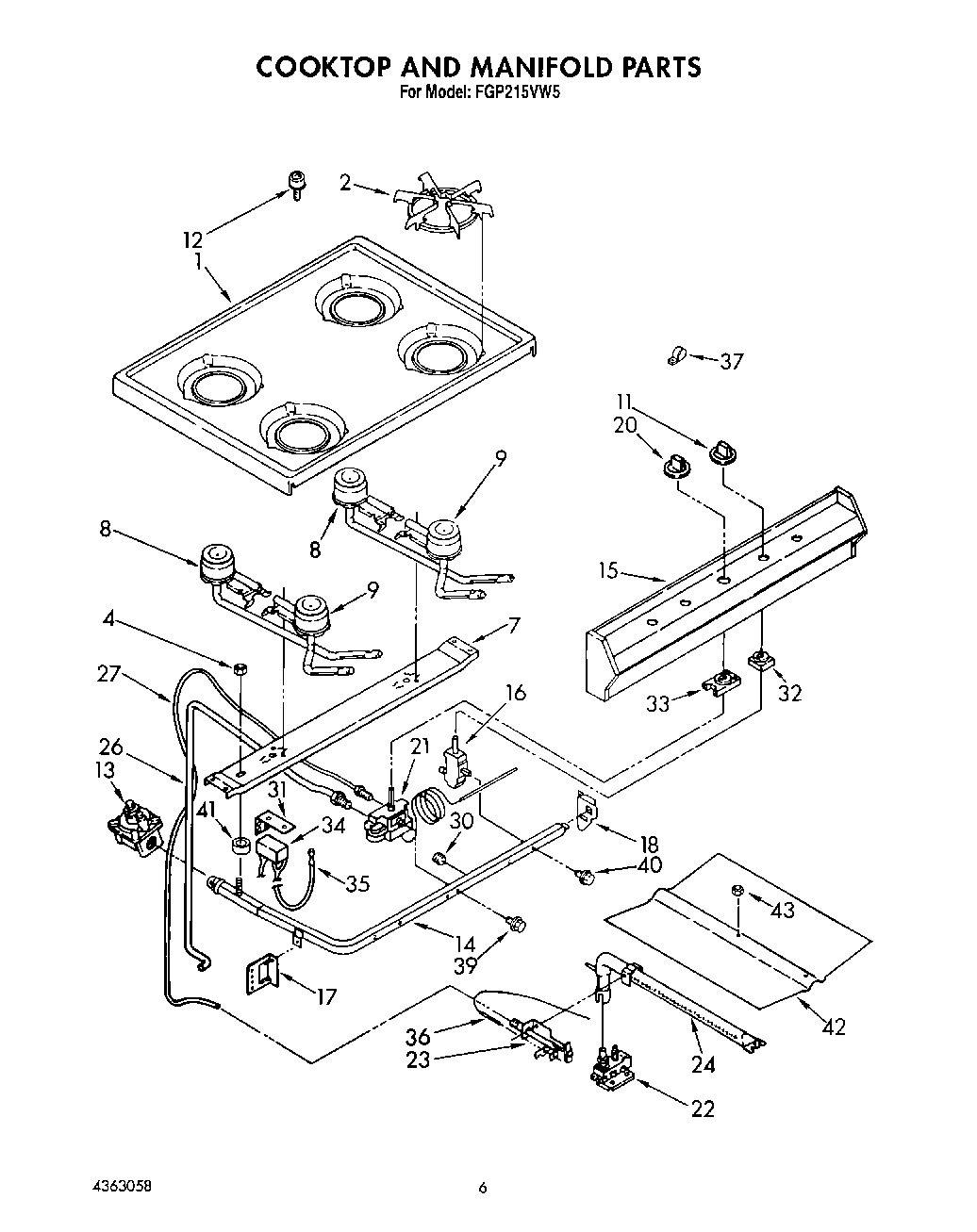

FGP215VL5 05 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	WPL LIT4363058
	Installation Instructions
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw, 10-12 X 3/8 (2)
11	Knob, Gas Valve
12	Locator stud (2)
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 30)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw, 10-24 X 1/4 (1)
23	Pilot
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
33	WP878009 Whirlpool Igniter Switch
34	Module, Spark
35	Ignitor (R.H.)
35	Ignitor (L.H.)
35	Ignitor (Screw, 8 X 1/2 (4))
36	Ignitor, Oven
37	Strain Relief
39	Bolt, Thermostat Mounting (2)
40	Bolt, Valve Mounting
41	Spacer, Manifold
42	Spreader, Flame
43	WPW10208653 Whirlpool Insulation
43	FOIL, ALUMINUM OVEN (18“ X 25 )
43	W10080180 Whirlpool Nut
