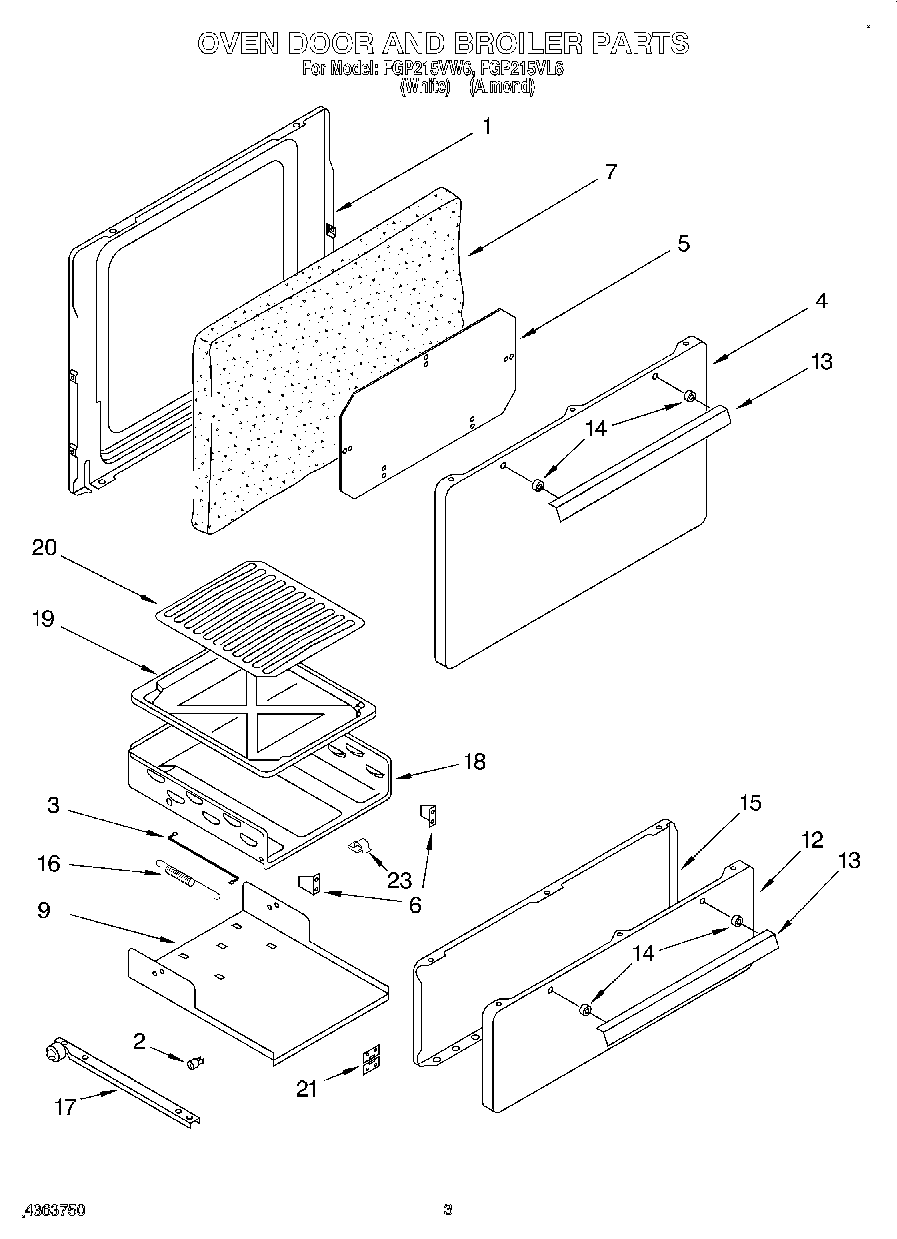

FGP215VL6 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
2	W10709871 Whirlpool Drawer Glide
3	Rod, Push-Pull
4	Panel, Door (Almond)
4	Panel, Door (White)
5	Baffle
6	Bracket
7	Insulation
9	Carriage Broiler
12	Panel, Broiler (Screw)
12	Panel, Broiler (Almond)
12	Panel, Broiler (White)
13	Screw
13	Handle, Broiler Door
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Track, Broiler (Left Hand)
17	Track, Broiler (Right Hand)
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
21	WP308685 Whirlpool Microwave Screw
23	Clip, Broiler
