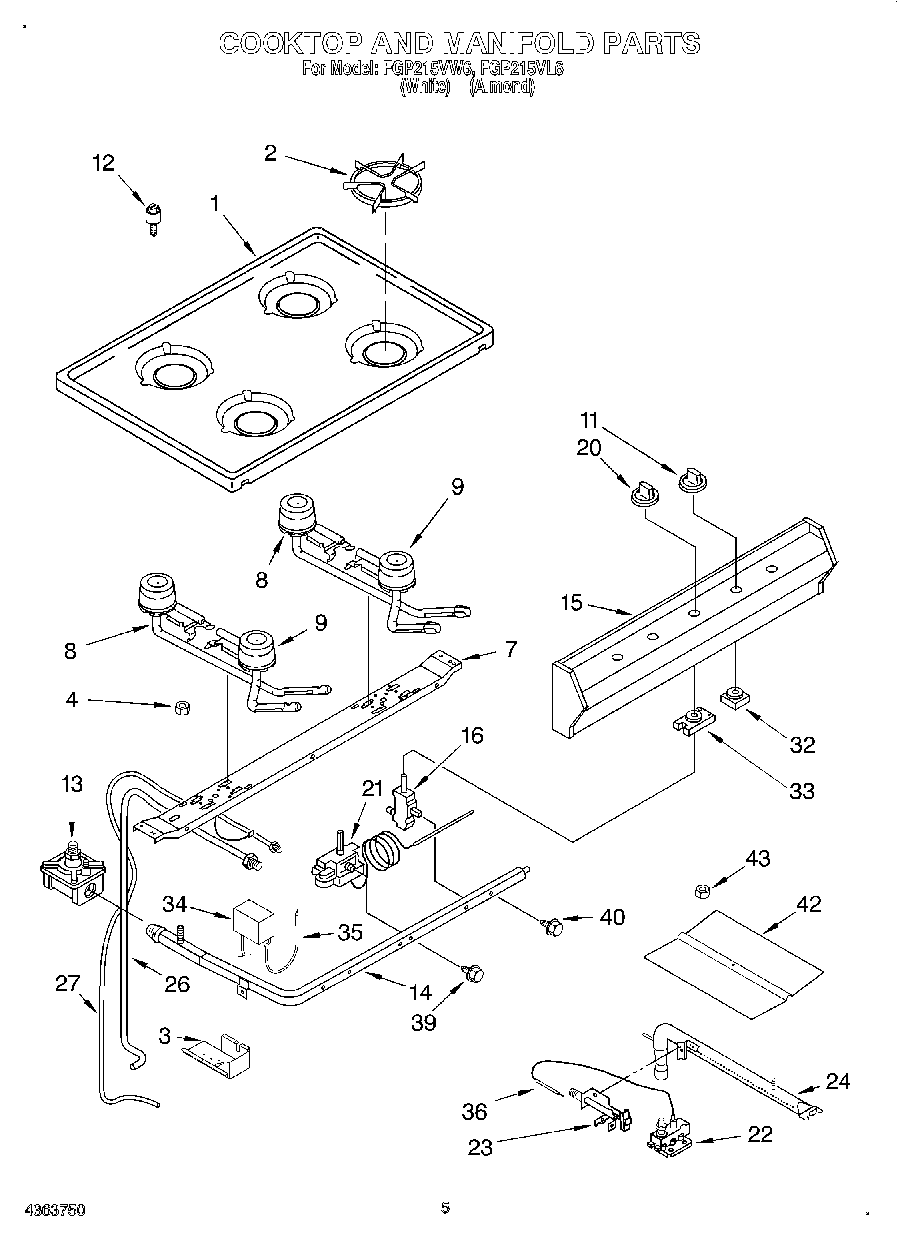

FGP215VL6 03 – COOKTOP AND MANIFOLD, LITERATURE

Products

Position	Product
	Use & Care Guide
	Diagram, Wiring
	Installation Instructions
1	Top, Main (White)
1	Top, Main (Almond)
2	Grate (4)
3	Cover, Spark Module
3	WP308685 Whirlpool Microwave Screw
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
11	Knob, Gas Valve
12	Speed Clip (4)
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 30)
22	Valve, Safety
23	Screw, Thermostat Mounting (2)
23	Pilot
24	Screw
24	Burner, Oven
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
32	WP4157180 Whirlpool Surface Burner Ignition Switch
33	WP878009 Whirlpool Igniter Switch
34	Module, Spark
35	Ignitor (R.H.)
35	Screw
35	Ignitor (R.H.)
36	Ignitor, Oven
39	Bolt, Thermostat Mounting (2)
40	Bolt, Valve Mounting
42	Spreader, Flame
43	WPW10208653 Whirlpool Insulation
43	FOIL, ALUMINUM OVEN (18“ X 25 )
43	W10080180 Whirlpool Nut
