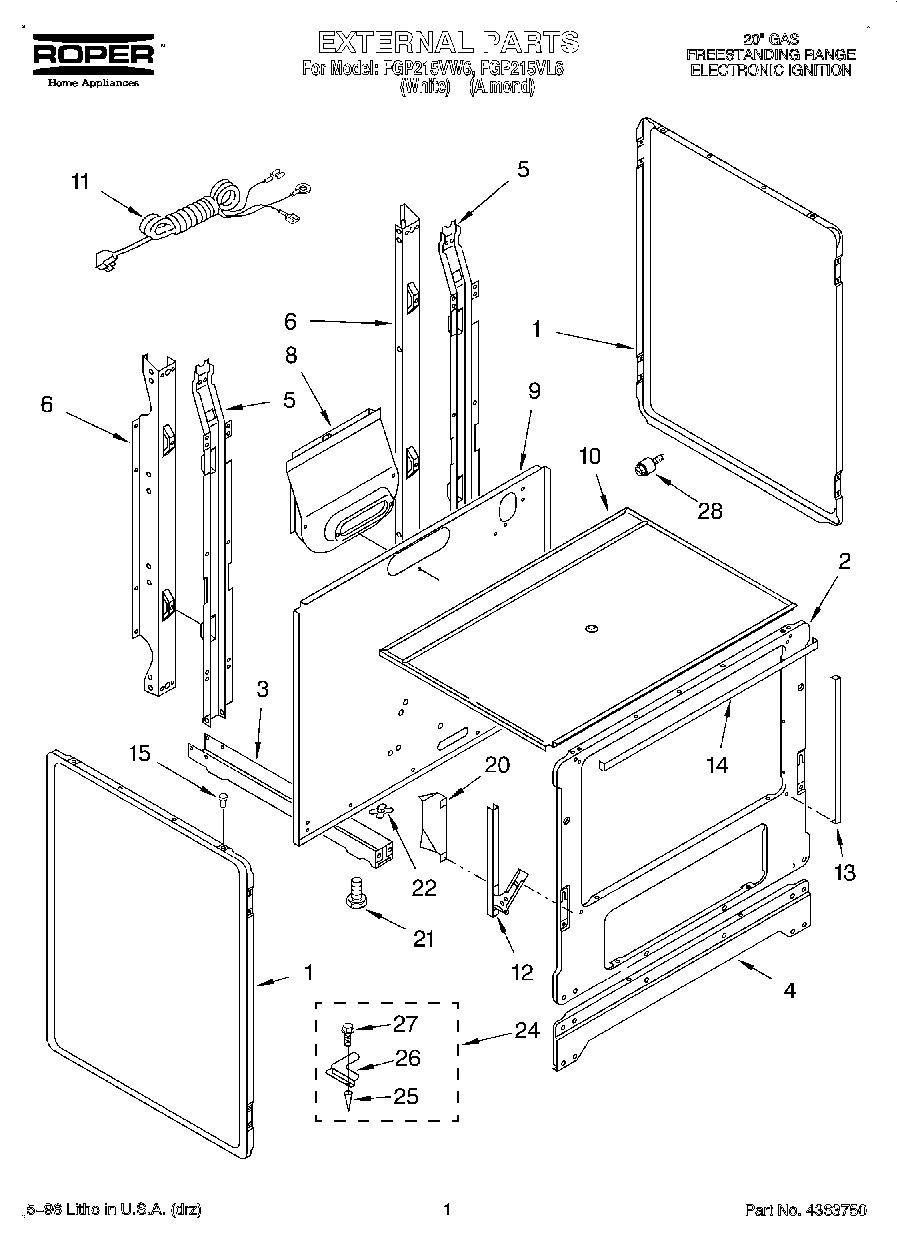

FGP215VW6 01 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (Almond)
1	Panel, Side (2) (White)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
5	Support, Main (2)
6	Support, Rear (2)
8	Box, Flue
9	Panel, Rear
9	Screw
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
11	Screw, 10-32 X 1/2 (1)
11	Cord, Power
12	Screw
12	Screw
12	Hinge, Door
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
20	Shield, Insulation
21	Leg, Leveler
22	Nut (4)
24	Anti-Tip Kit
25	Anchor
26	Bracket
27	Screw
28	Locator stud (2)
28	Stud Screw (2)
