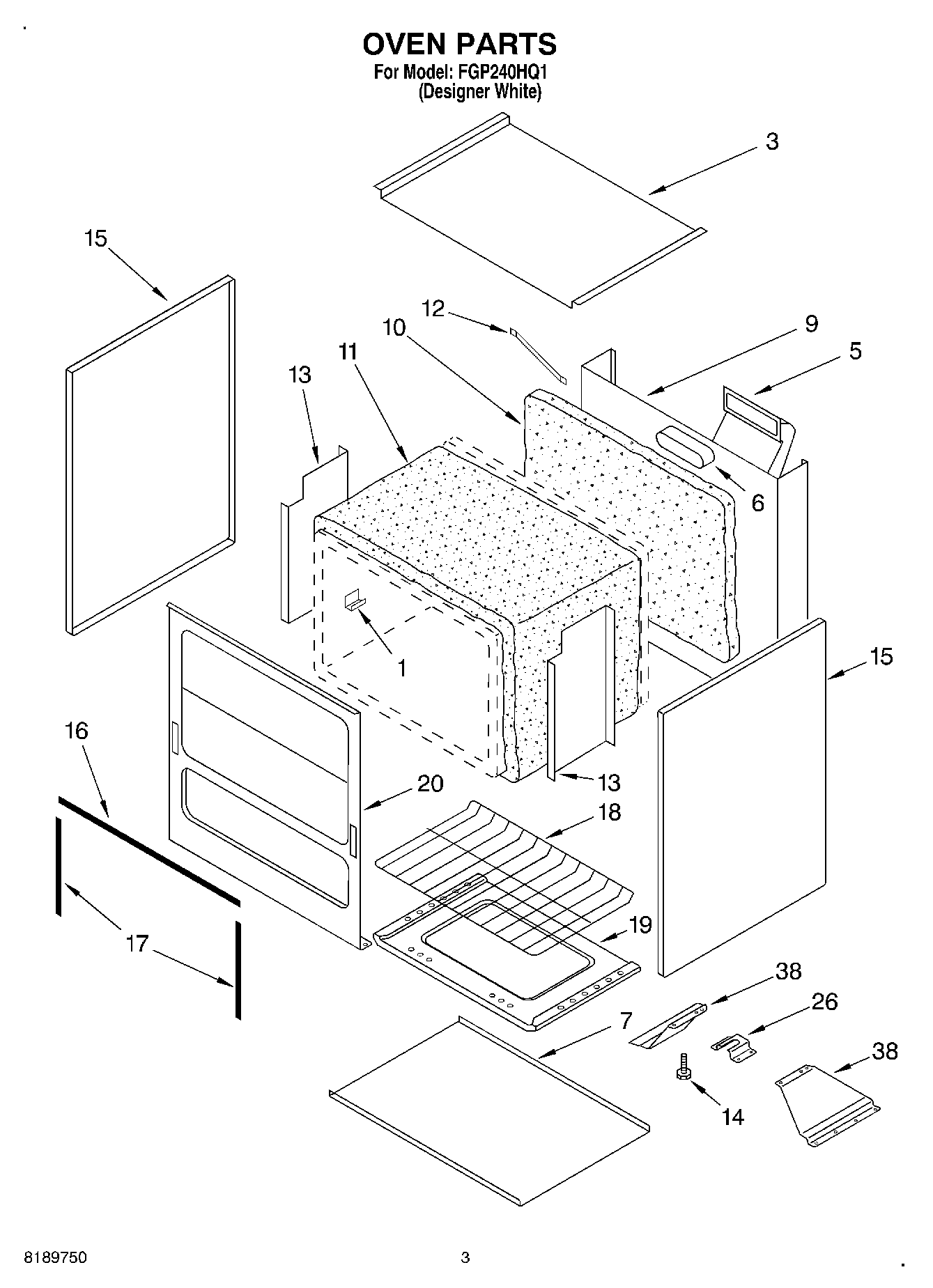

FGP240HQ1 02 – OVEN

FGP240HQ1 02 – OVEN

Written by

in

FGP240HQ1 02 – OVEN

Products

Position	Product
1	CLIP, THERMOBULB
3	Bottom, Burner Box
5	Flue Box
6	Ring, Flue Box
7	Bottom, Main
9	Back, Main
10	Insulation, Bottom
11	Insulation, Wrap
12	Brace, Back
13	Baffle, Heat
14	LEG, LEVELER
15	Panel, Side (White)
16	Gasket, Oven Top
17	Gasket, Oven Side
18	Rack, Oven
19	Bottom, Oven
20	Frame, Front
26	8190785 Whirlpool Oven Bracket
38	Support, Side (Right)
38	Support, Side (Left)
