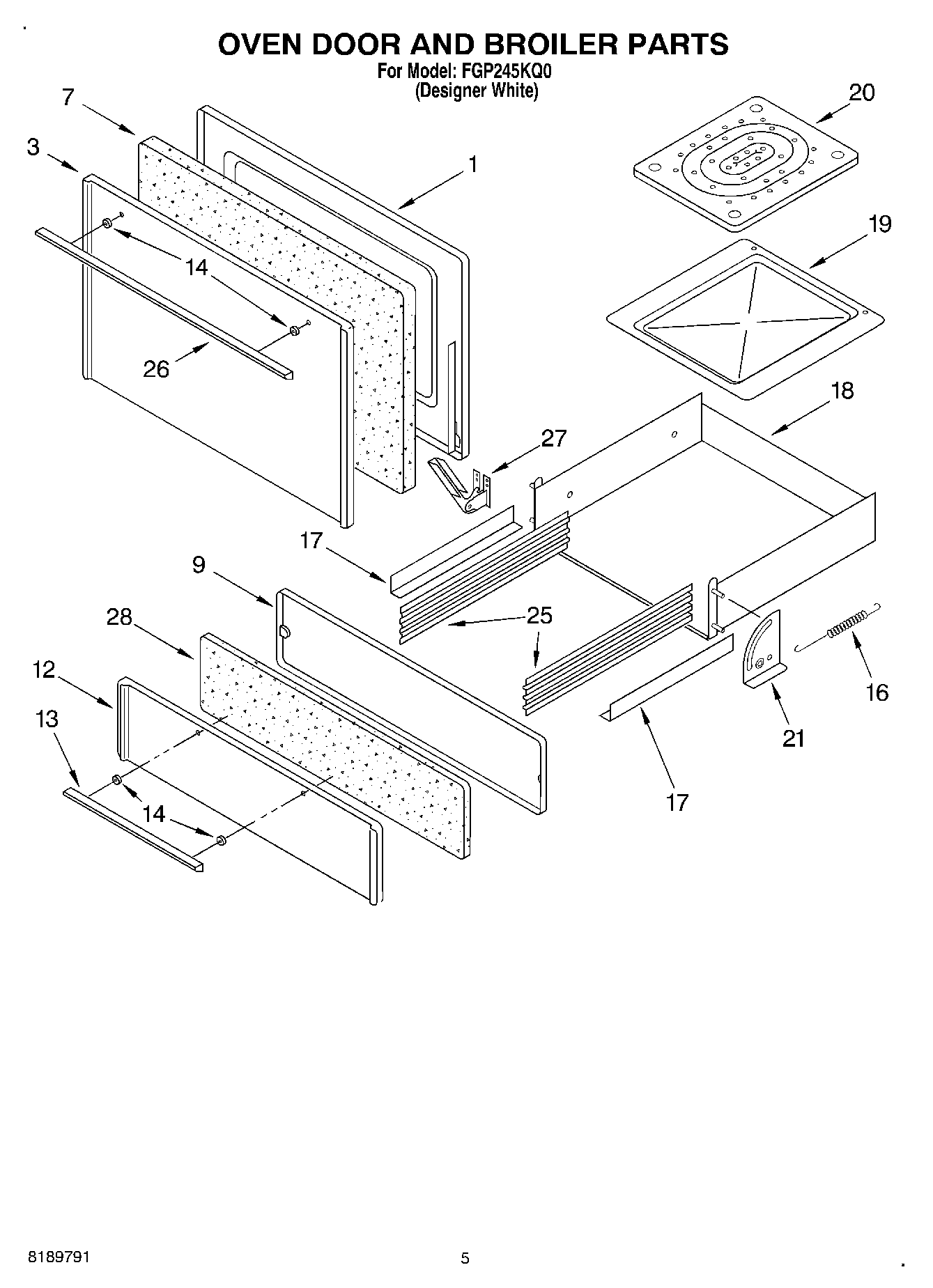

FGP245KQ0 03 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
3	Panel, Oven Door (White)
7	Insulation, Door
9	Liner, Brlr Drawer
12	Panel, Broiler Door (White)
13	White
14	Screw, 10-24 x 3/8
14	Spacer, Handle
16	Spring, Broiler
17	Broiler Drawer Runner (Right)
17	Broiler Drawer Runner (Left)
18	Liner, Broiler
19	Broiler Pan
20	Grill, Broiler
21	Hinge, Broiler (Screw, 10-24 x 3/8)
21	Hinge, Broiler (Right)
21	Hinge, Broiler (Left)
21	WP488130 Whirlpool Air Conditioner Nut
25	Glide, Broiler Pan
26	Handle, Oven Door
27	Hinge, Oven Door
28	Insulation, Broiler Drawer

No products found
