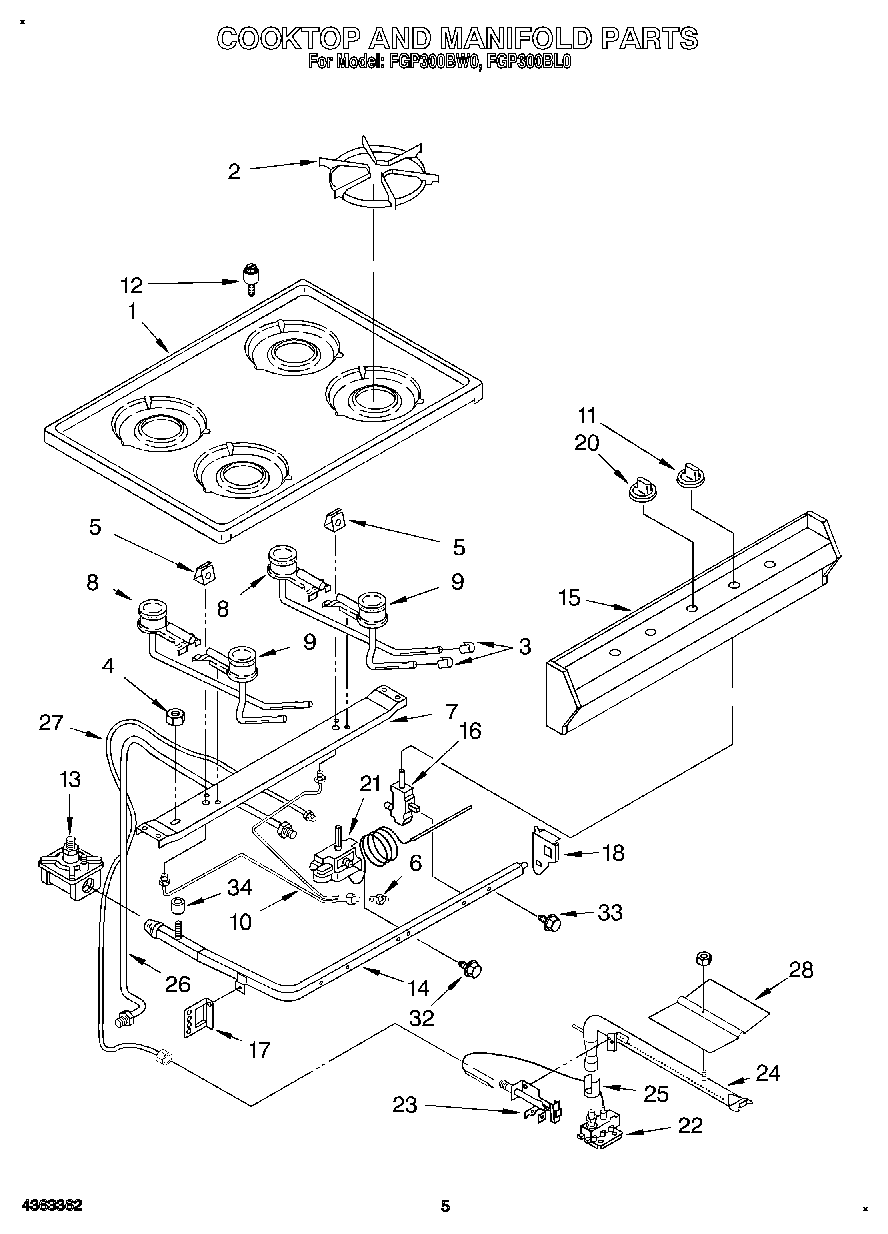

FGP300BL0 03 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	Installation Instructions
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Screw, 10-12 X 3/8 (2)
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw
10	Tubing, Pilot (Incl. No. 6)
11	Knob, Gas Valve
12	Speed Clip (4)
12	Locator Stud (2)
13	Regulator, Pressure
14	WP308685 Whirlpool Microwave Screw
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 32)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Screw
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Spreader, Flame
32	Bolt, Thermostat Mounting (2)
33	Bolt, Valve Mounting
34	FOIL, ALUMINUM OVEN (18“ X 25 )
34	Spacer, Manifold
34	WPW10208653 Whirlpool Insulation
